Bachelor Project — VIA University College — 2025
7 days  ·  52 weeks
A WAY OF LIFE
Triathlon · Trail Running · Road Running Cycling · Mountaineering Thermal mapping · Athlete interviews · ISO fabric testing
Open Lookbook
Hiking Open →
Triathlon Open →
Swimming Open →
Running Open →
Cycling Open →
Brand & Logo System
752 wordmark
The Concept

The name encodes a complete year of movement — 7 days, 52 weeks. The garments are tools that disappear into the body and let the athlete focus on the work.

Research Question
How can body-heat maps guide fabric placement in high-performance garments?
Sports Covered
Triathlon · Trail Running · Road Running · Cycling · Mountaineering
Designer
Fynn Erik Dose — VIA University College 2024
36° grid construction
Construction & Grid

The 752 wordmark is built on a strict 36-degree geometric grid — every cut, curve and corner is the same angle. Sport-specific sub-marks are derived from cutout fragments of the main logo, each referencing a physical movement from the discipline.

Hiking logo
Hiking / Mountaineering

The mountain sub-mark is derived from the upper-left cutout of the 752 wordmark, echoing the angular silhouette of a peak. Used across the H SX and M HX product lines.

Product Lines
H SX — Hiking · M HX — Mountaineering
Triathlon logo
Triathlon

The triathlon mark references forward motion — the lean of a swimmer, the tuck of a cyclist, the stride of a runner — compressed into a single angular fragment of the wordmark.

Product Line
T RC — Race Competition Series
Swim logo
Swimming

The swim mark is cut from the lower arc of the 752 letterform — fluid, low-drag, referencing the hydrodynamic profile of an open-water swimmer.

Product Lines
S OW — Open Water · S HY — Hybrid
Running logo
Running

The running sub-mark takes the vertical strokes of the wordmark and angles them forward — capturing the forward lean and heel-to-toe energy transfer of the running gait.

Product Lines
R TR — Trail · R R — Road
Cycling logo
Cycling

The bike mark references the tucked aero position — the widest horizontal cut from the 752, stretched and angled to suggest speed and aerodynamic efficiency.

Product Line
B AE — Aero Series
Real Life Tests
320W on Zwift — 3 sessions. Sweat removed before capture. 22°C indoor.

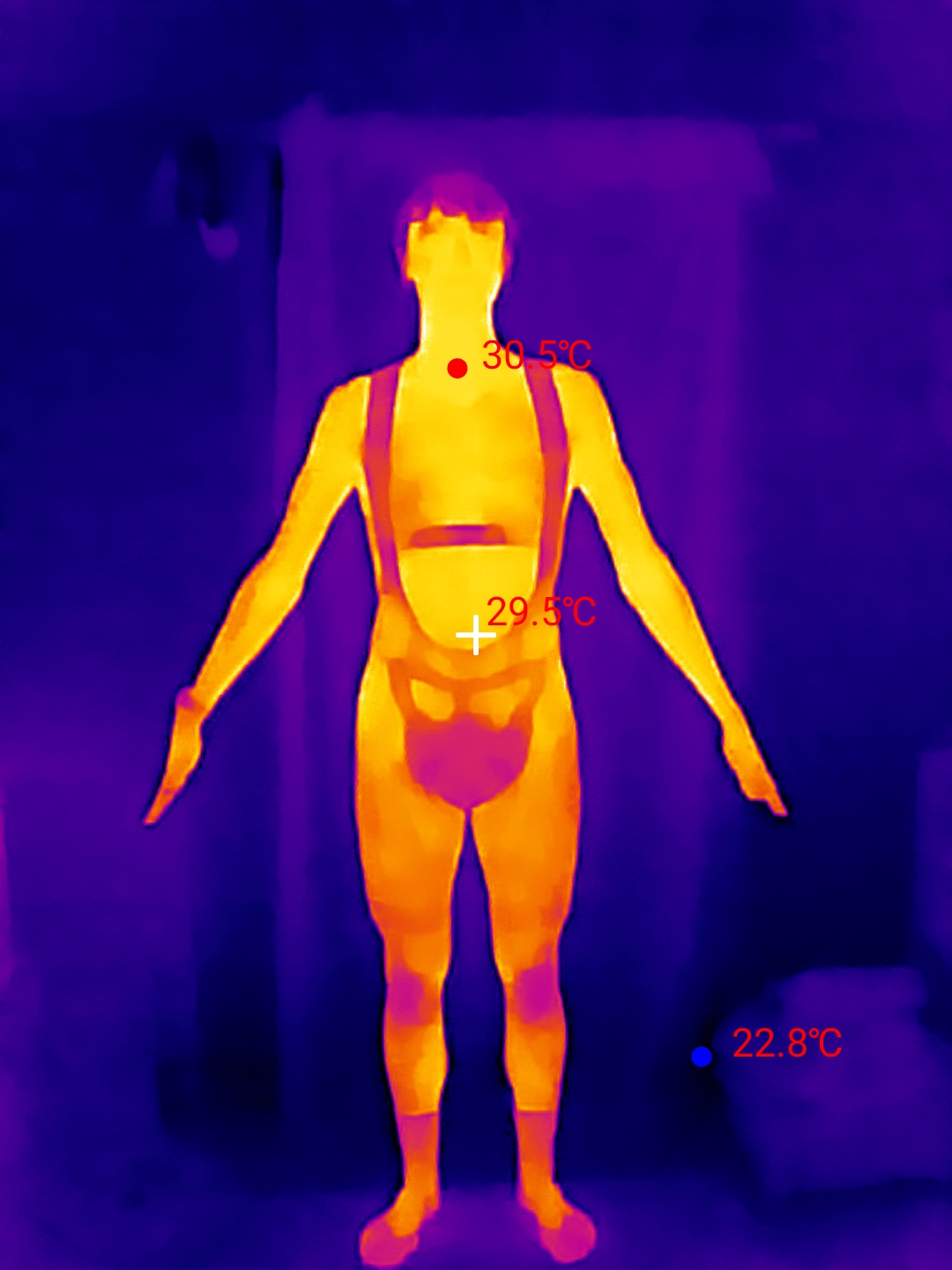

Before30.5°C core
Before cycling
After38.5°C peak
After cycling
Upper back
Hottest — no airflow against jersey
Glutes / lower back
Saddle contact and constant position
Inner thighs
Heat + friction = reinforcement priority
Chest
Cooler — wind exposure while riding
4:00/km pace — 3 sessions. Same protocol, 22°C indoor.

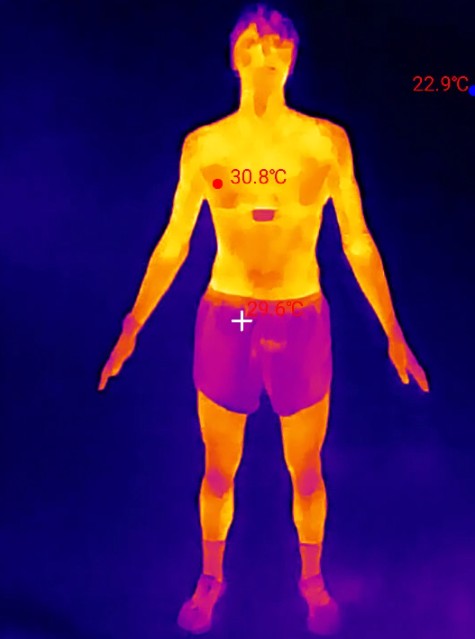

Before30.8°C chest
Before running

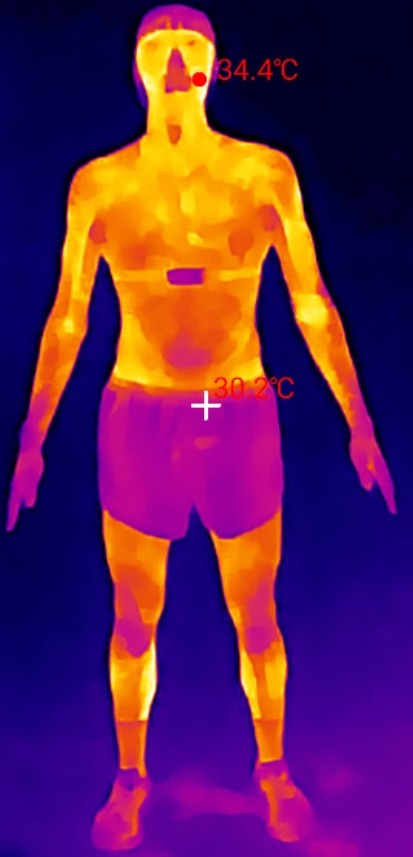

After34.4°C forehead
After running
Forehead / neck
Peak — highest sweat gland density
Chest
Upright = no wind on front panel
Upper thighs
High activation, limited airflow
Fingers
Cold — reduced peripheral flow
Key insight: cycling and running heat opposing zones. A tri suit must manage upper-back heat on the bike, then shift to chest and neck on the run — in one garment.
Six fabrics tested: MVTR cup (upright + inverted), spray test, tear strength, pilling, drying rate. ISO 11092 & ISO 13937.
CodeTypeWeightPropertiesUsed for
F01Ripstop Nylon27 g/m²Breathable, windproofLight shell
F02Ripstop Nylon40 g/m²Breathable, windproofOuter panels
F03Nylon Taffeta38 g/m²Breathable, windproofLining
F043-layer N-Shell160 g/m²Waterproof, breathable, elasticJacket body
F053-layer mini-ripstop170 g/m²Waterproof, inelasticJacket yoke
F063-layer taffeta171 g/m²Waterproof, inelasticHiking pants

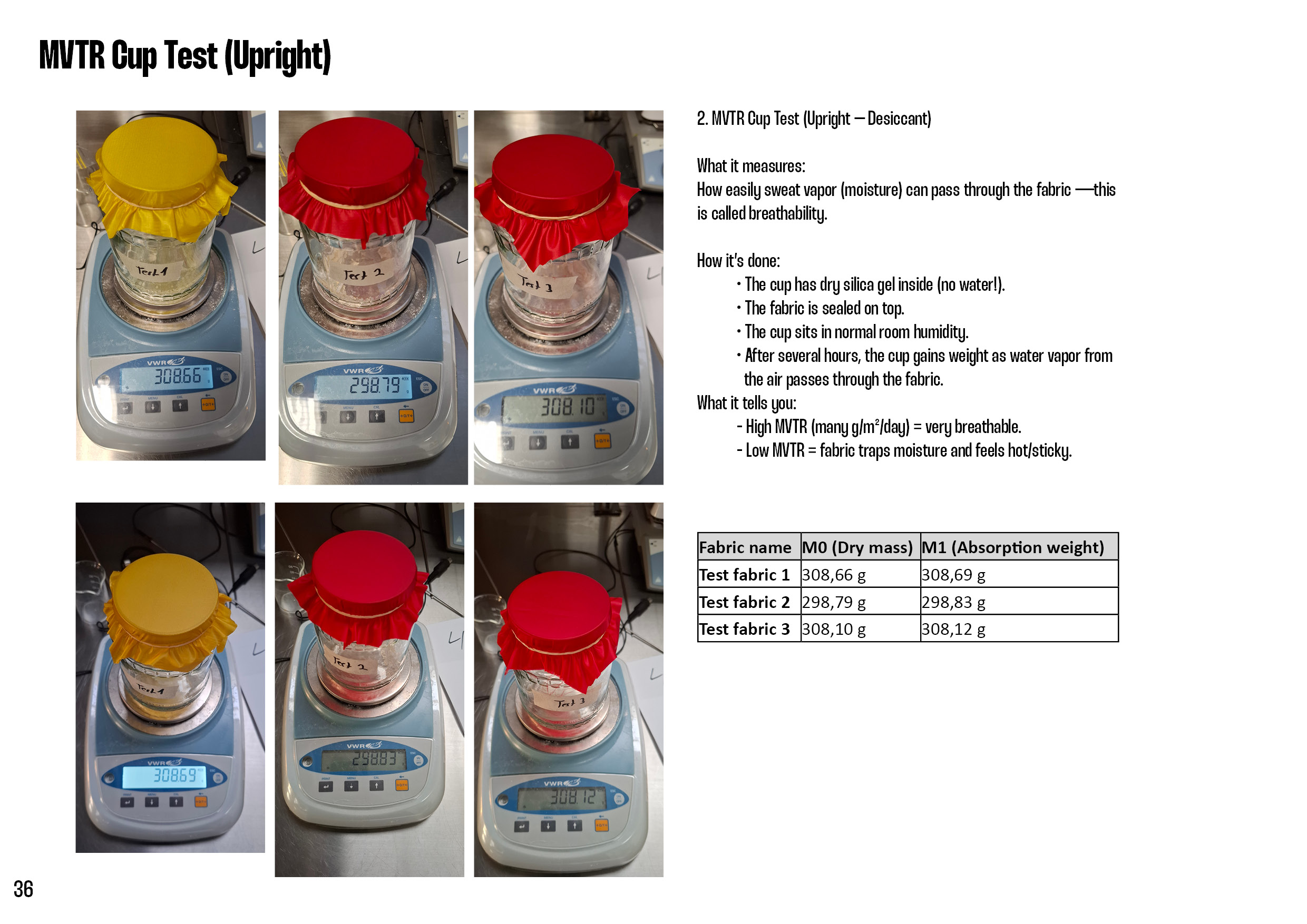

MVTR — Upright
MVTR upright

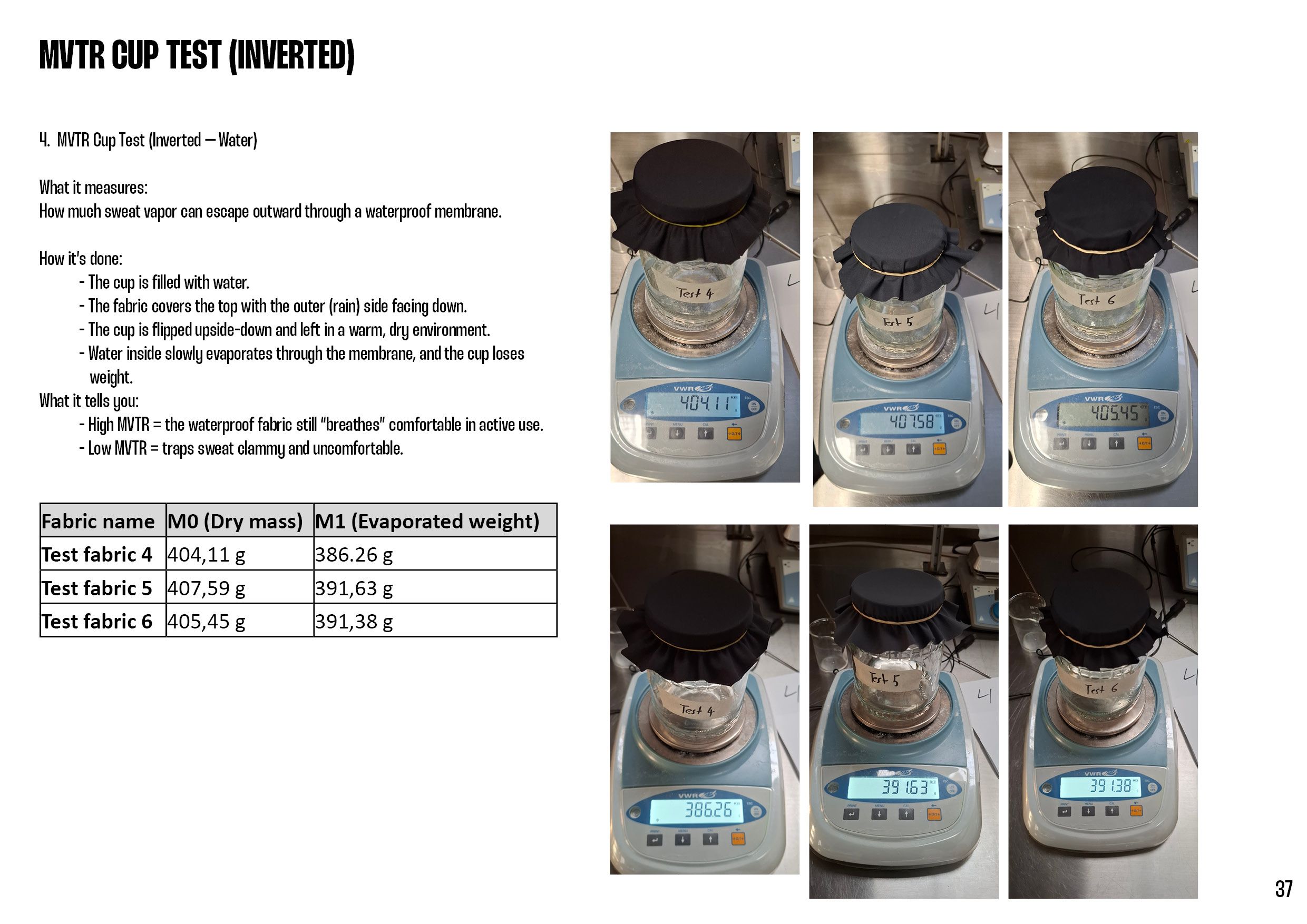

MVTR — Inverted
MVTR inverted
Mountain
Mountaineering · Hiking — H SX / M HX

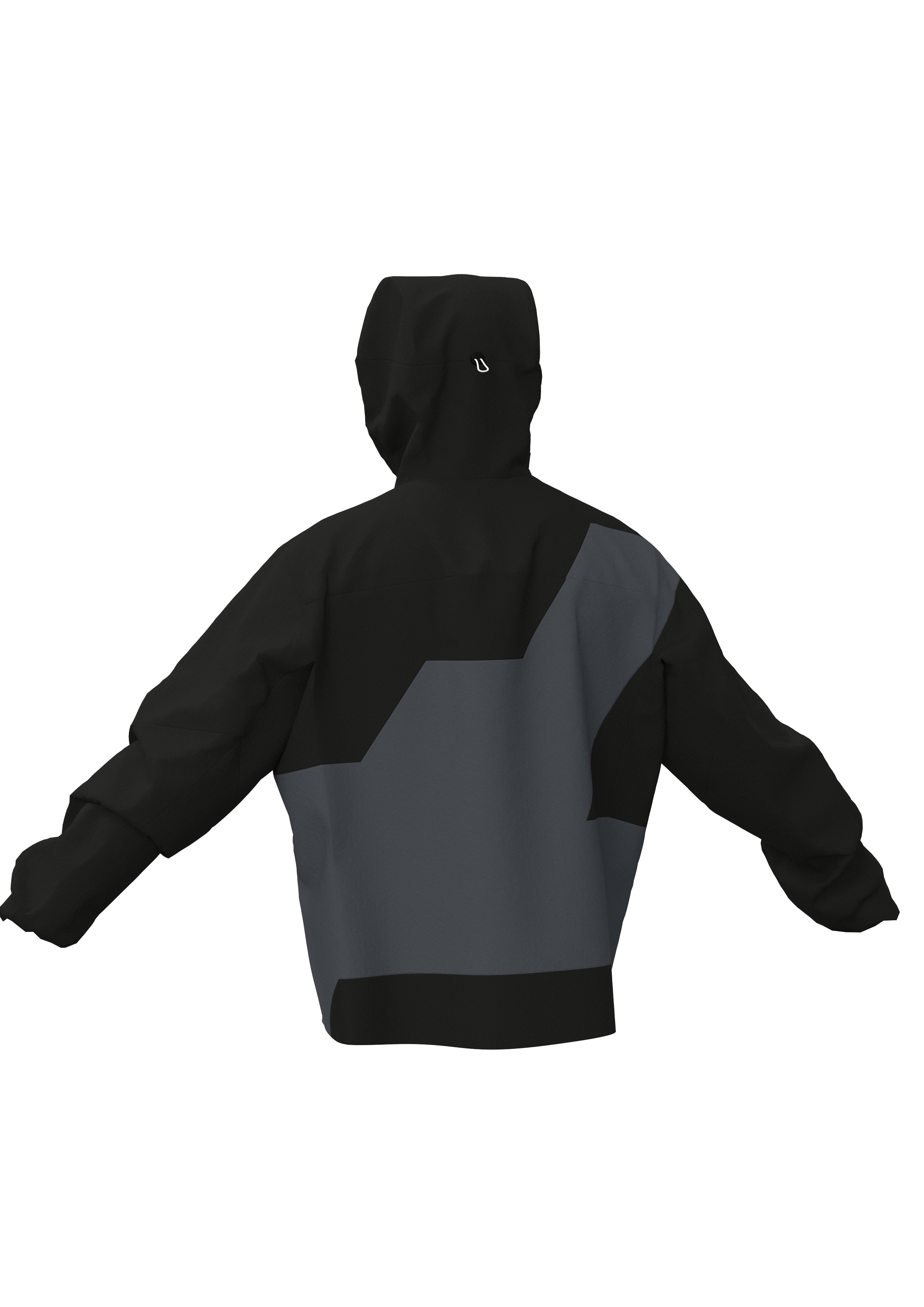

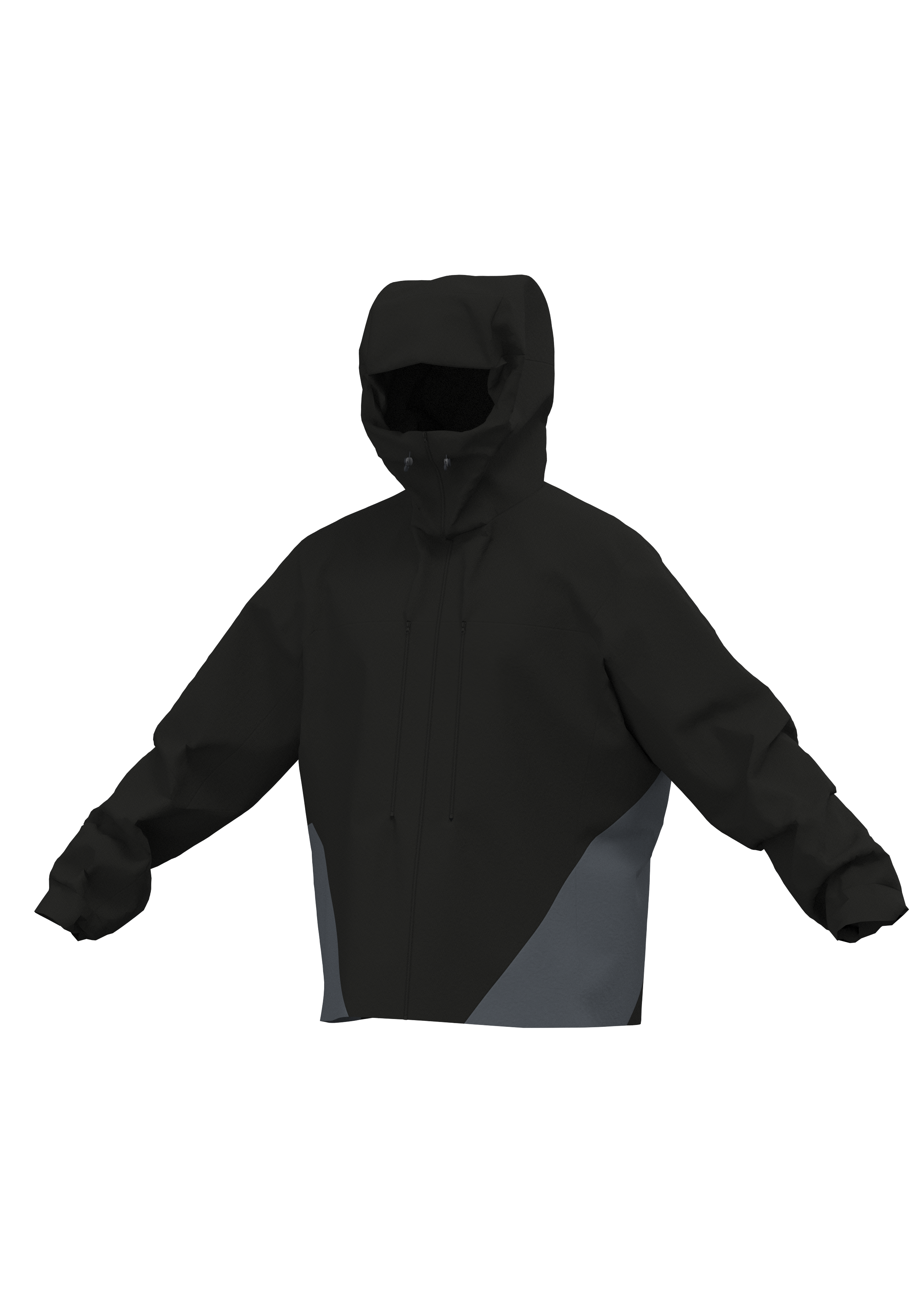

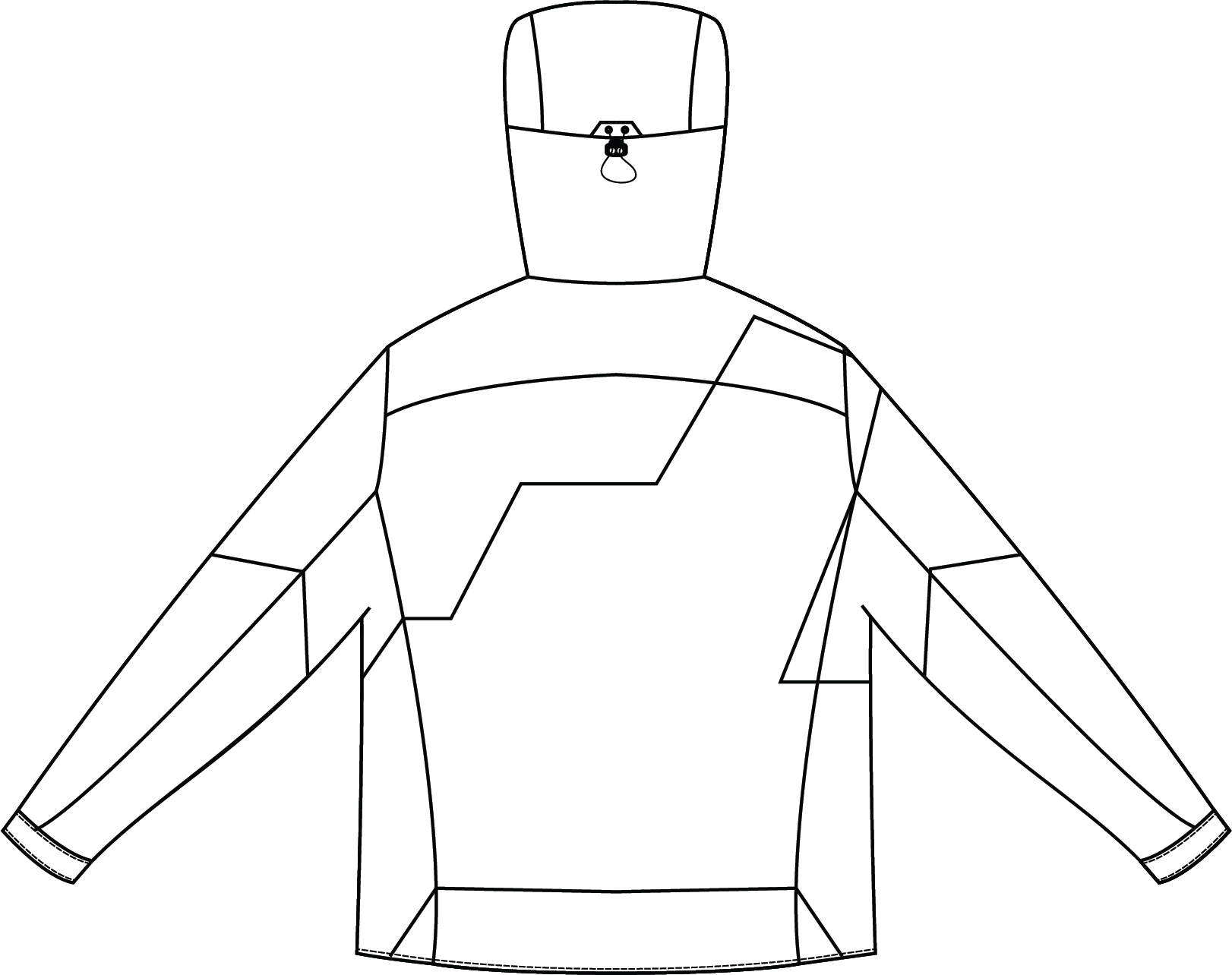

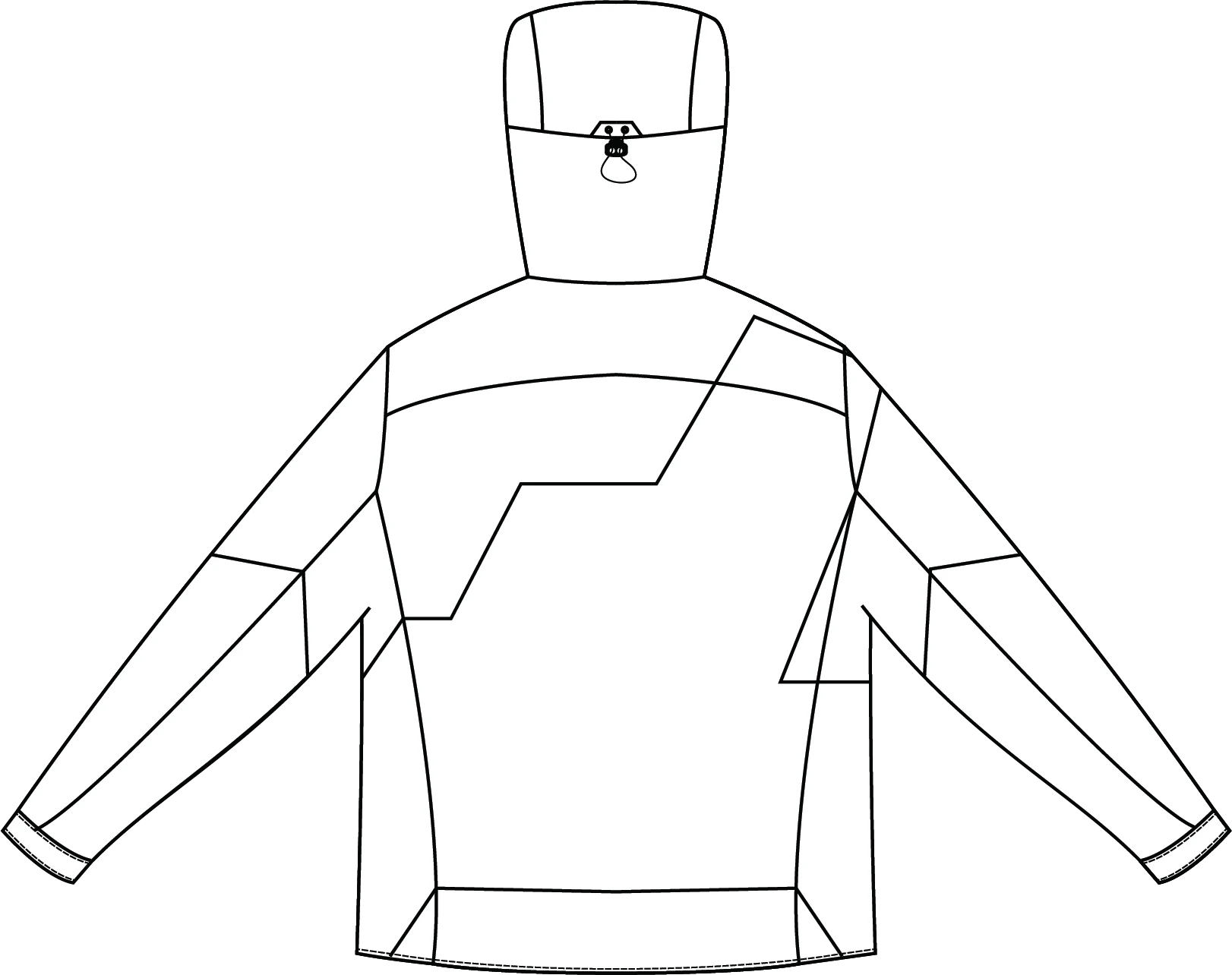

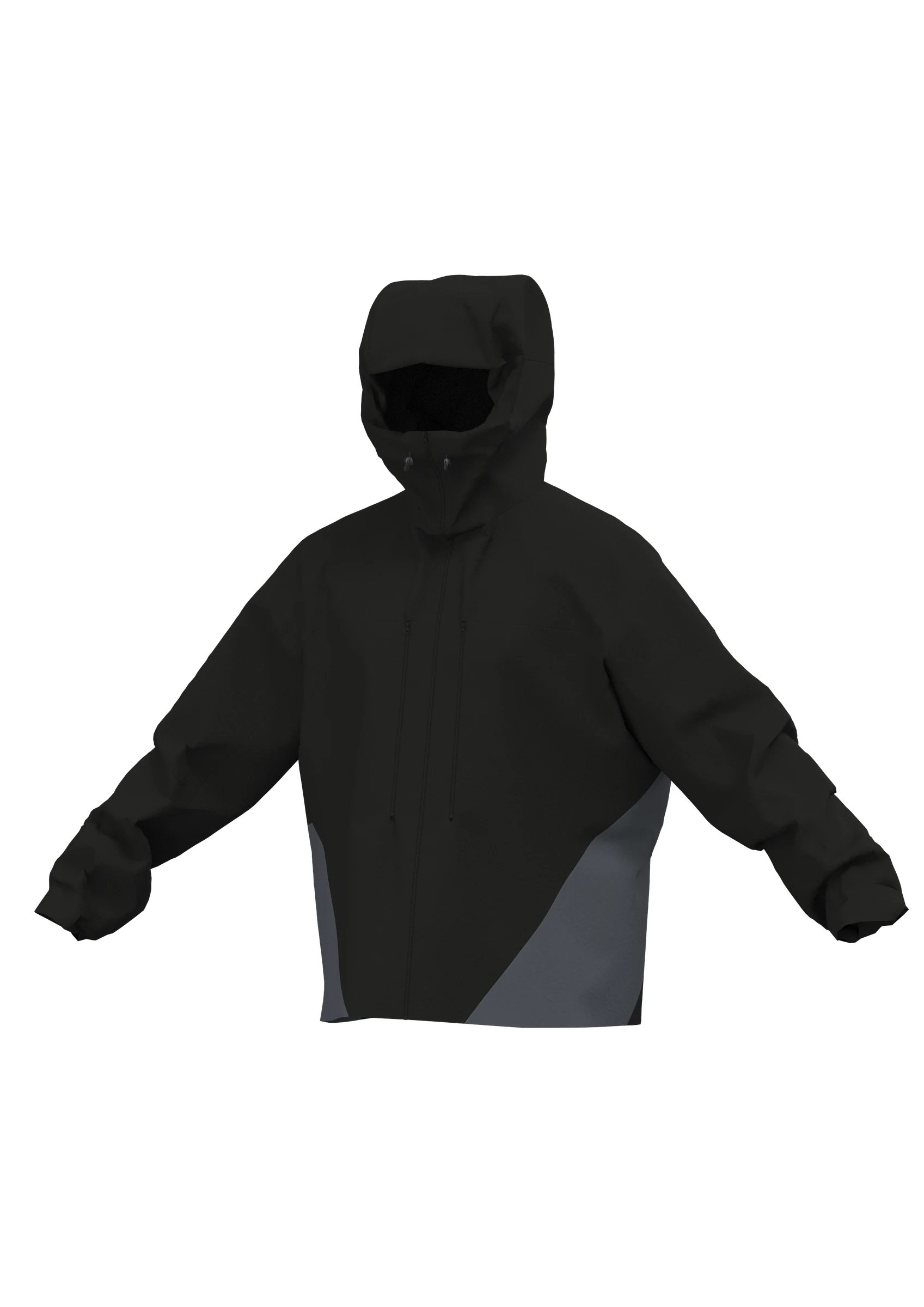

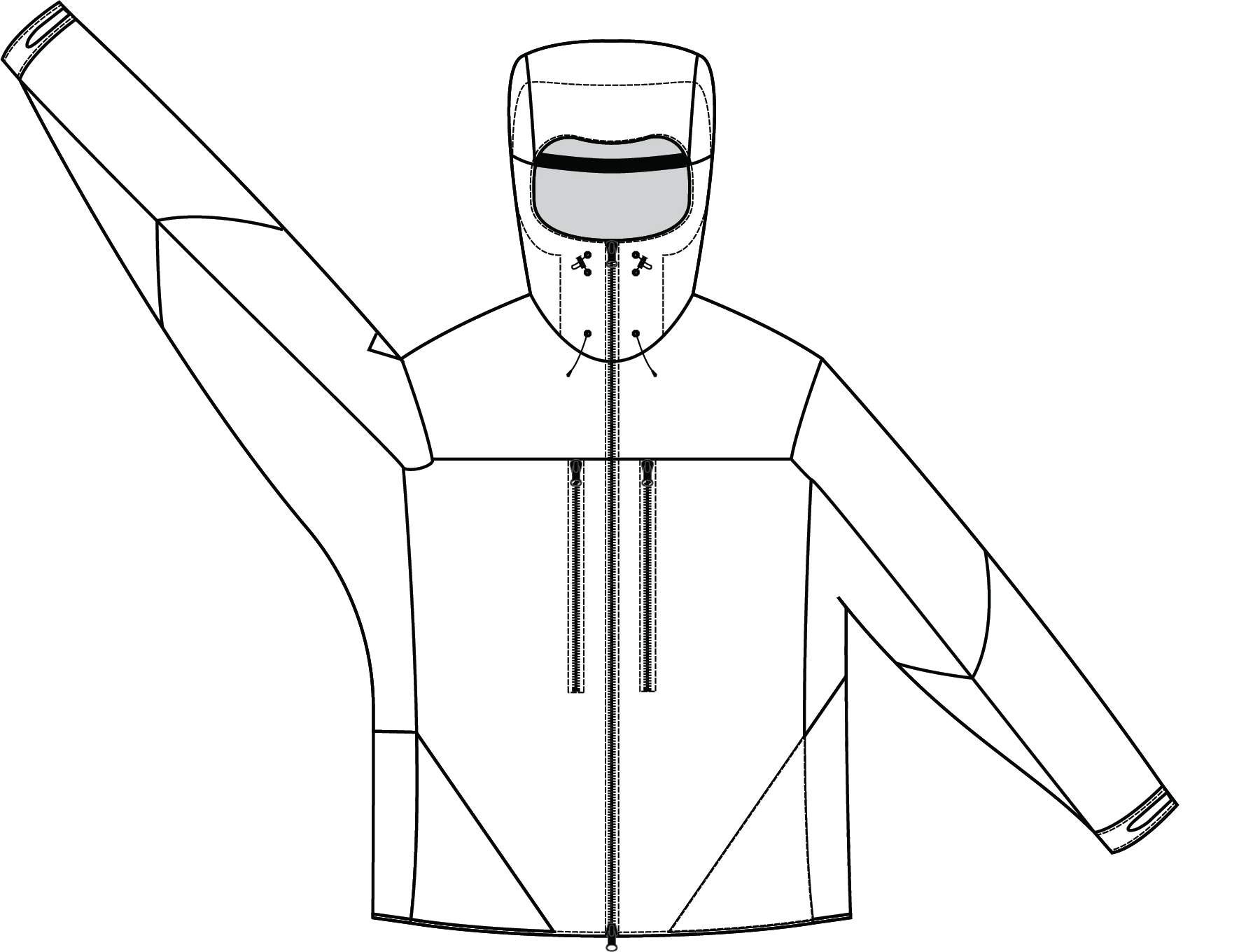

H SX 09 HJ

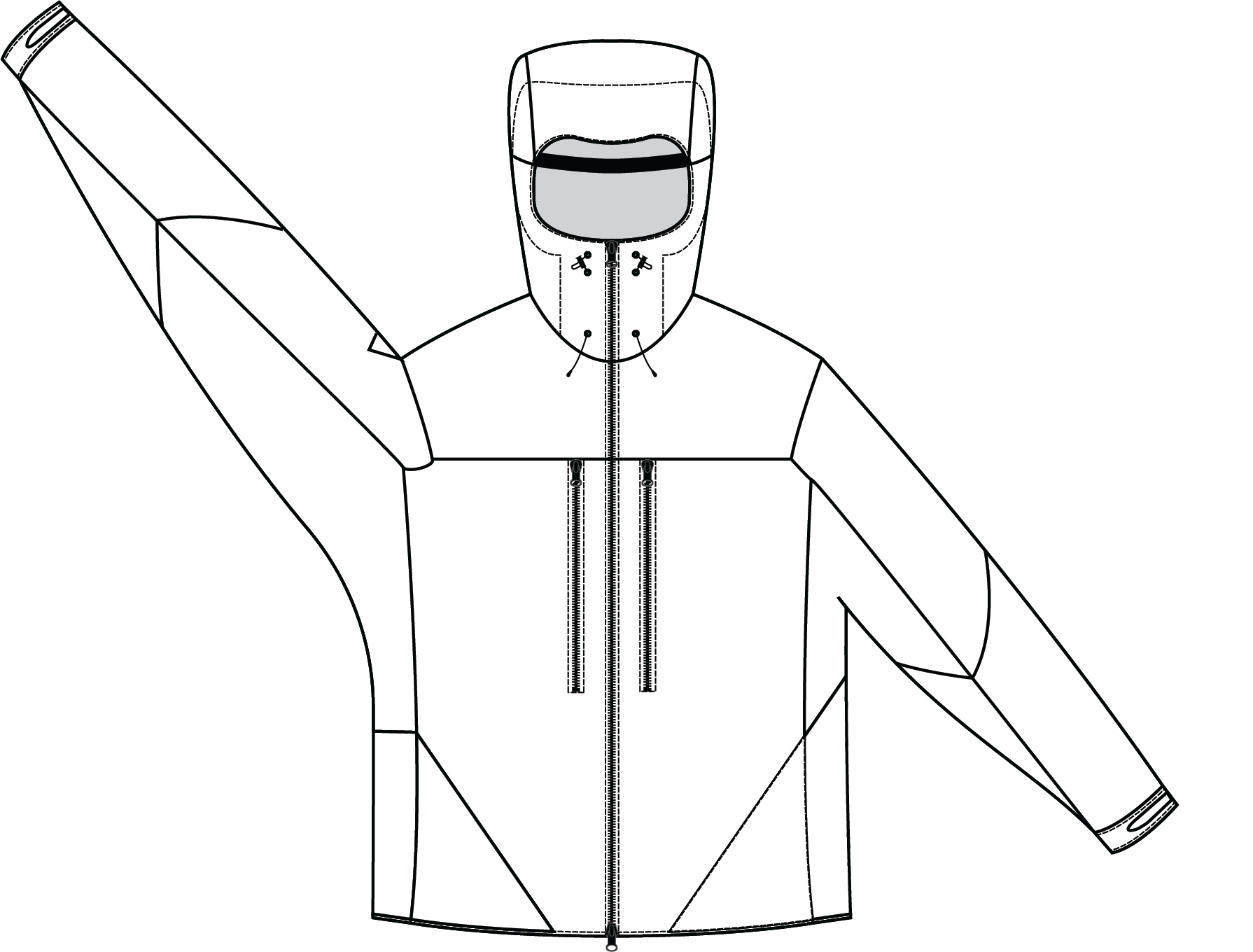

Hiking Jacket
White Render
Coloured
Water/windproof · Seamtaped · 3-point hood

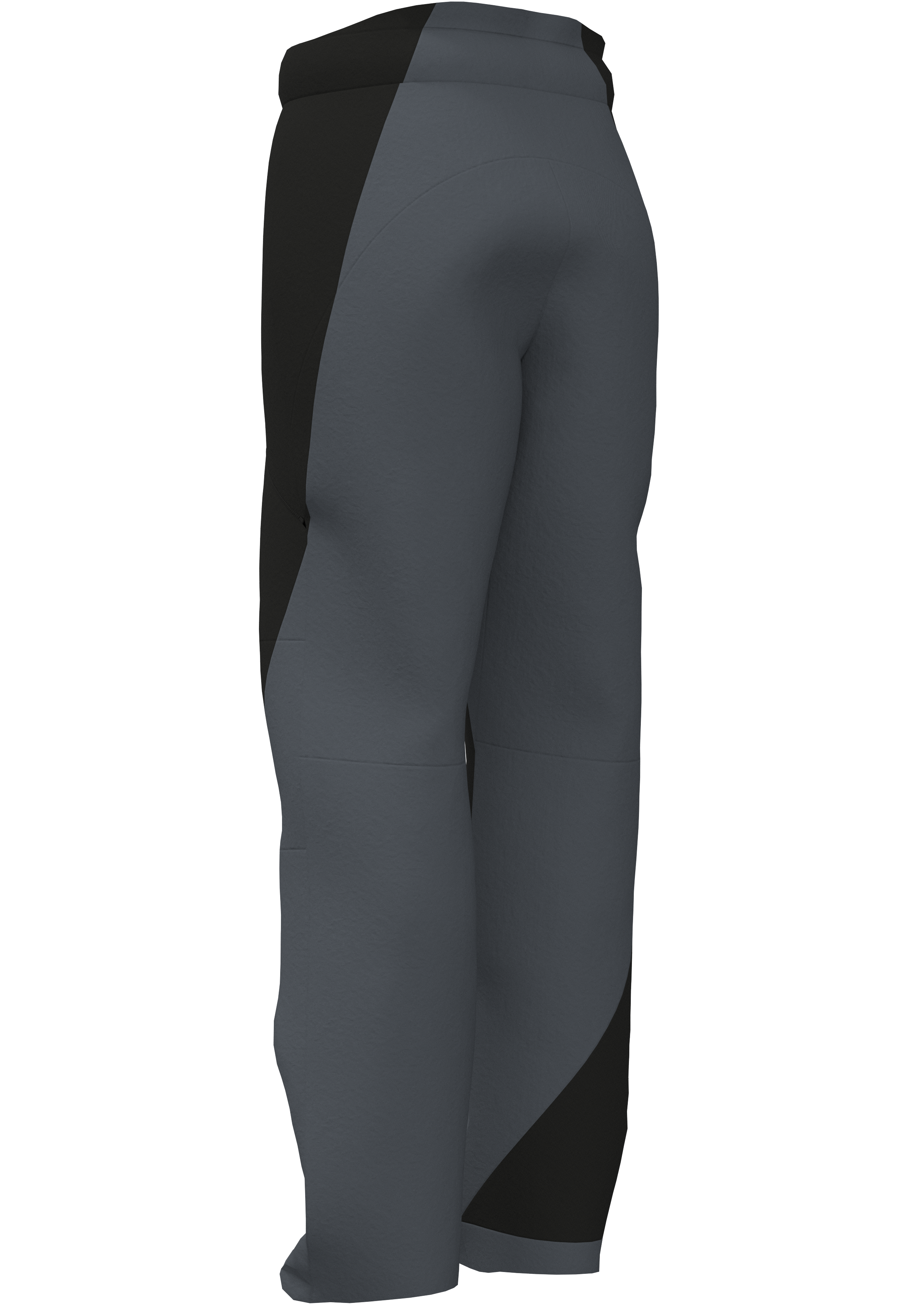

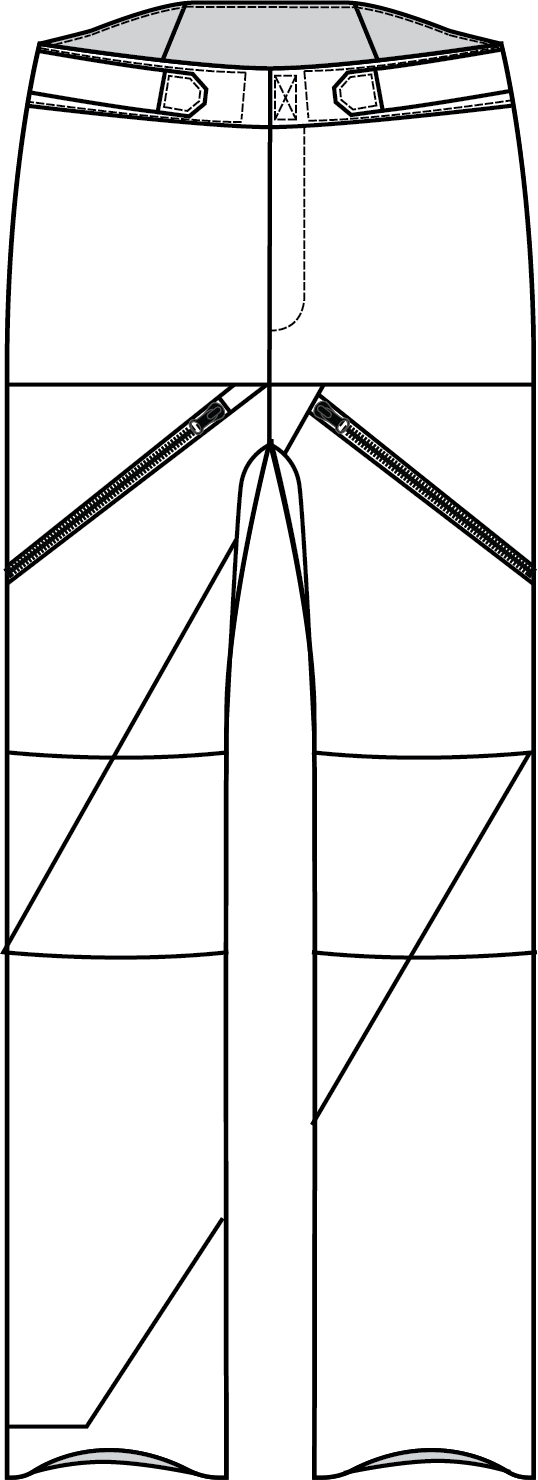

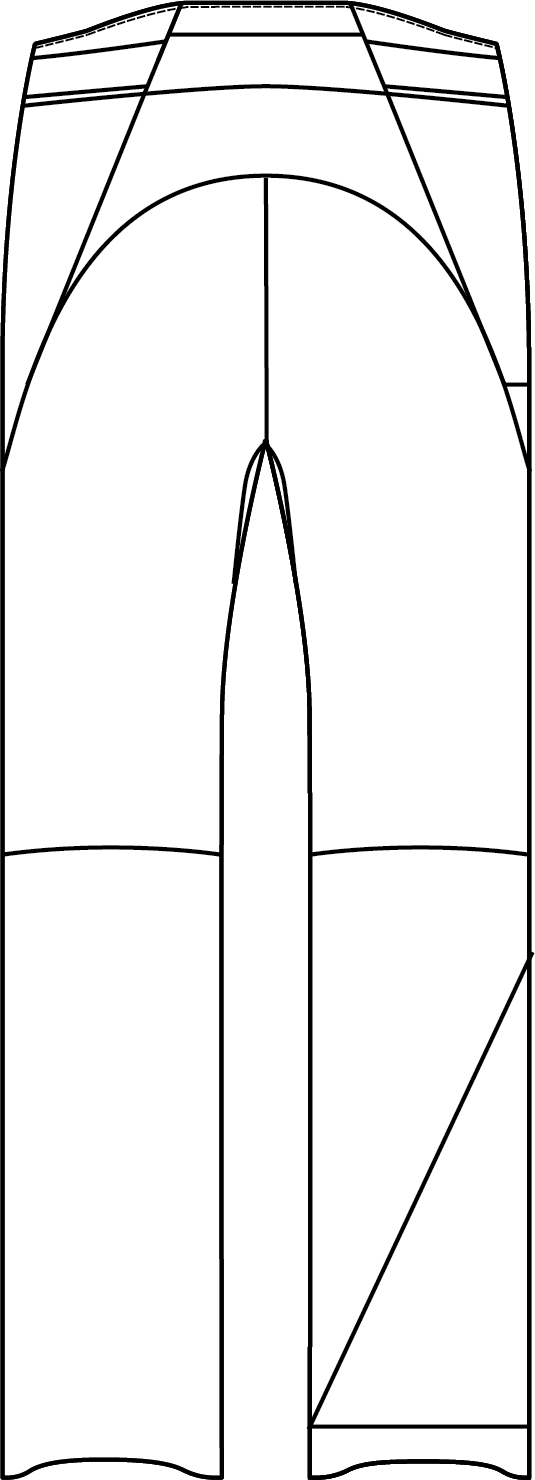

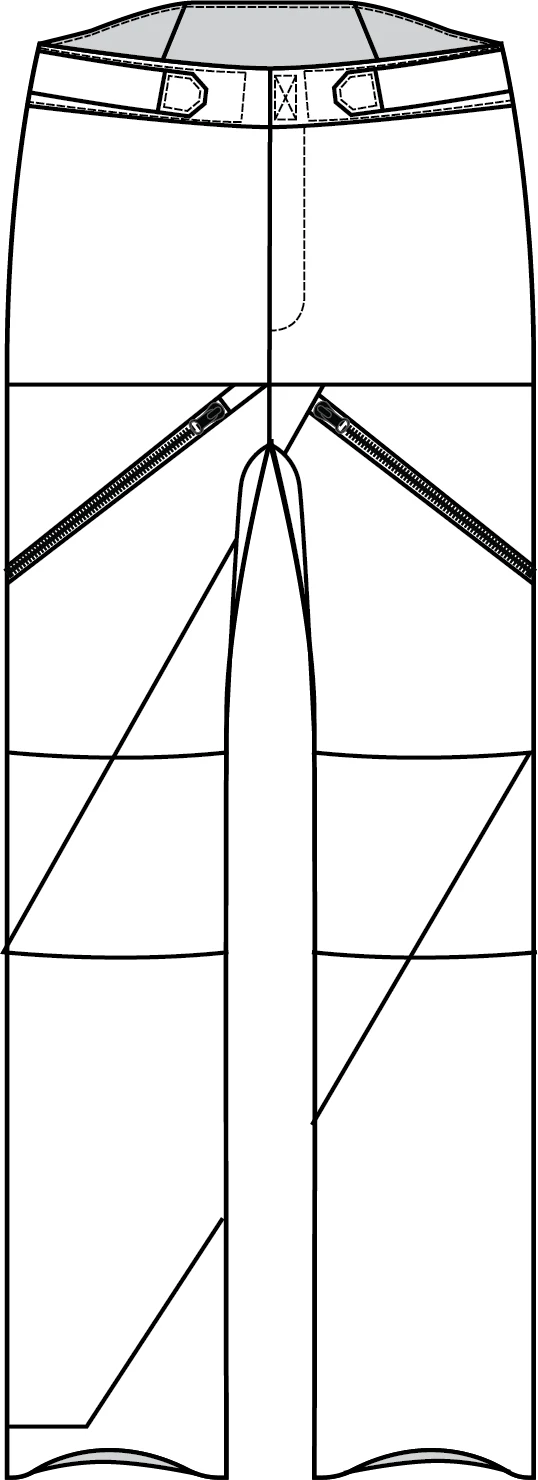

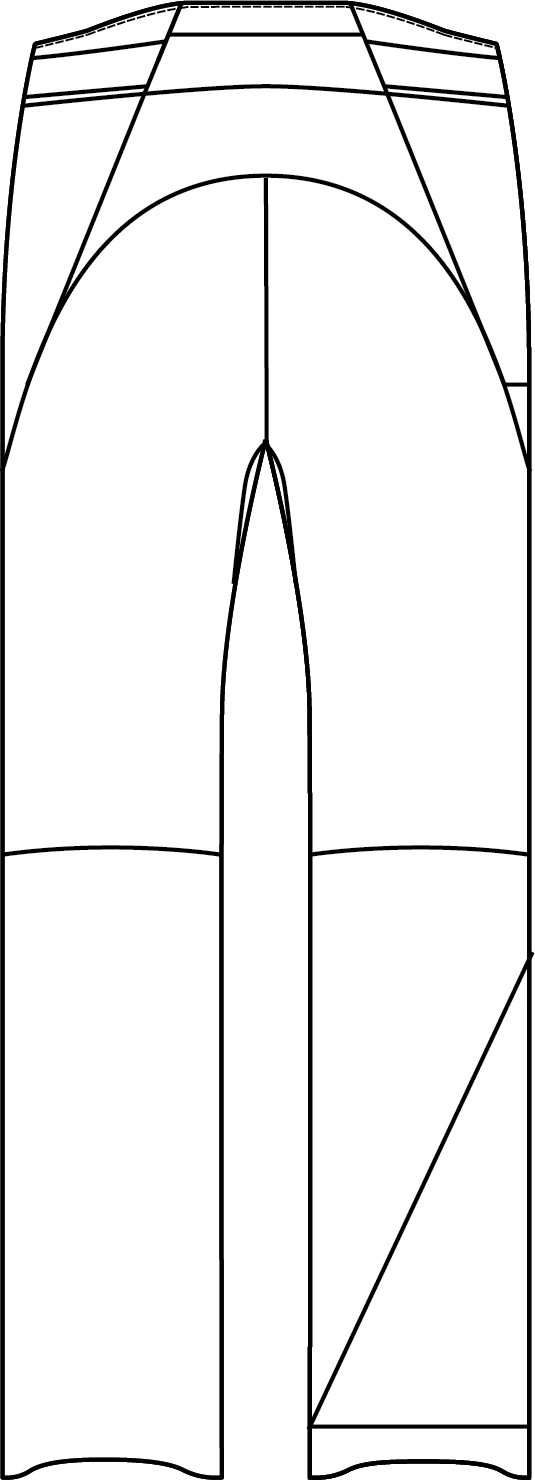

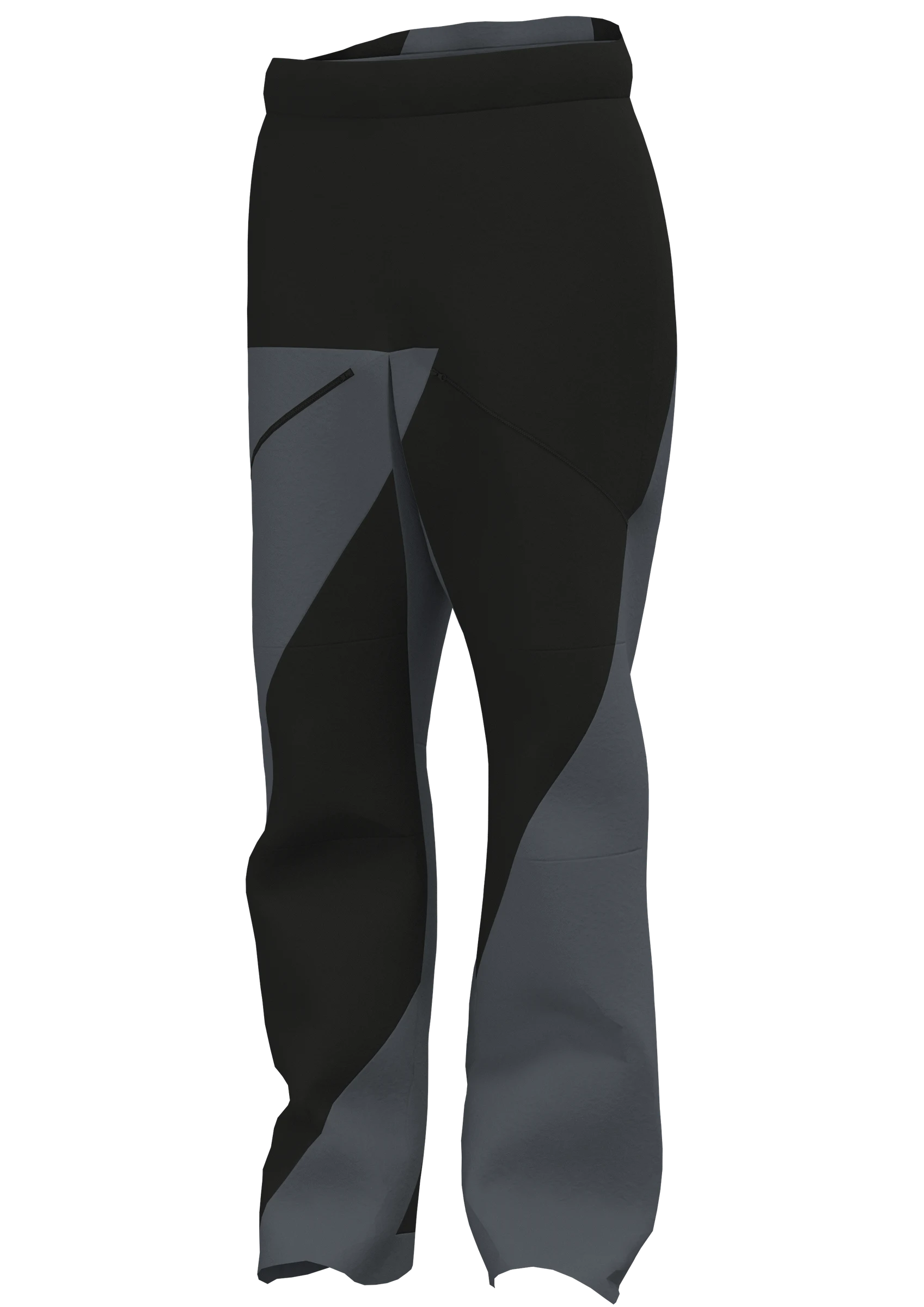

H SX 04 HP

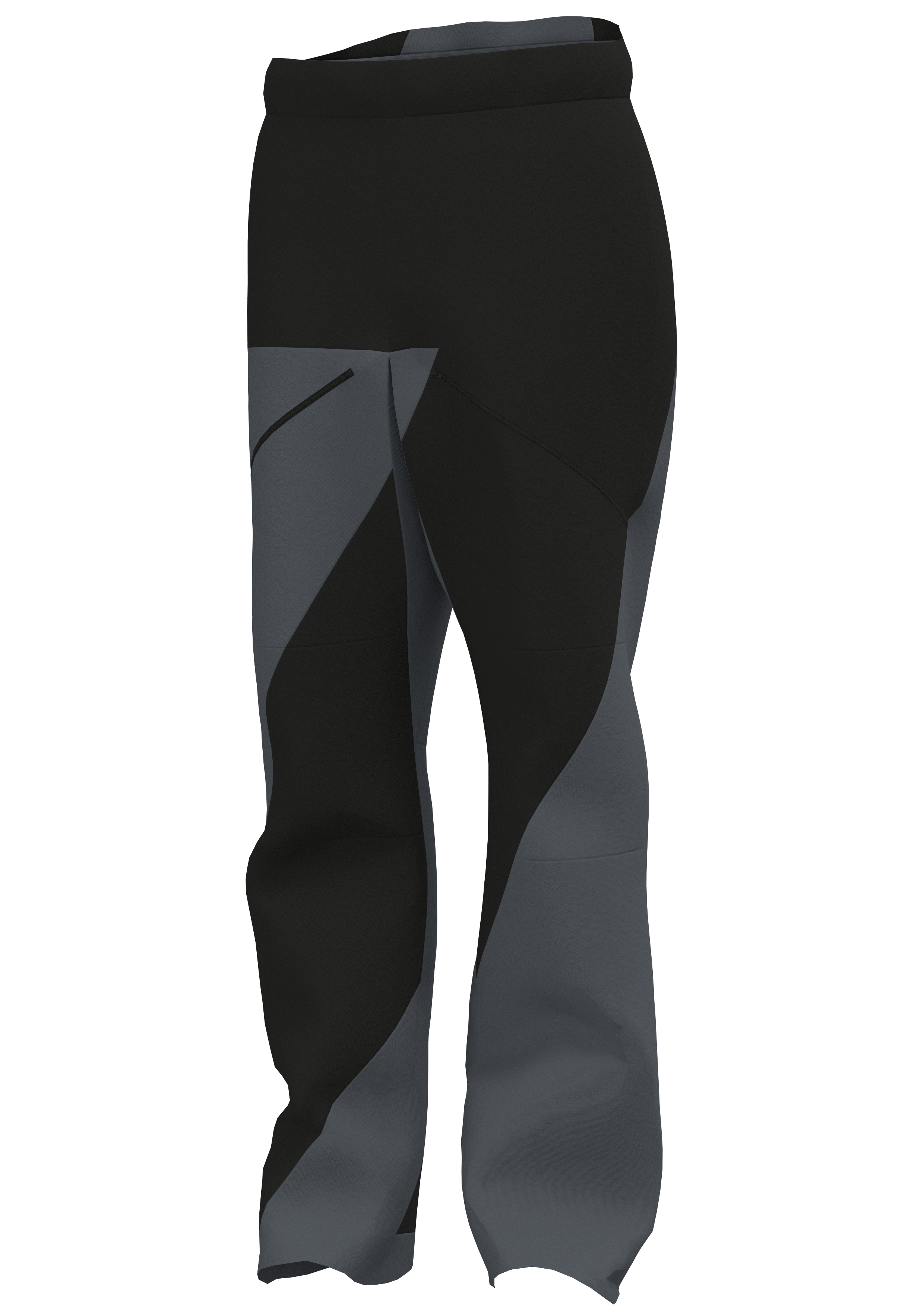

Hiking Pants
White Render
Coloured
Water/windproof · Angled knee · Crotch gusset

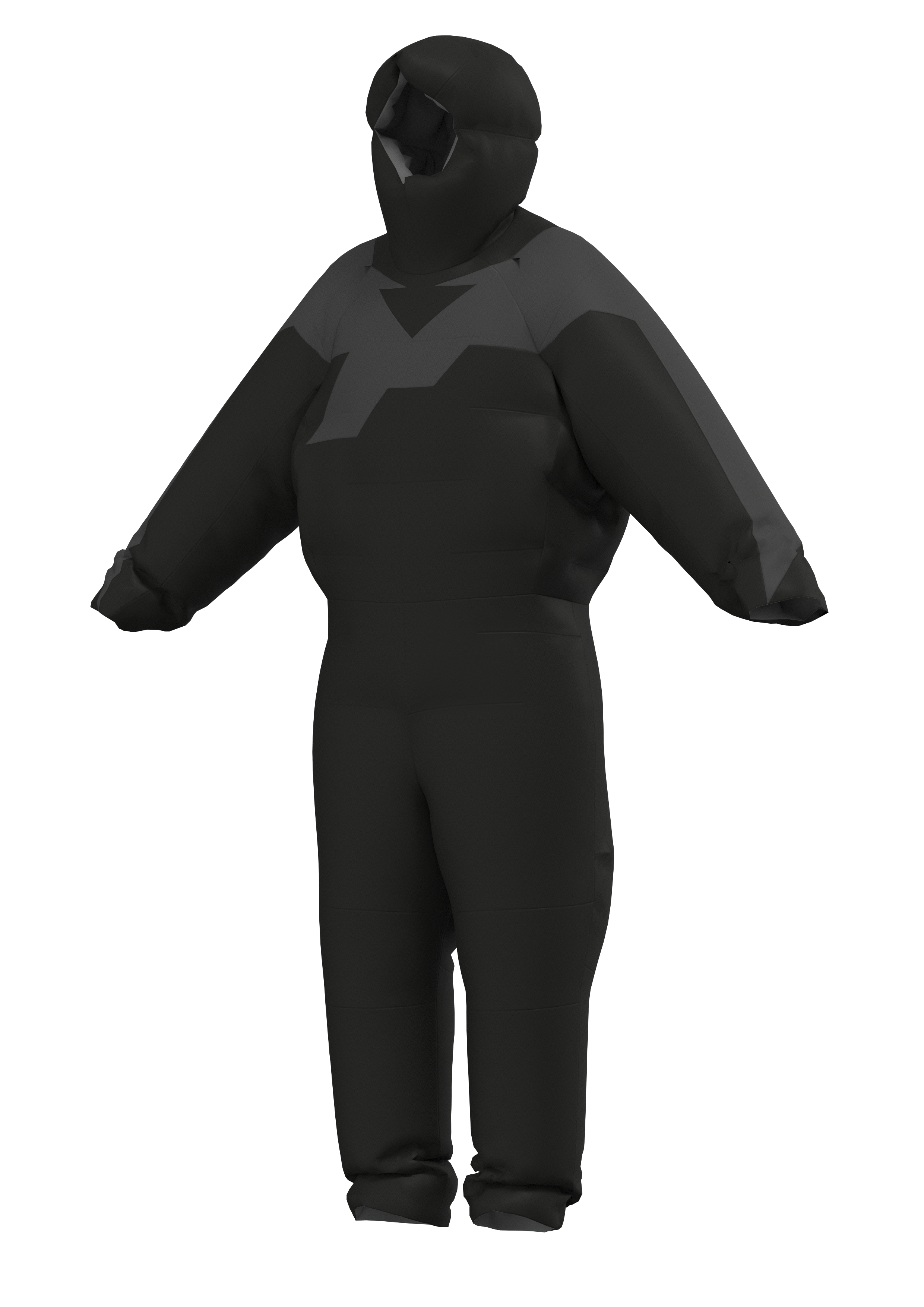

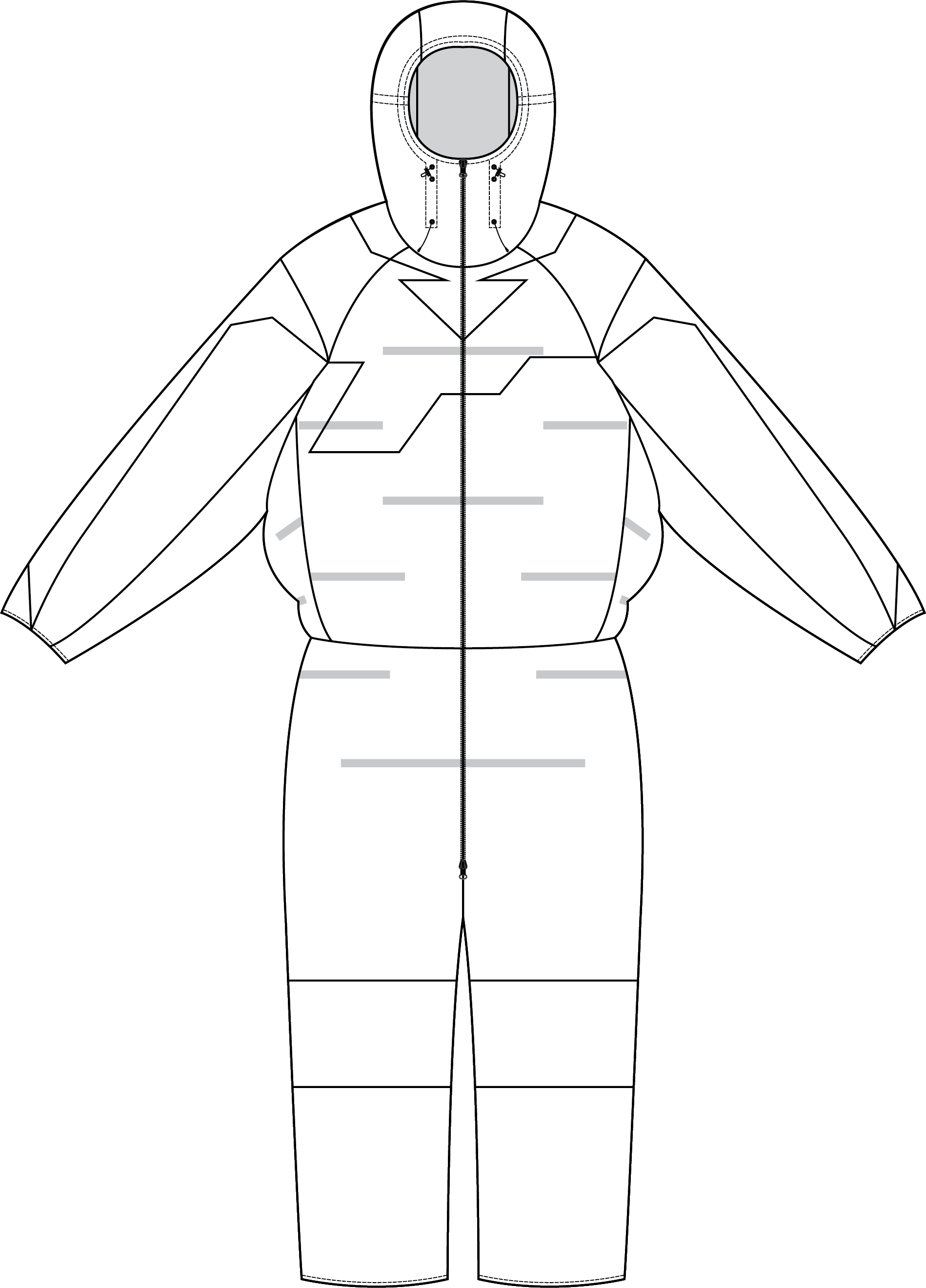

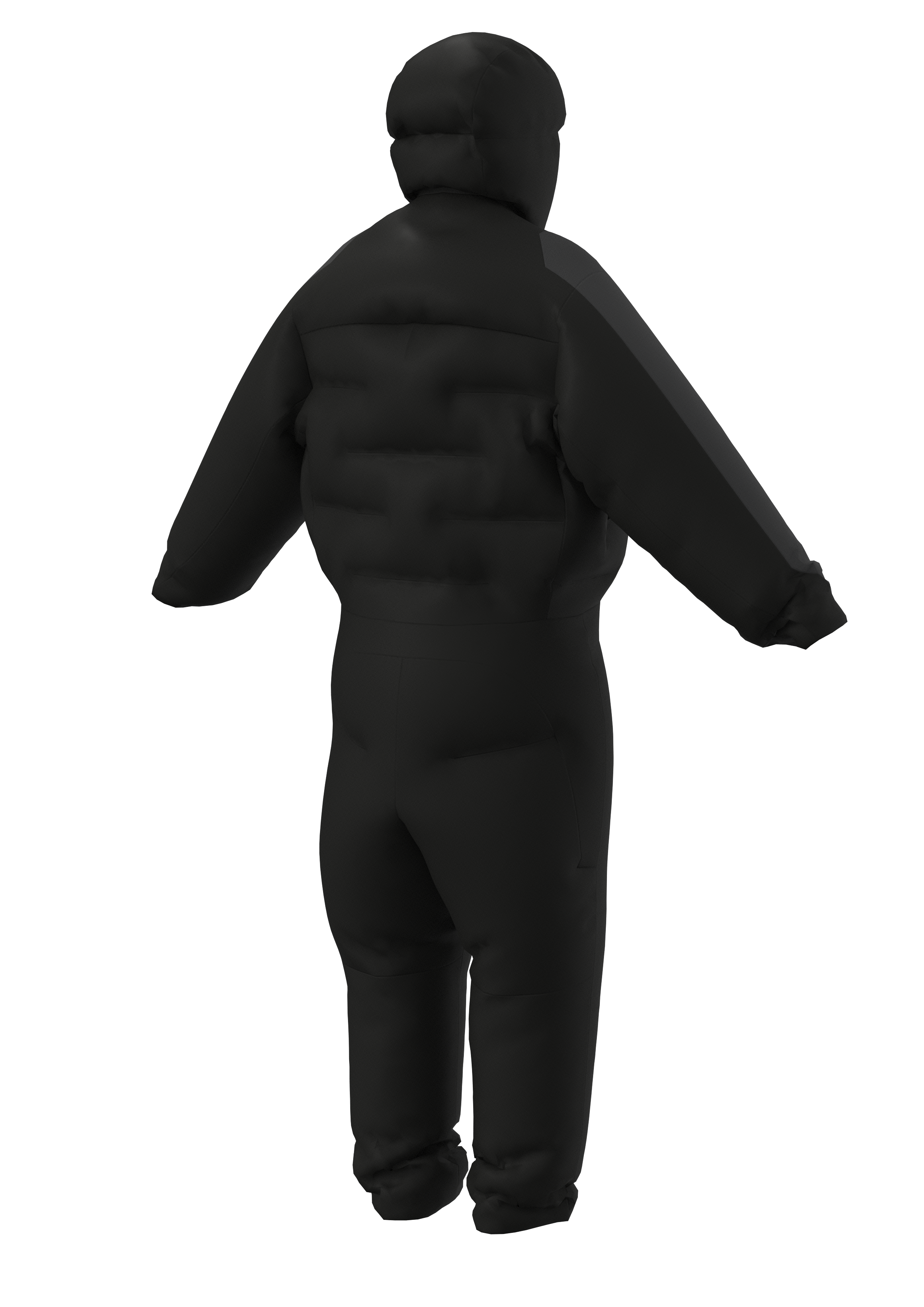

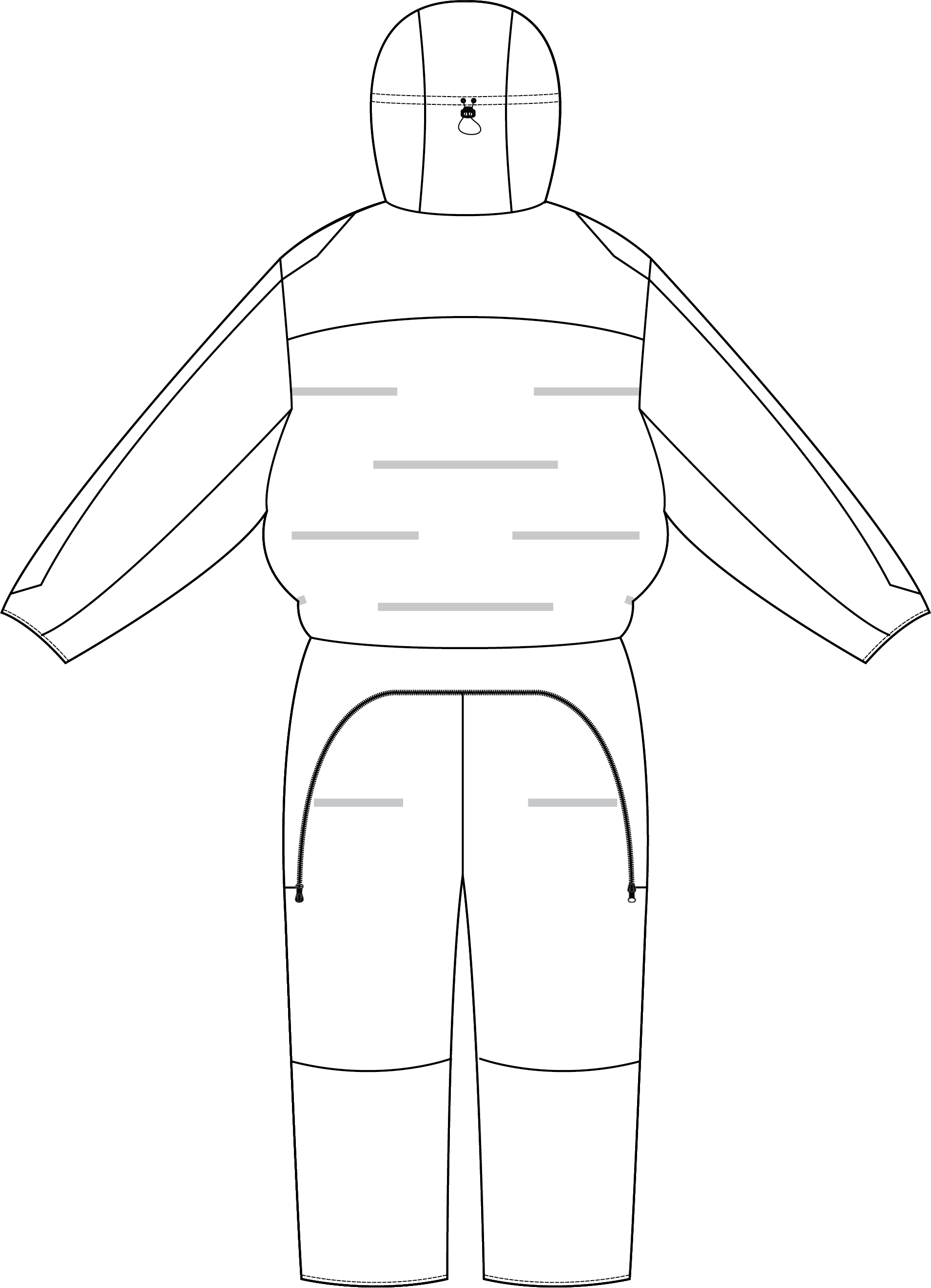

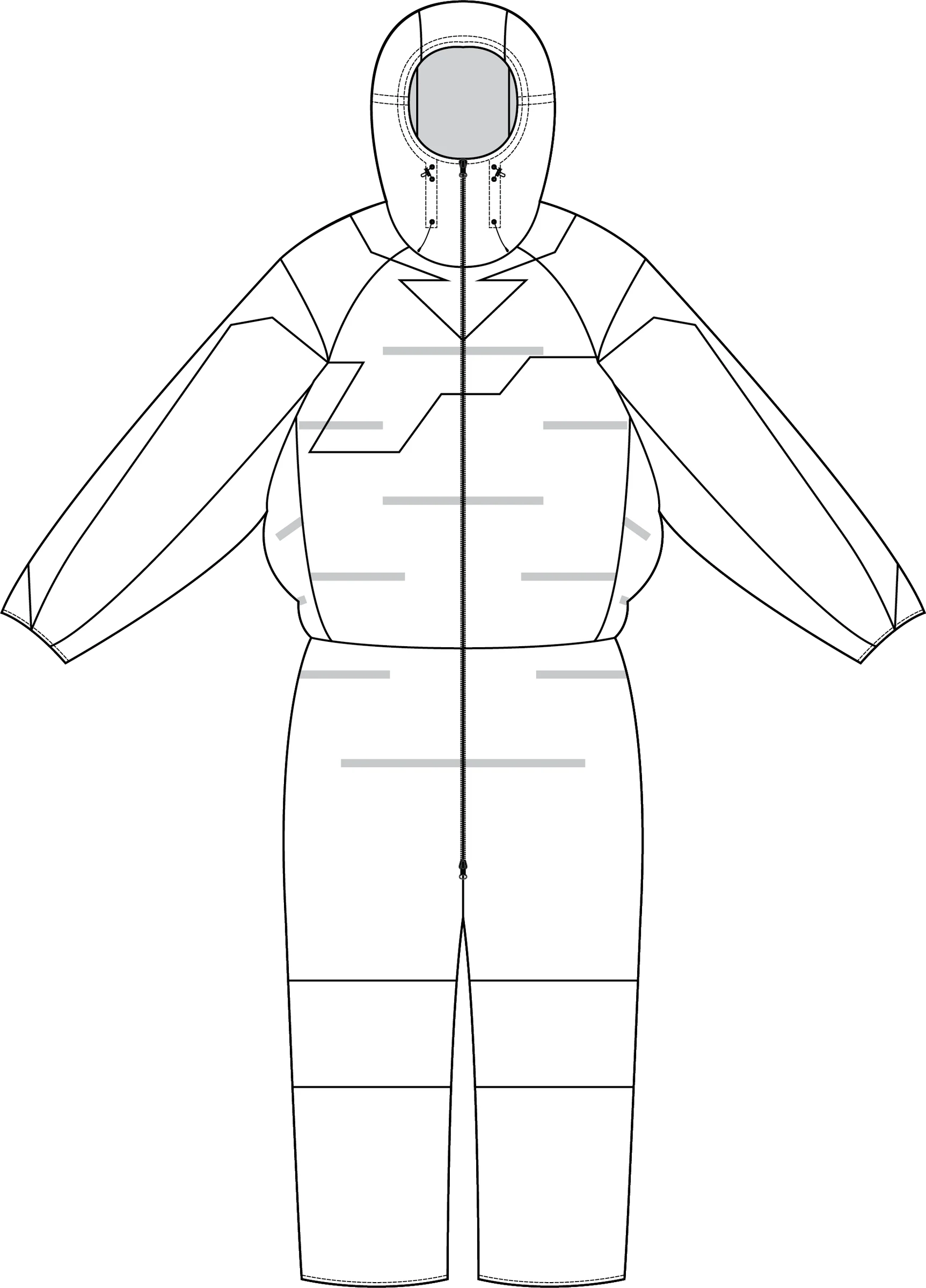

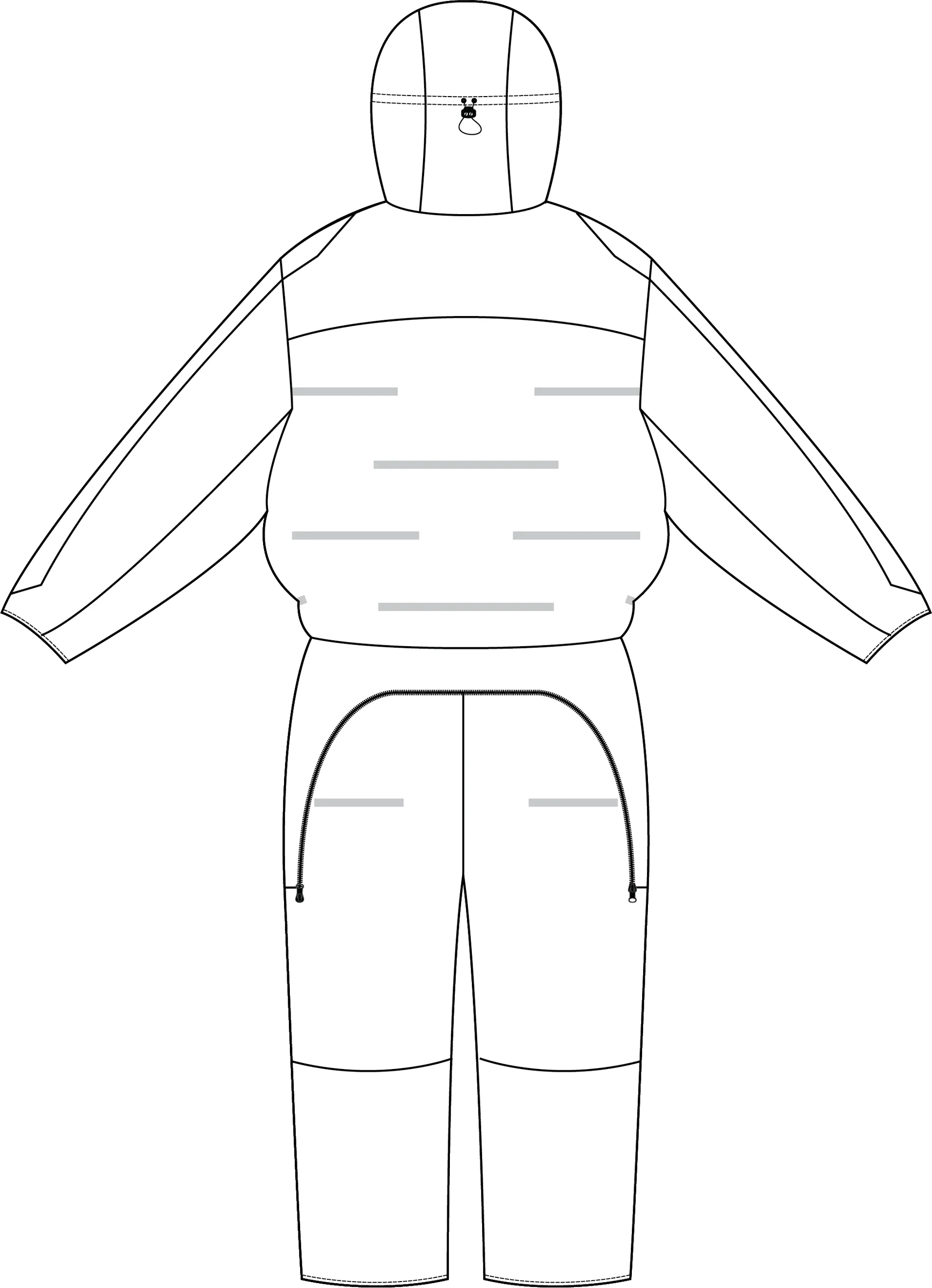

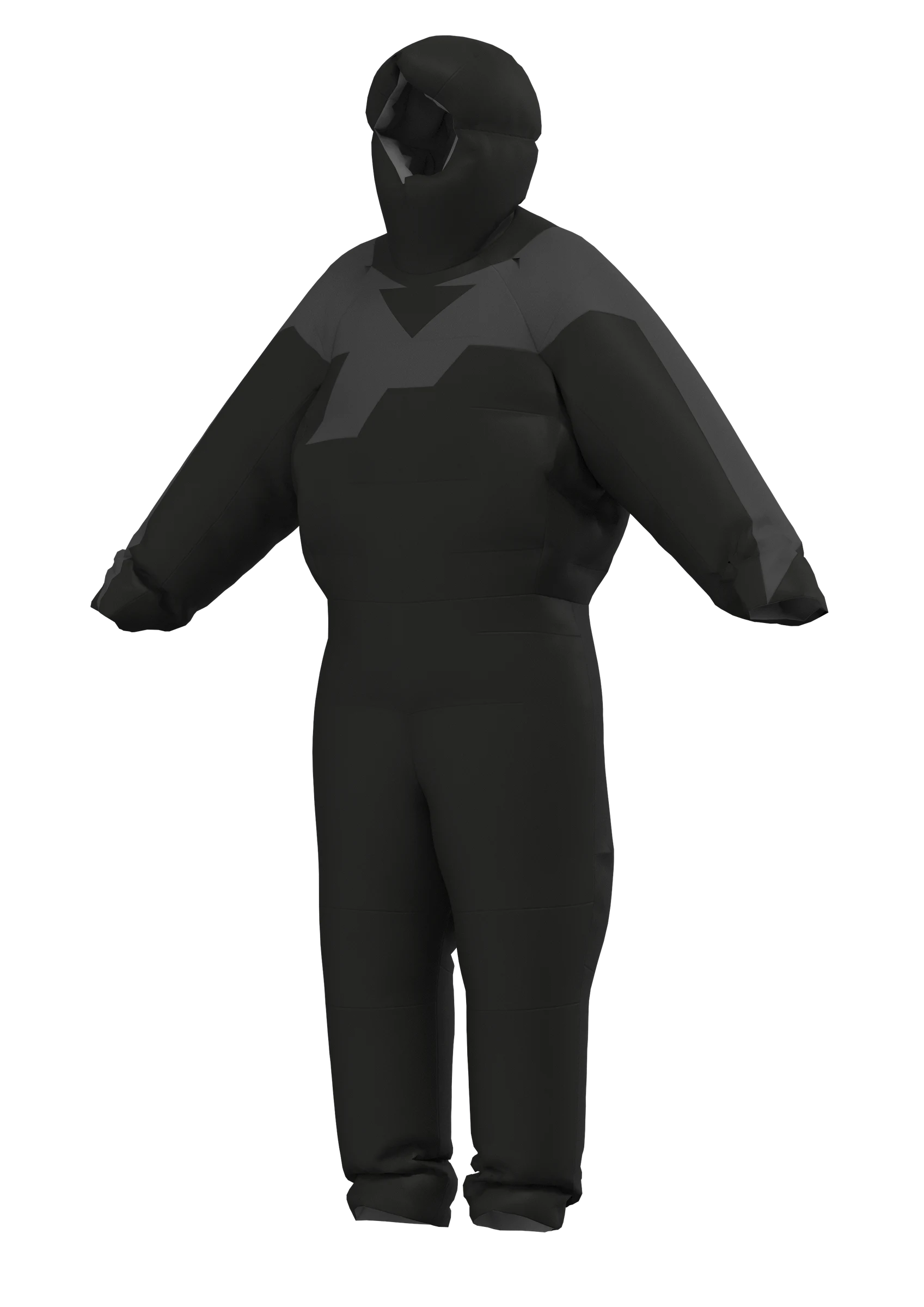

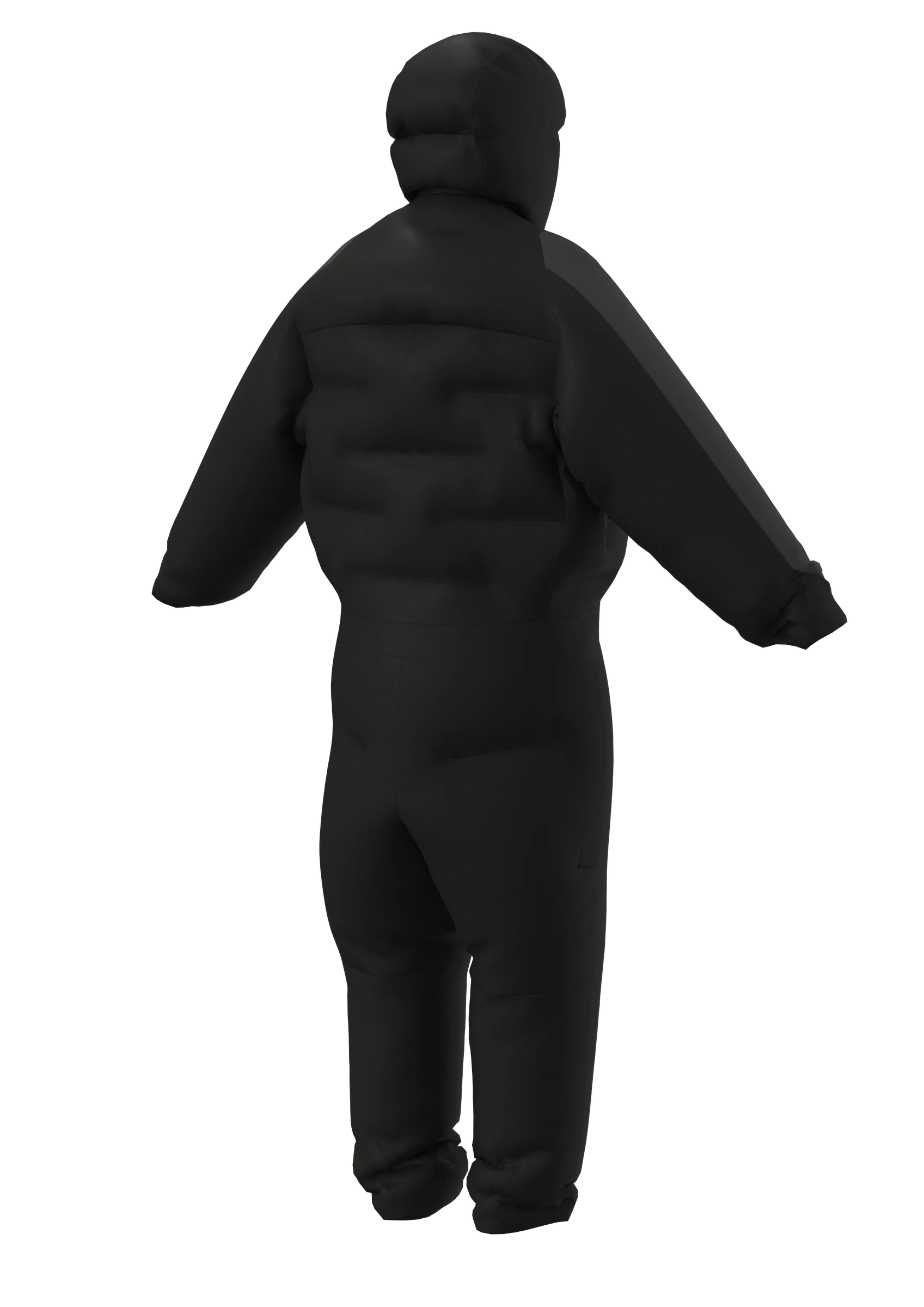

M HX 12 SMT
Summit Suit
White Render
Coloured
Box-wall baffles · Helmet-compatible hood
Triathlon
T RC Series

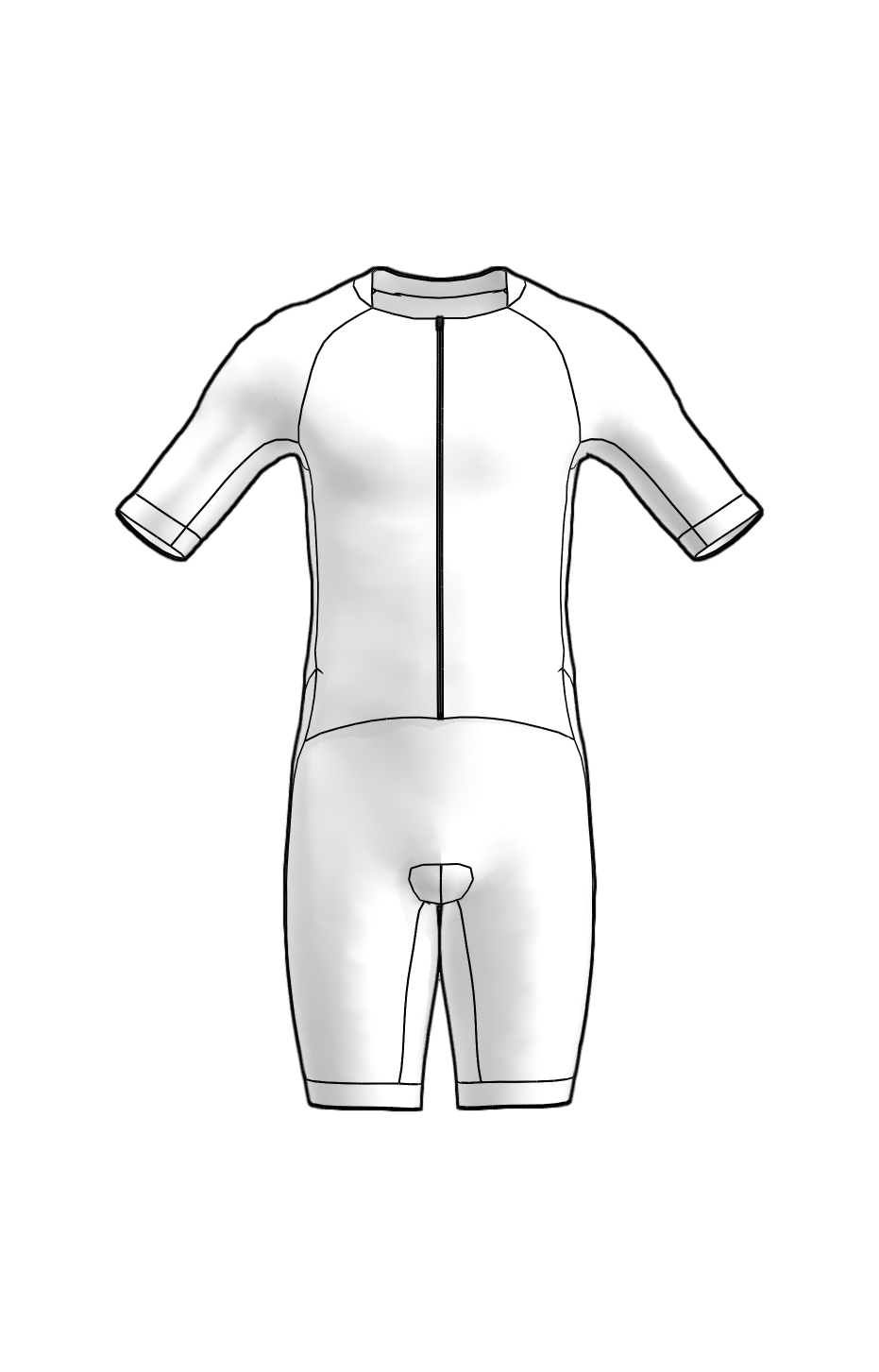

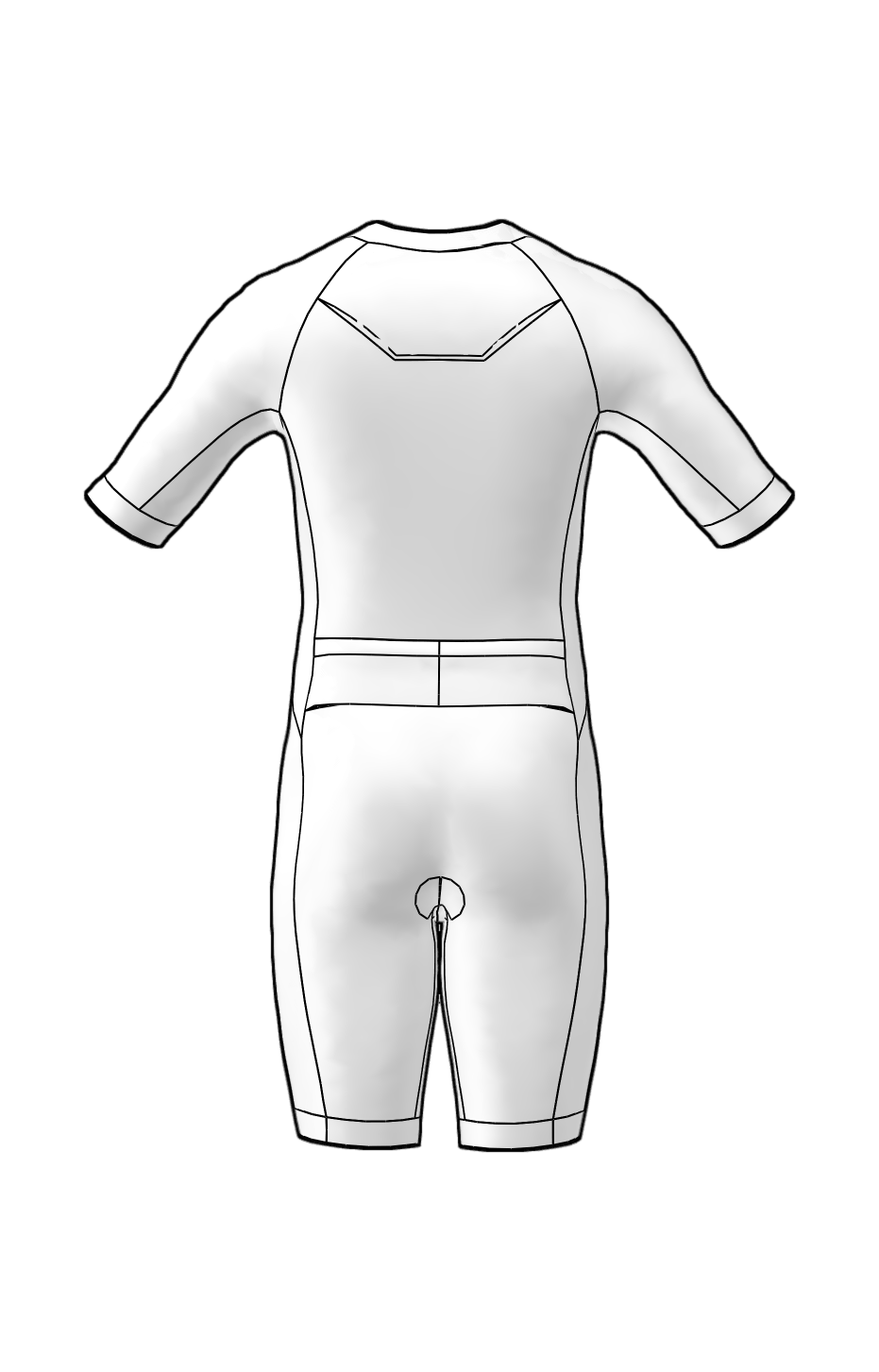

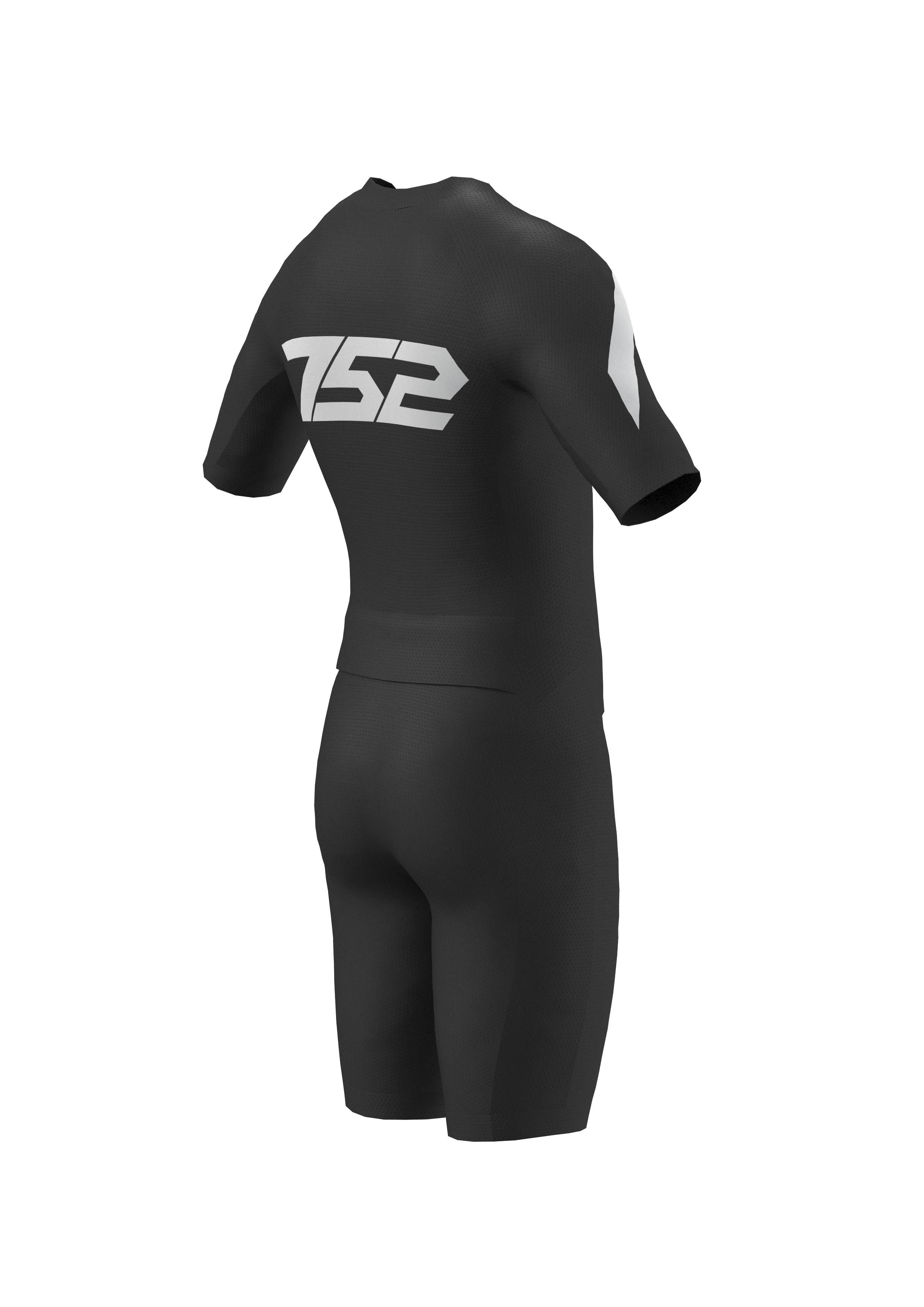

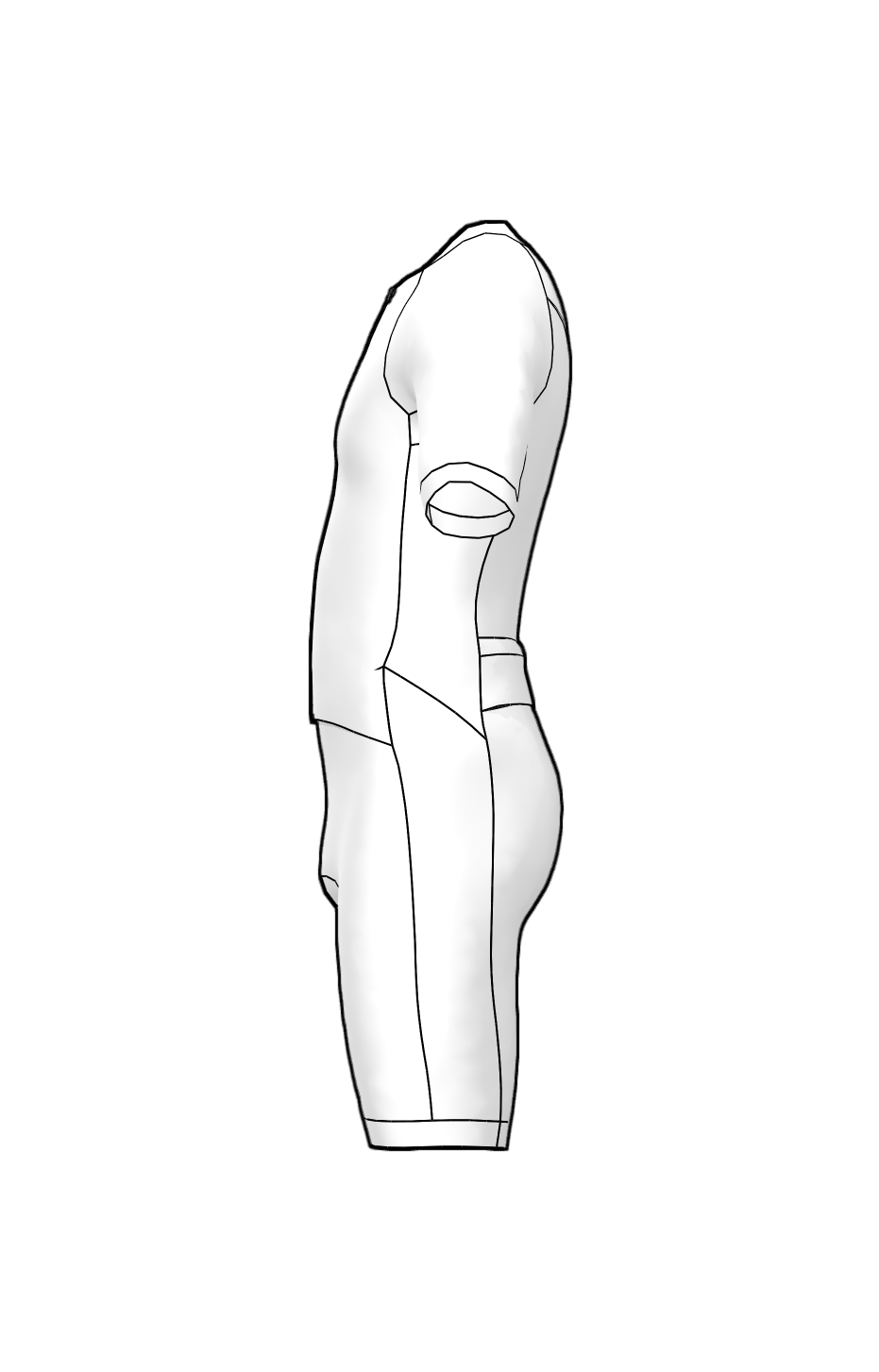

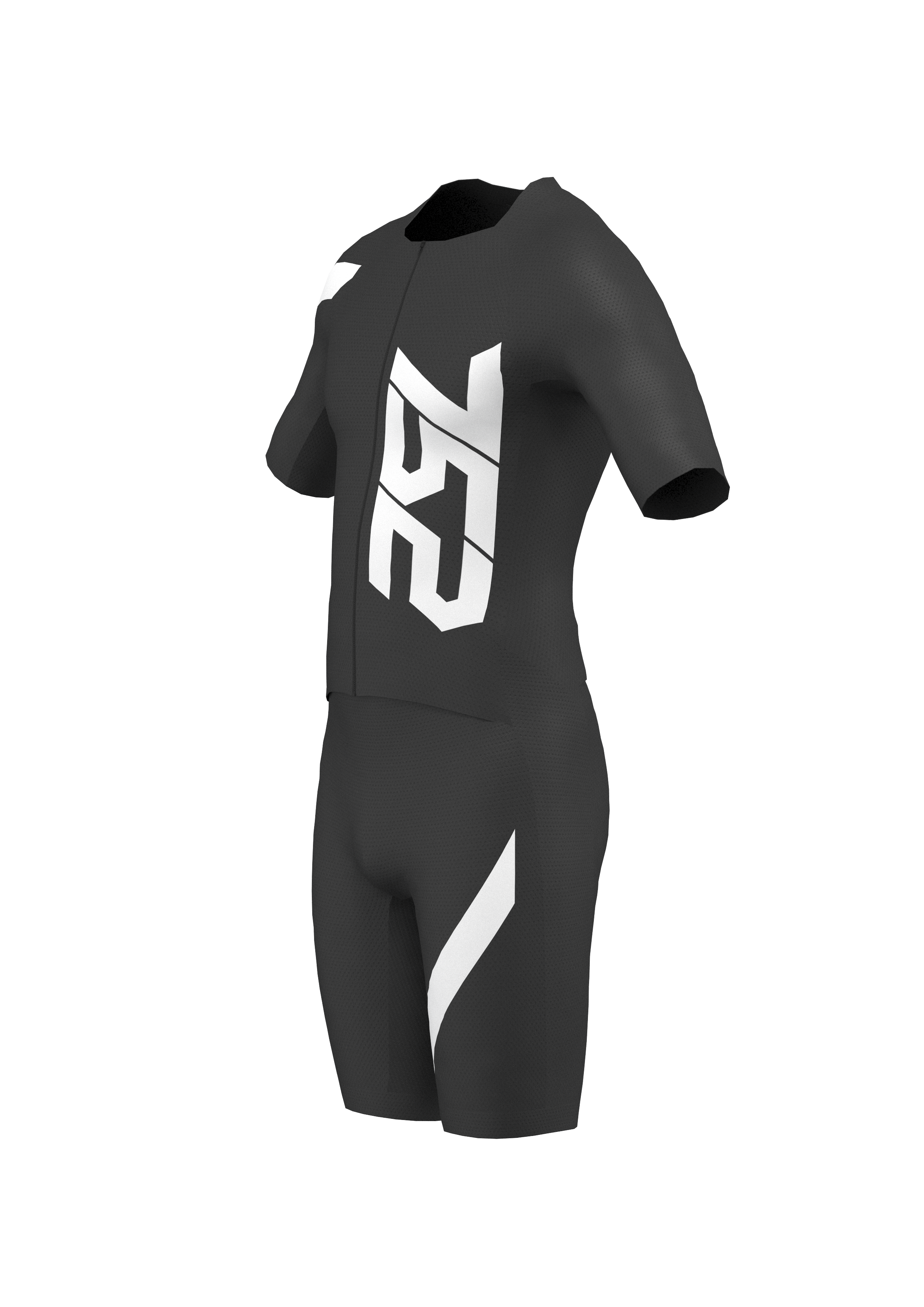

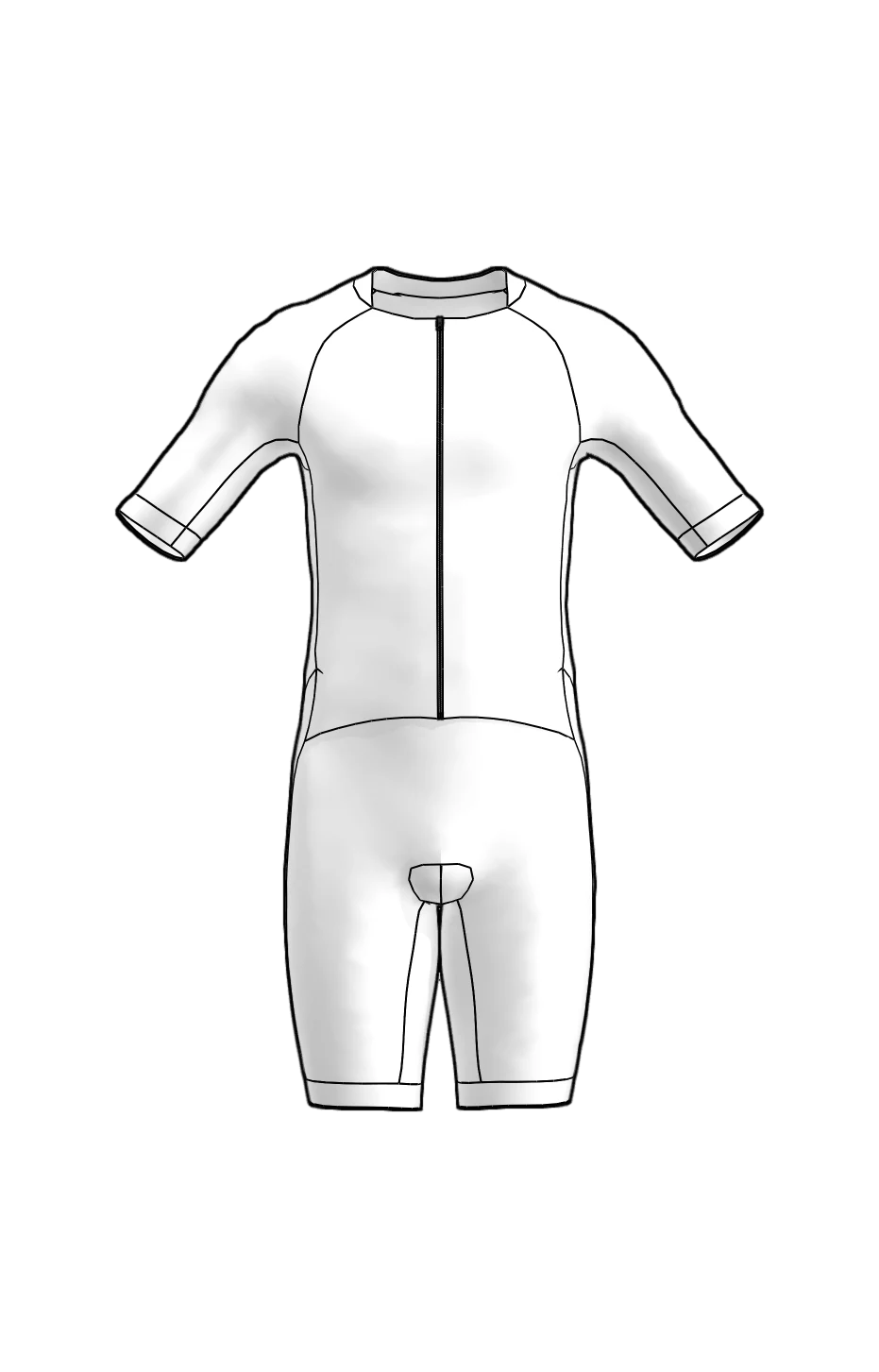

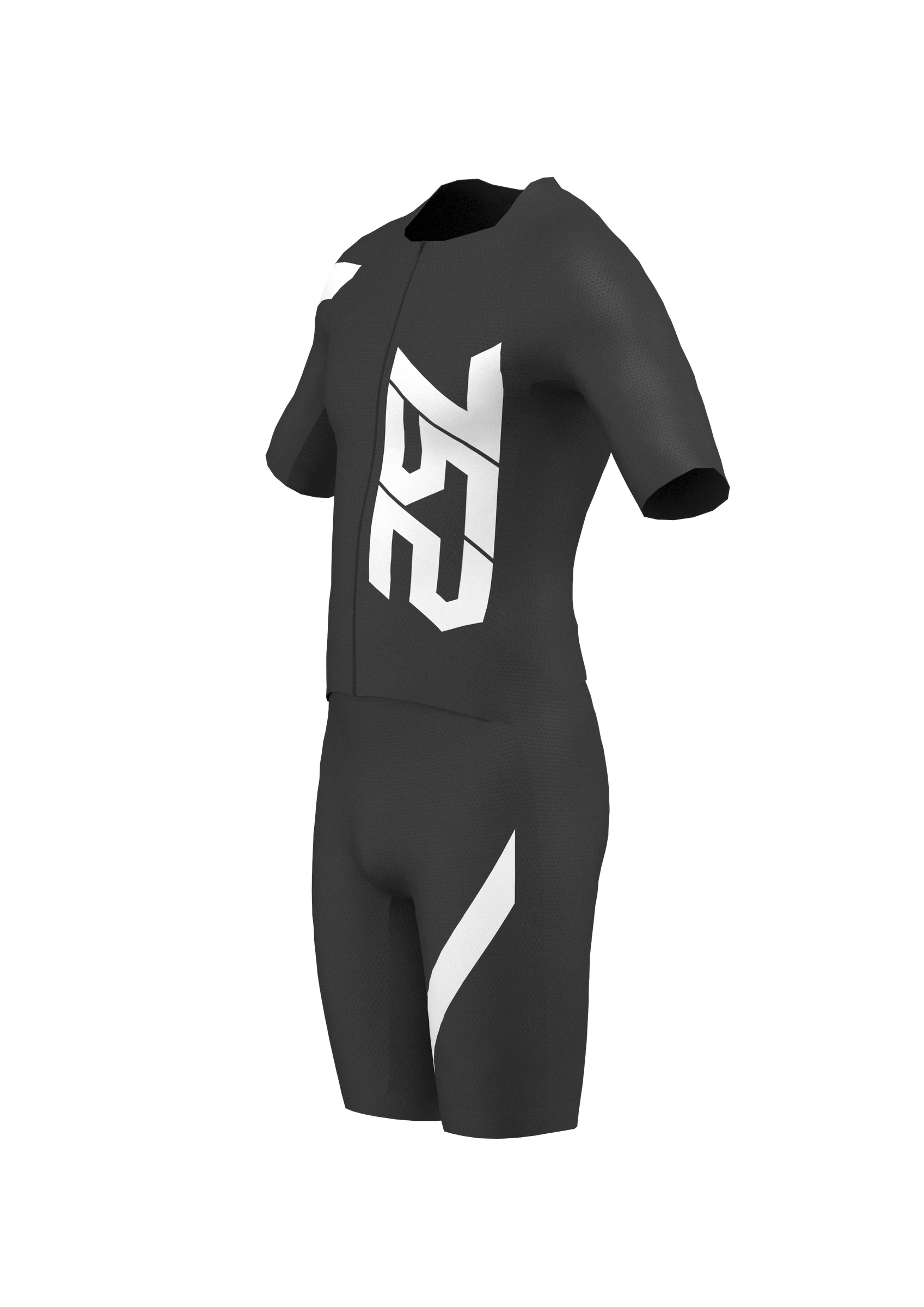

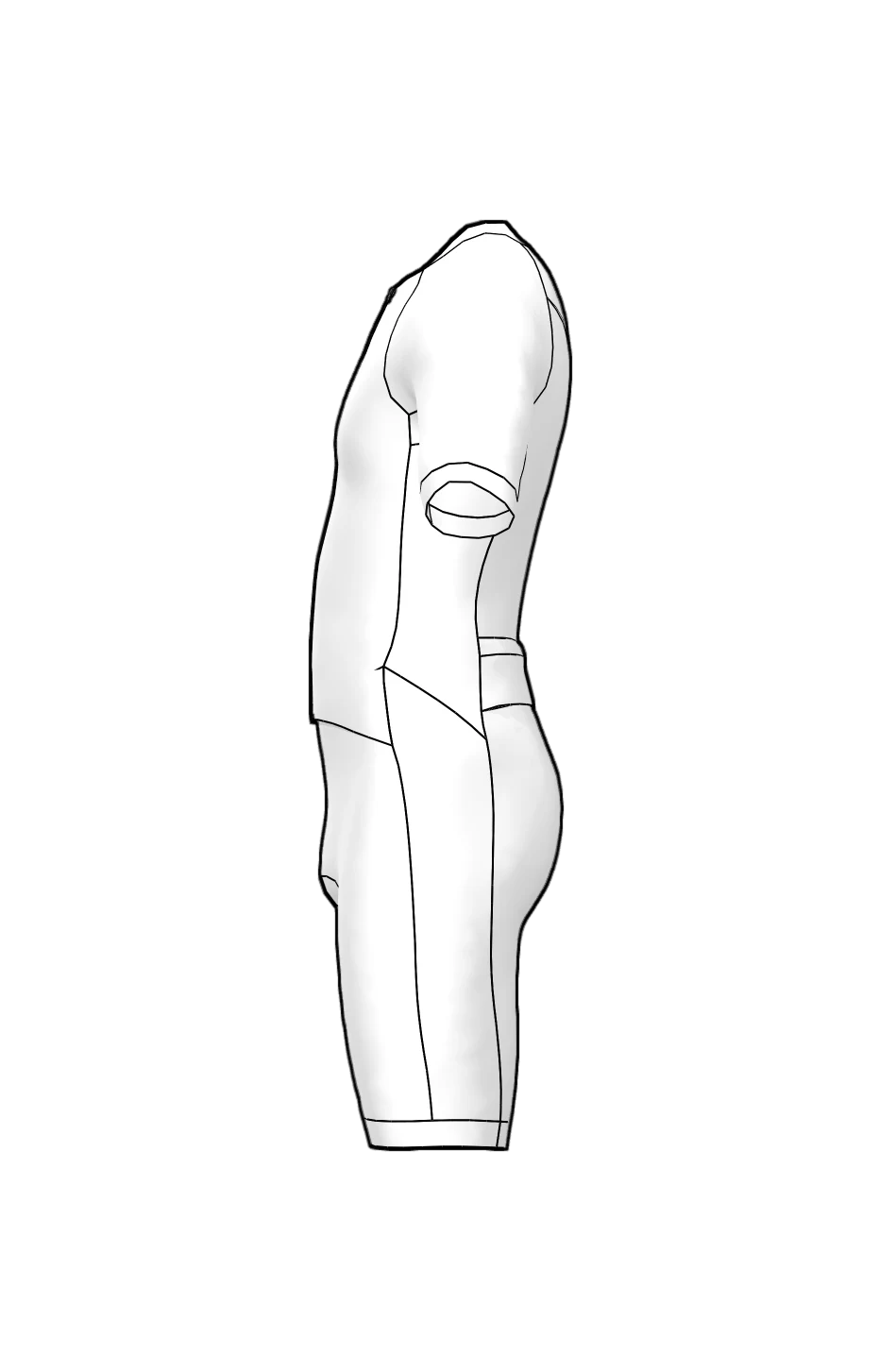

T RC 09 TS
Trisuit
White Render
Coloured
Sleeve gusset · Thin pad · Neck ice pocket
Swimming
S OW / S HY — Wetsuit & Swimskin

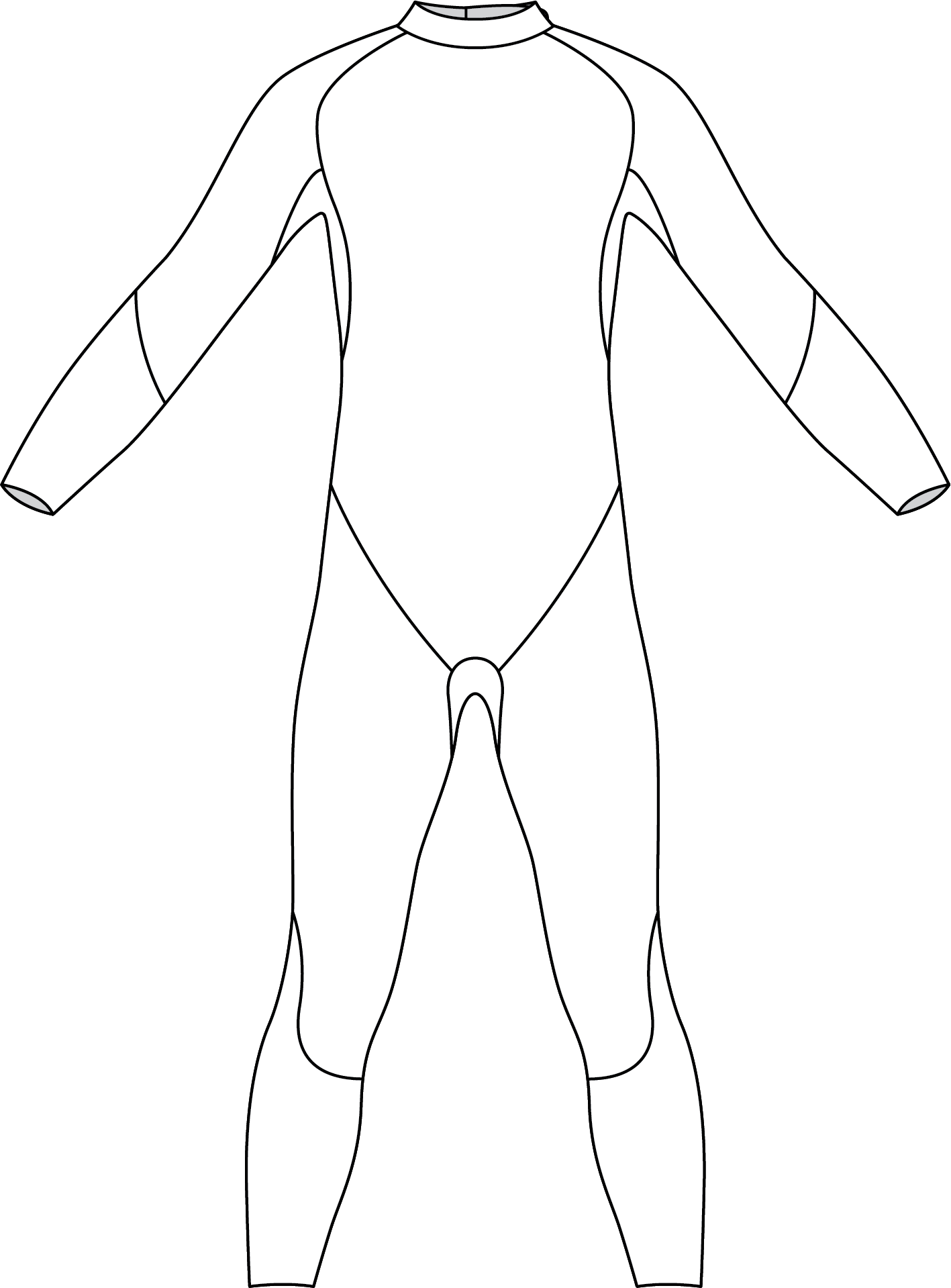

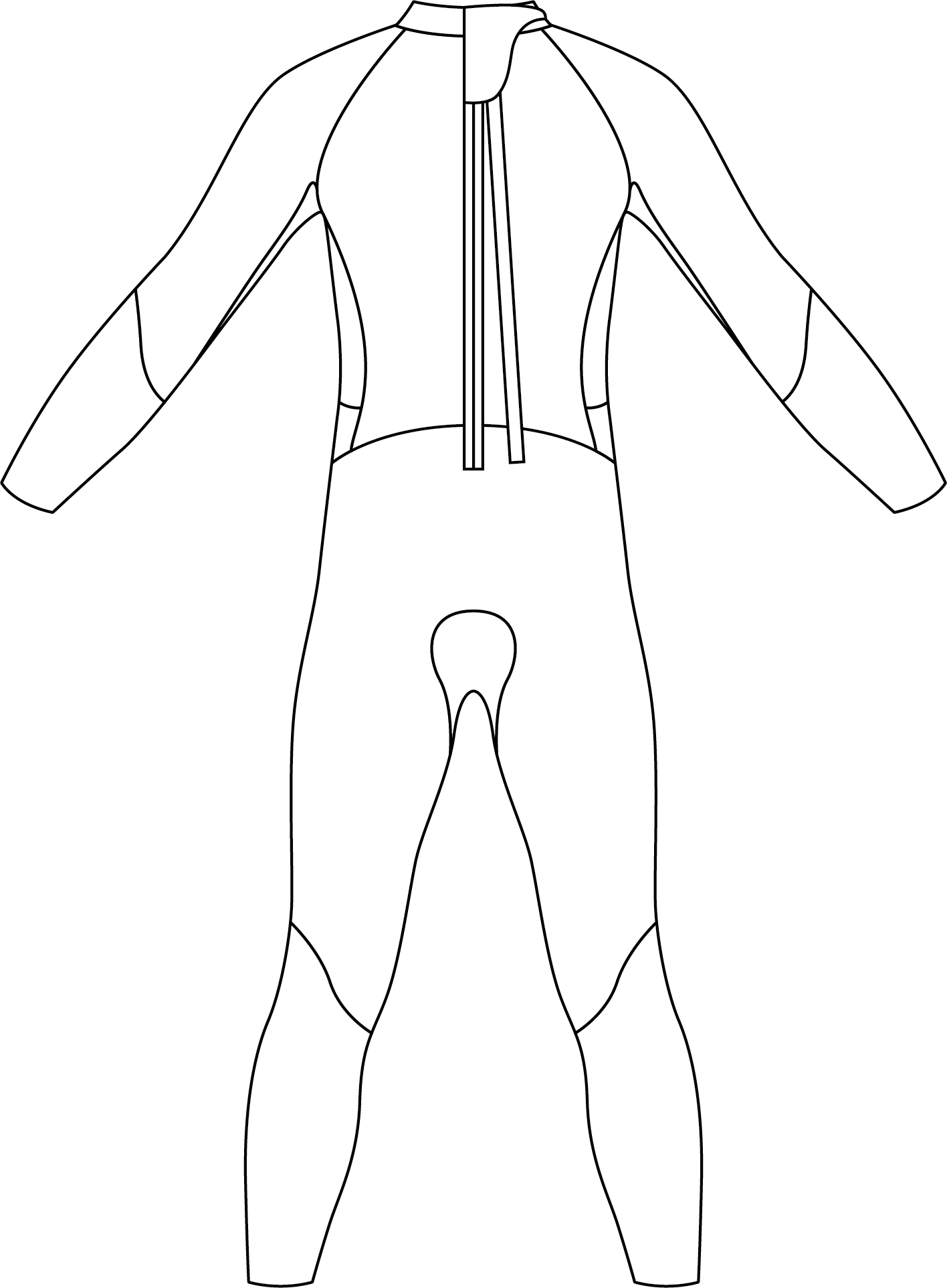

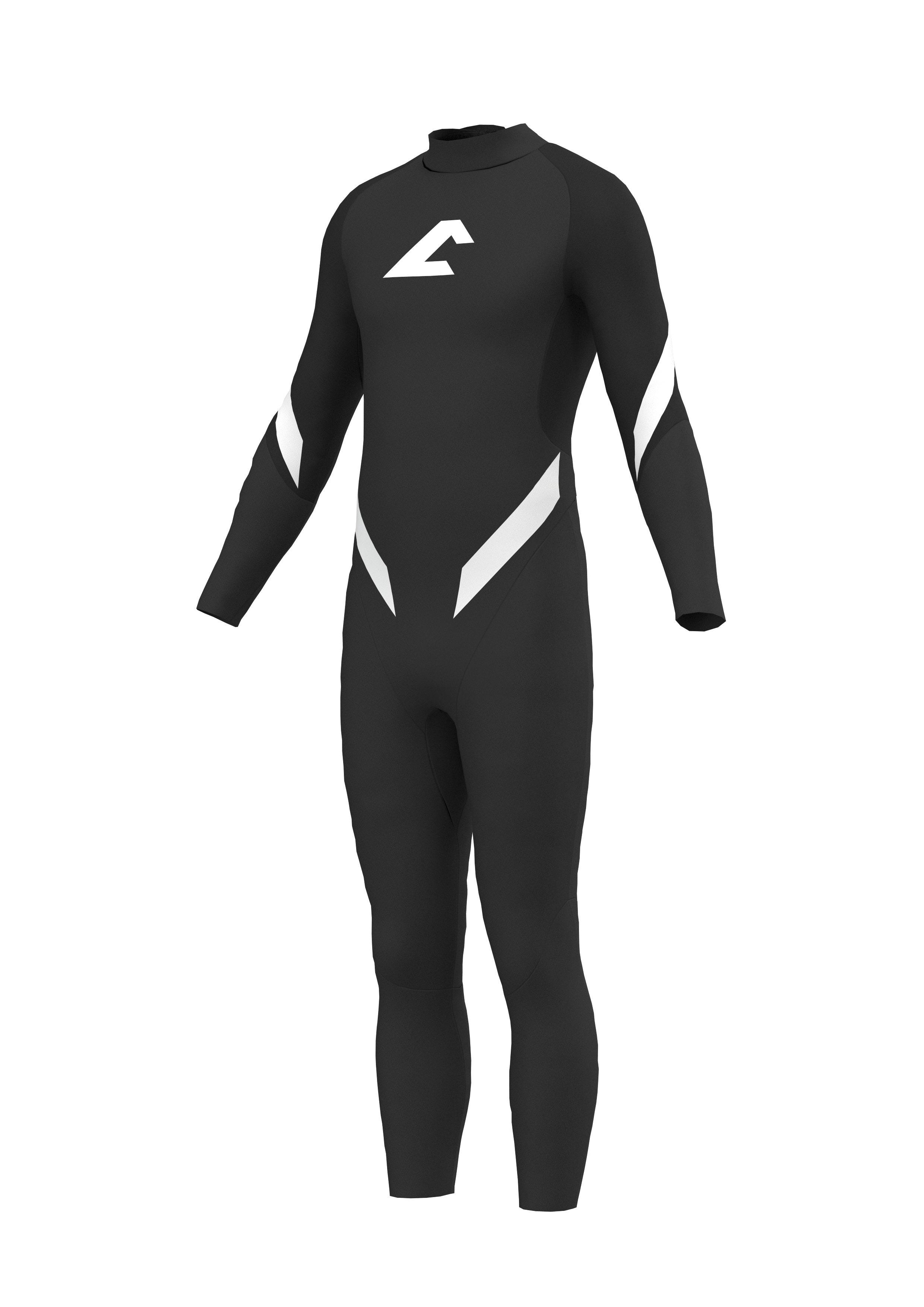

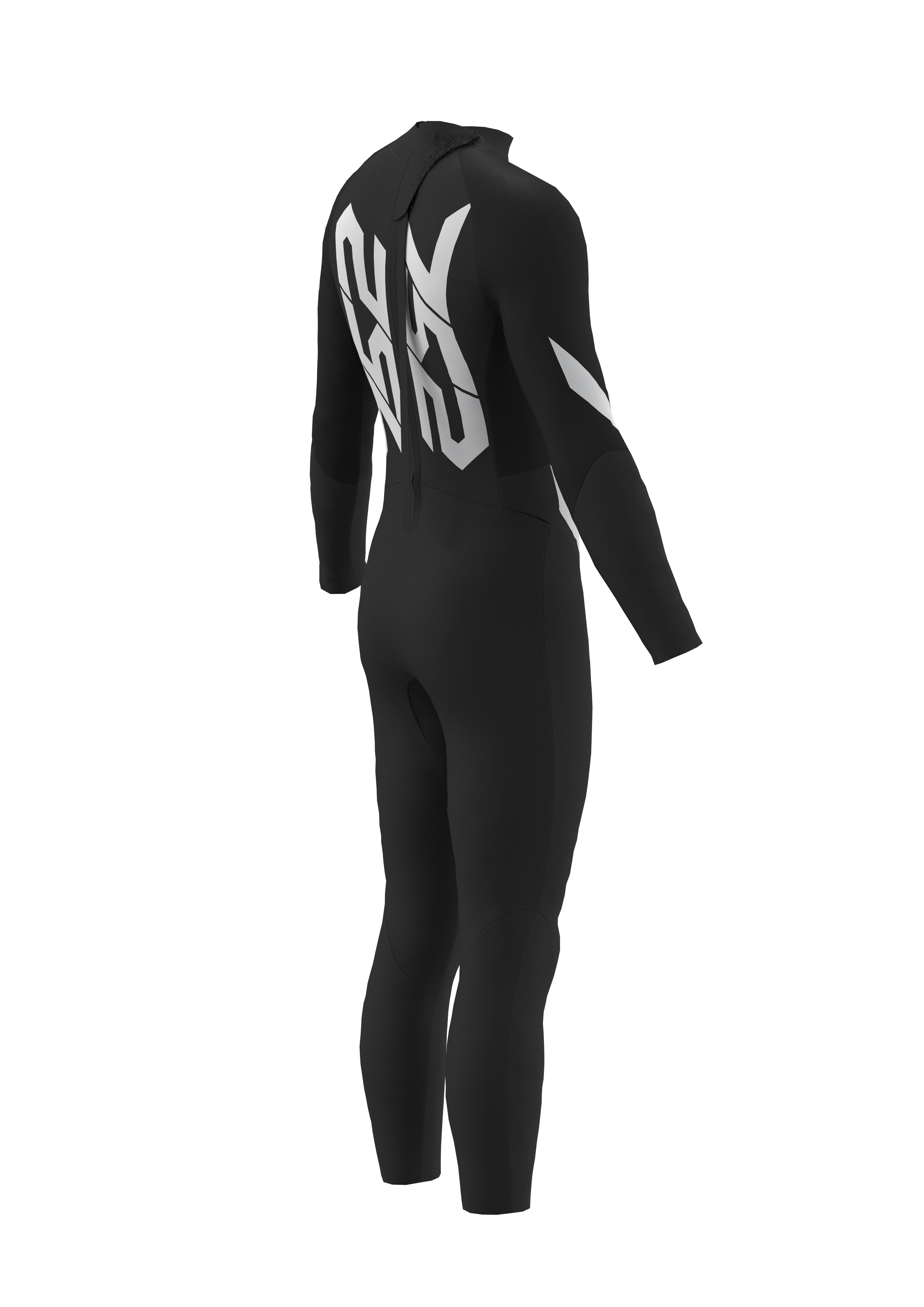

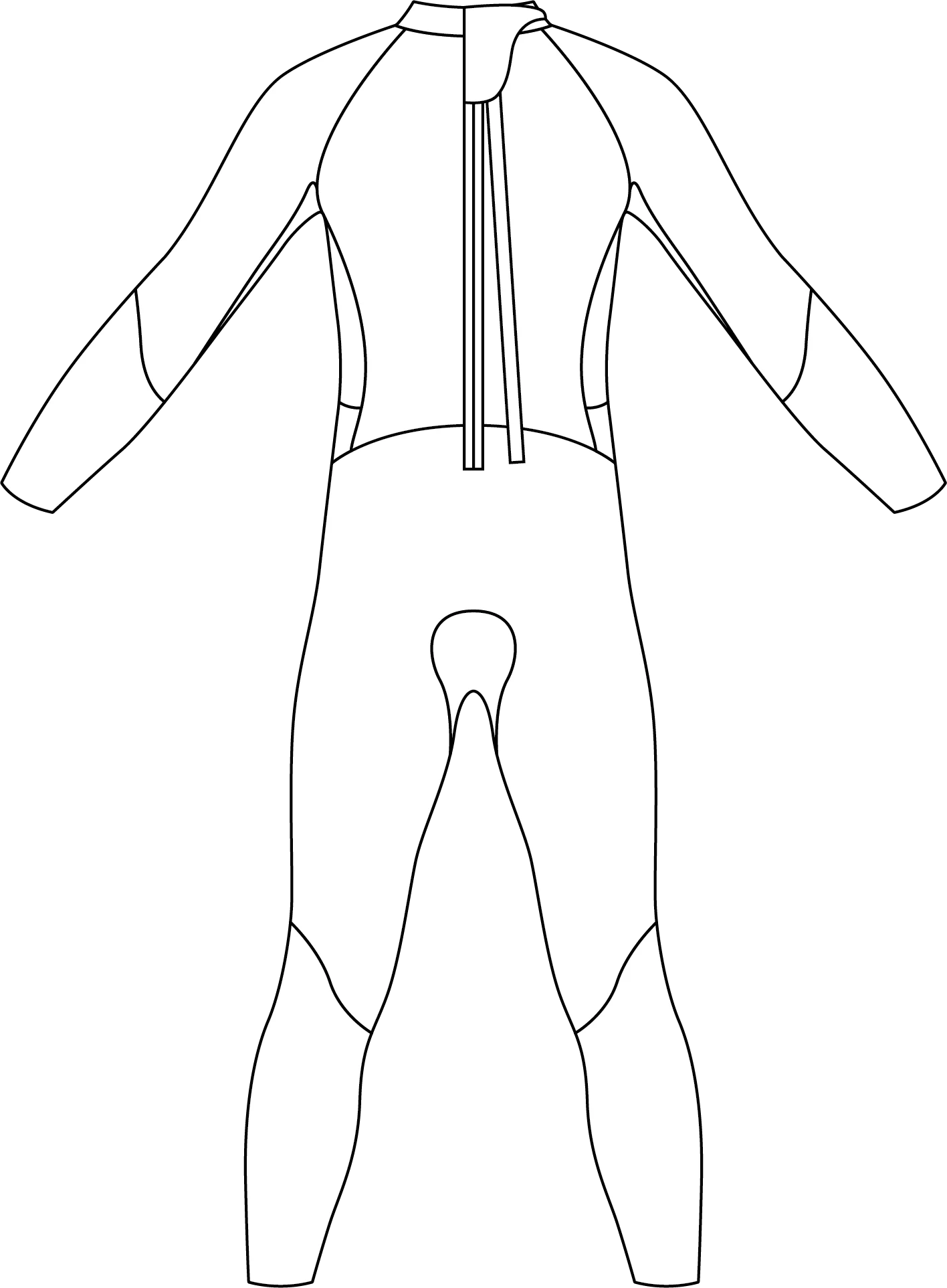

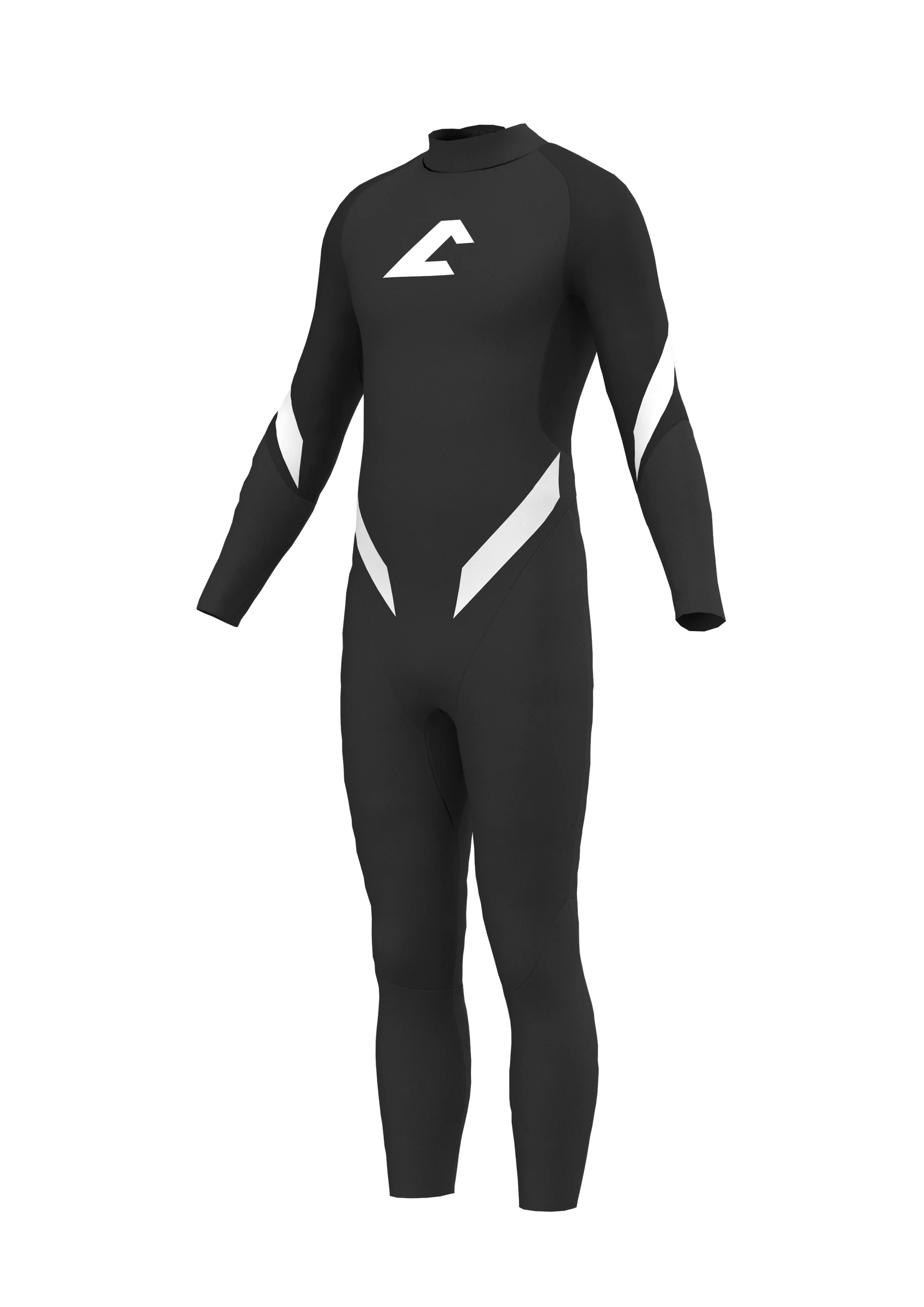

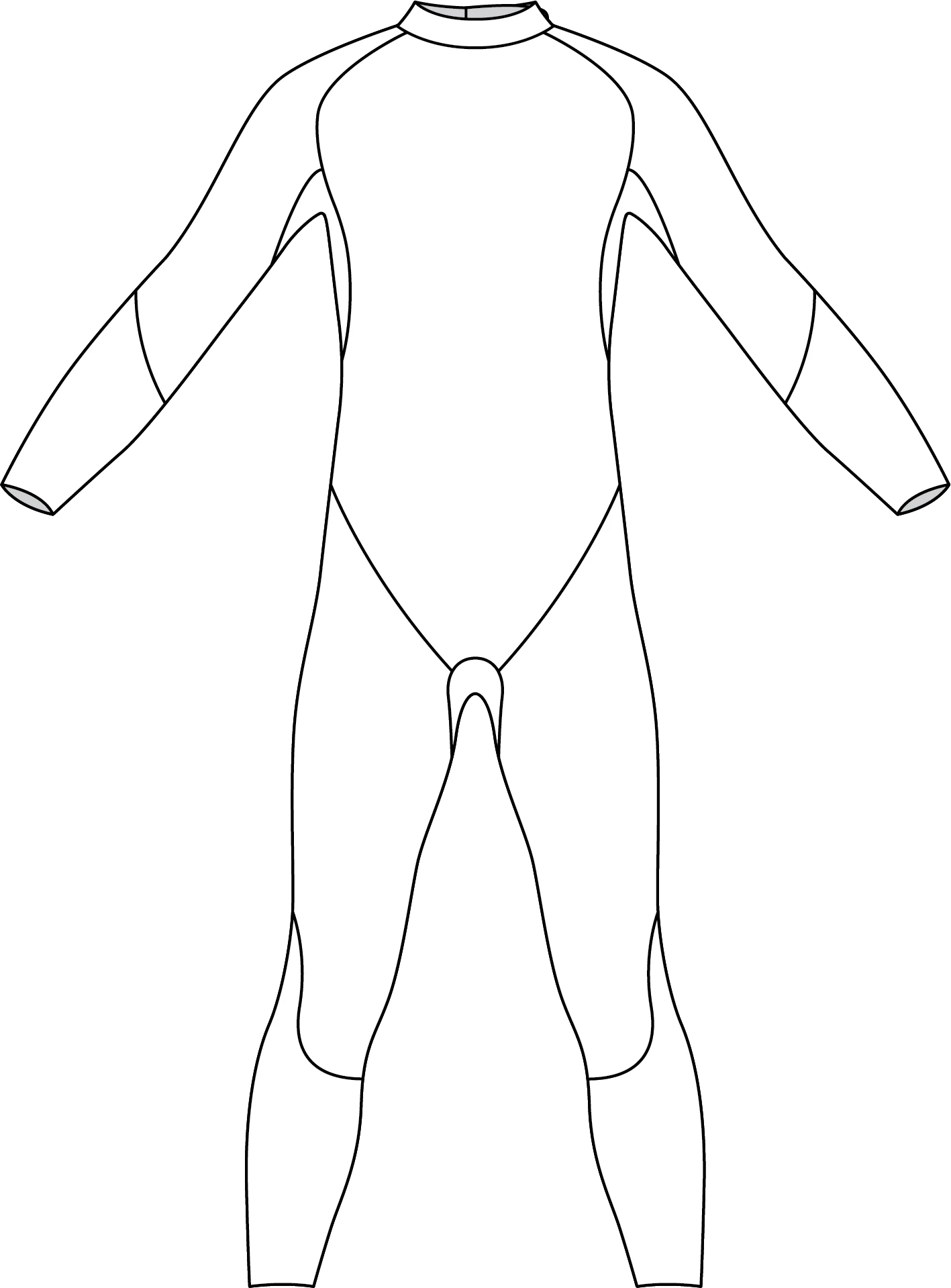

S OW 02 WS
Wetsuit
White Render
Coloured
Articulated sleeves · Crotch gusset · Underarm gusset

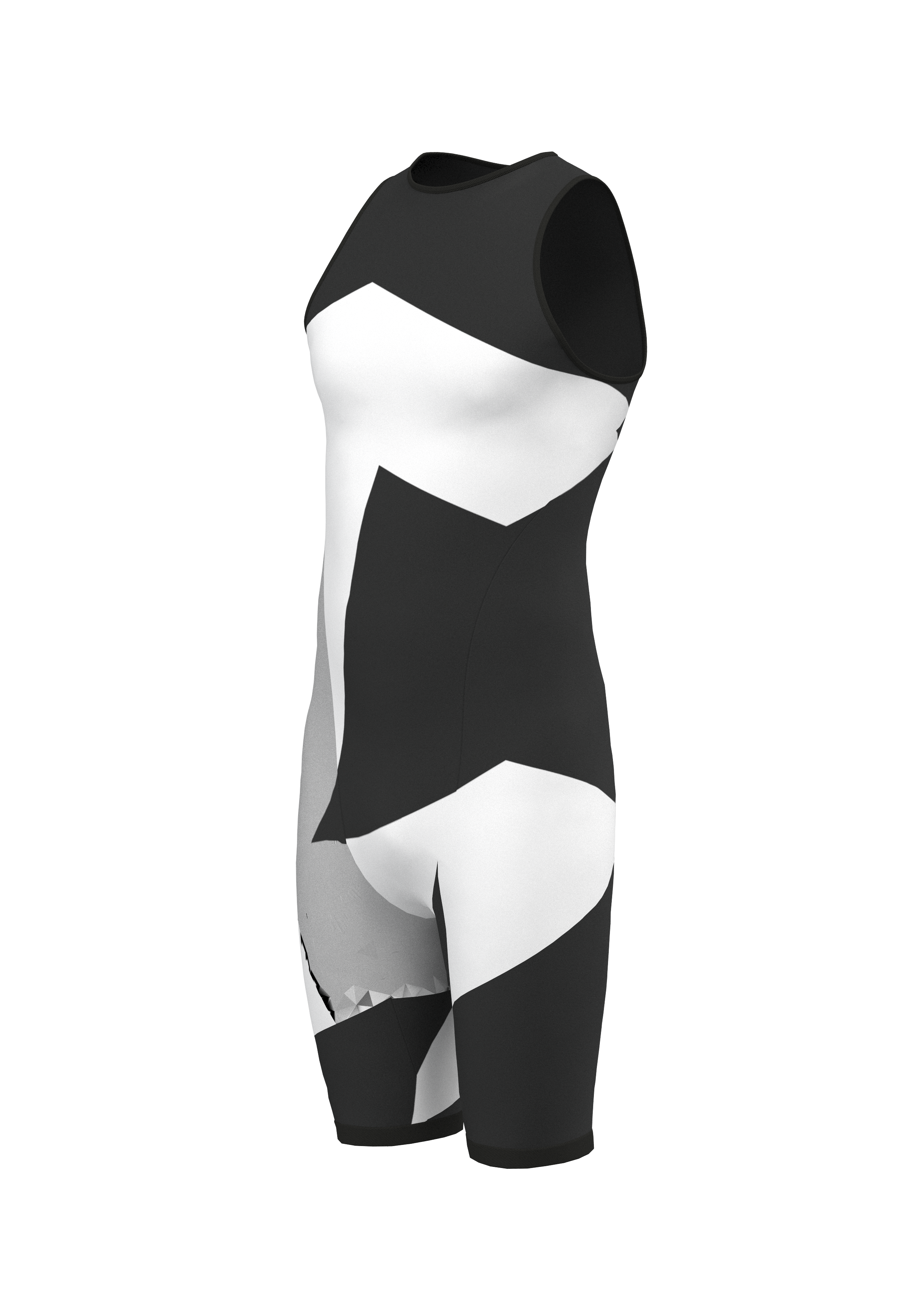

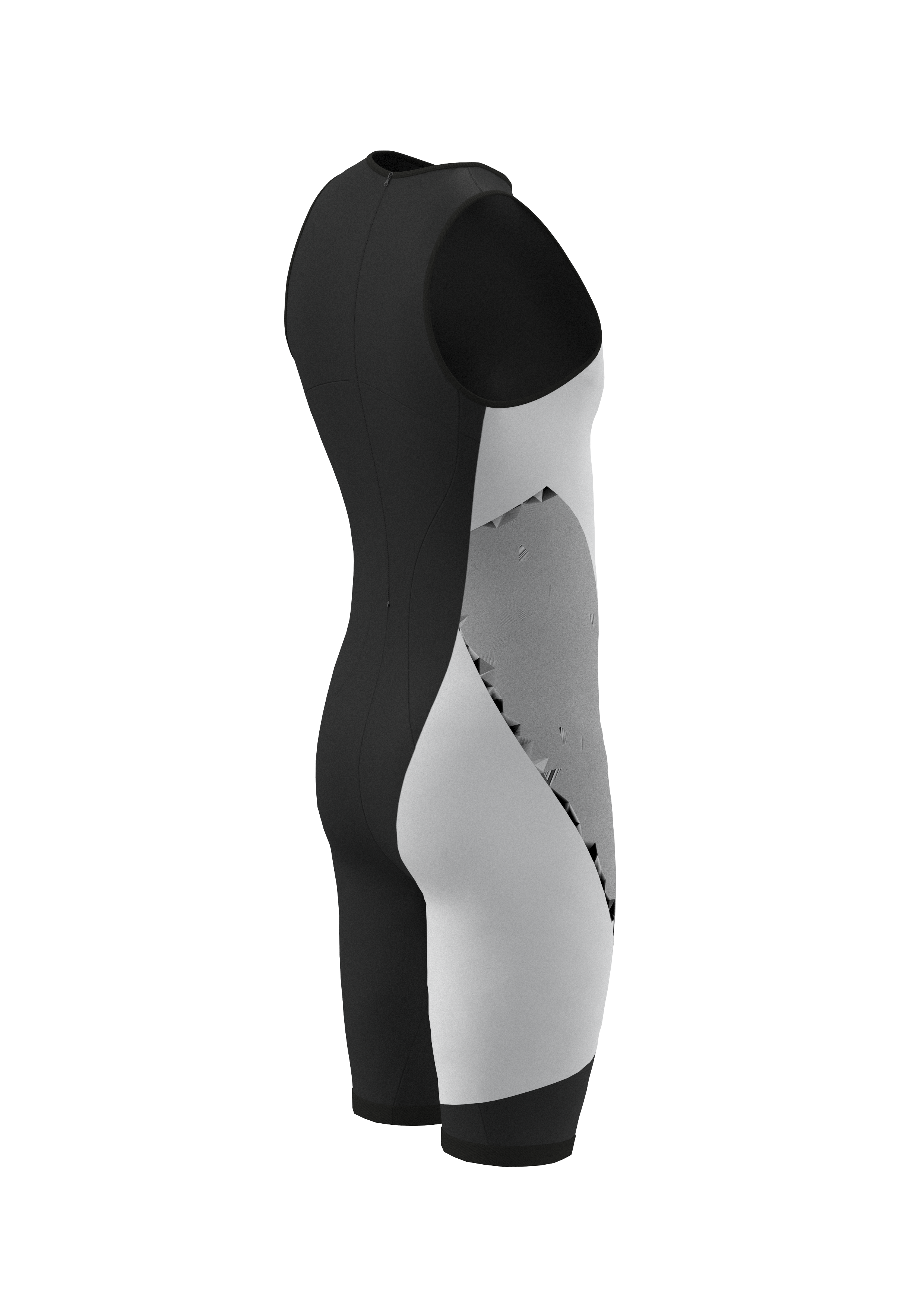

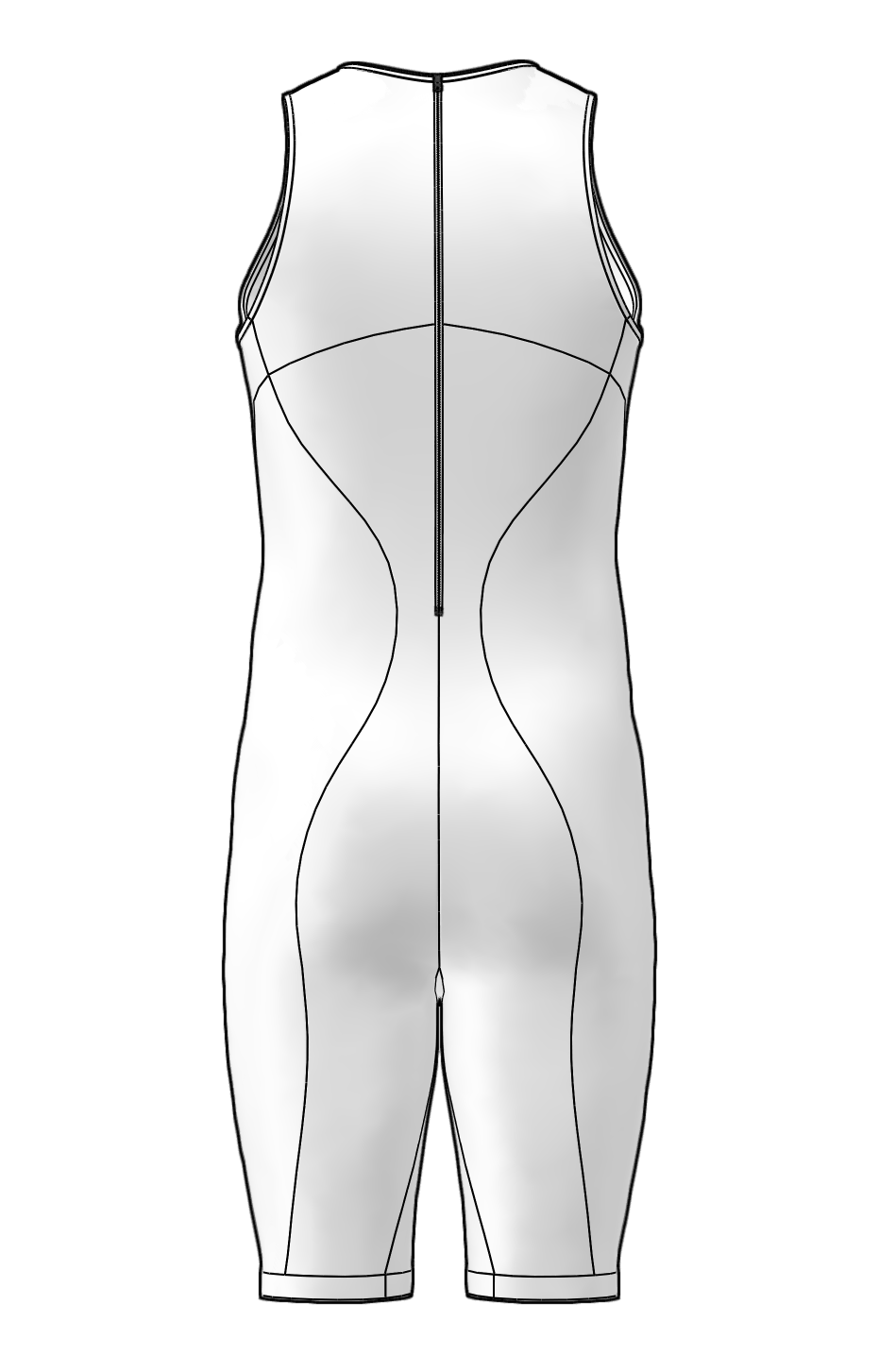

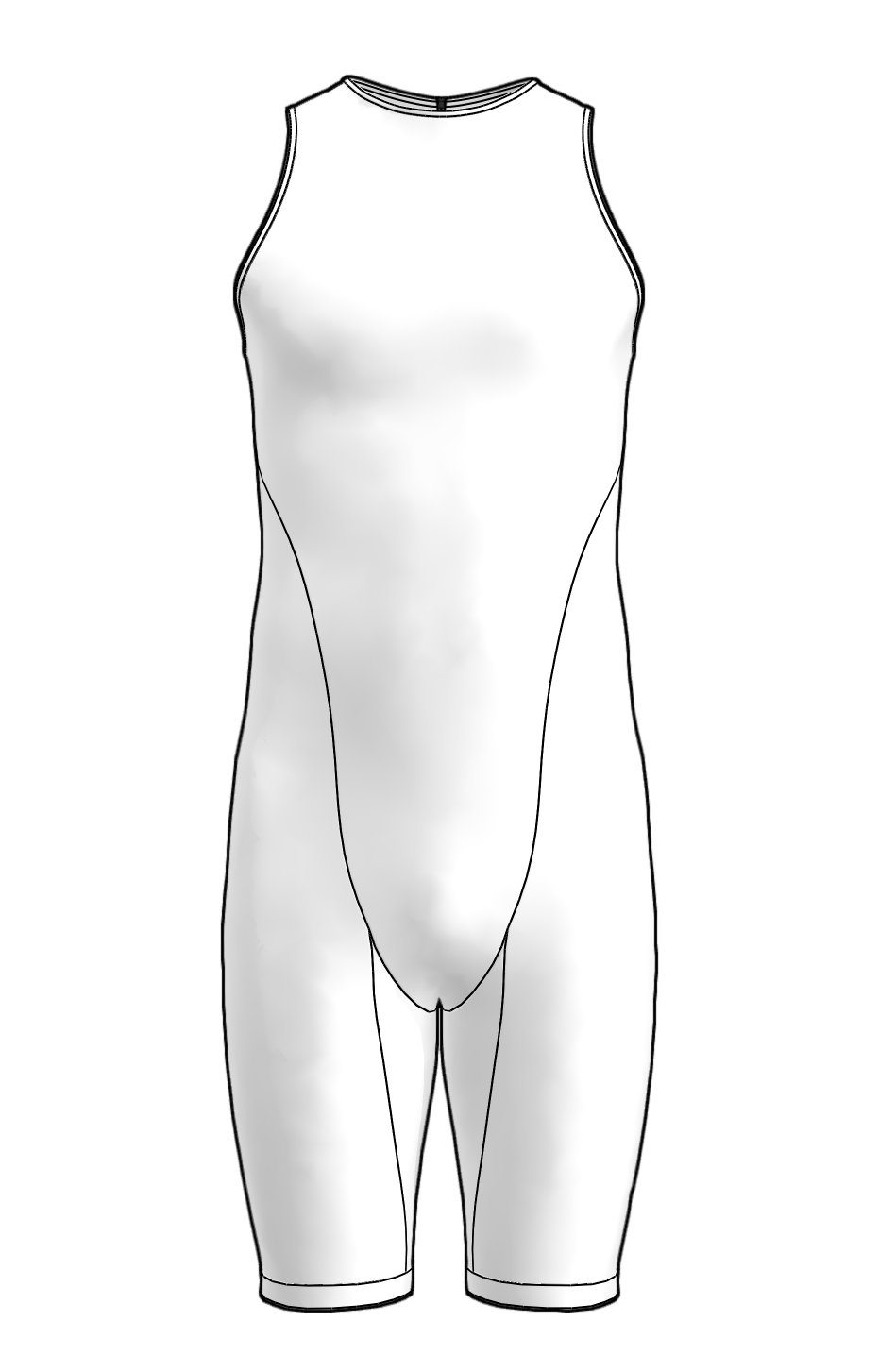

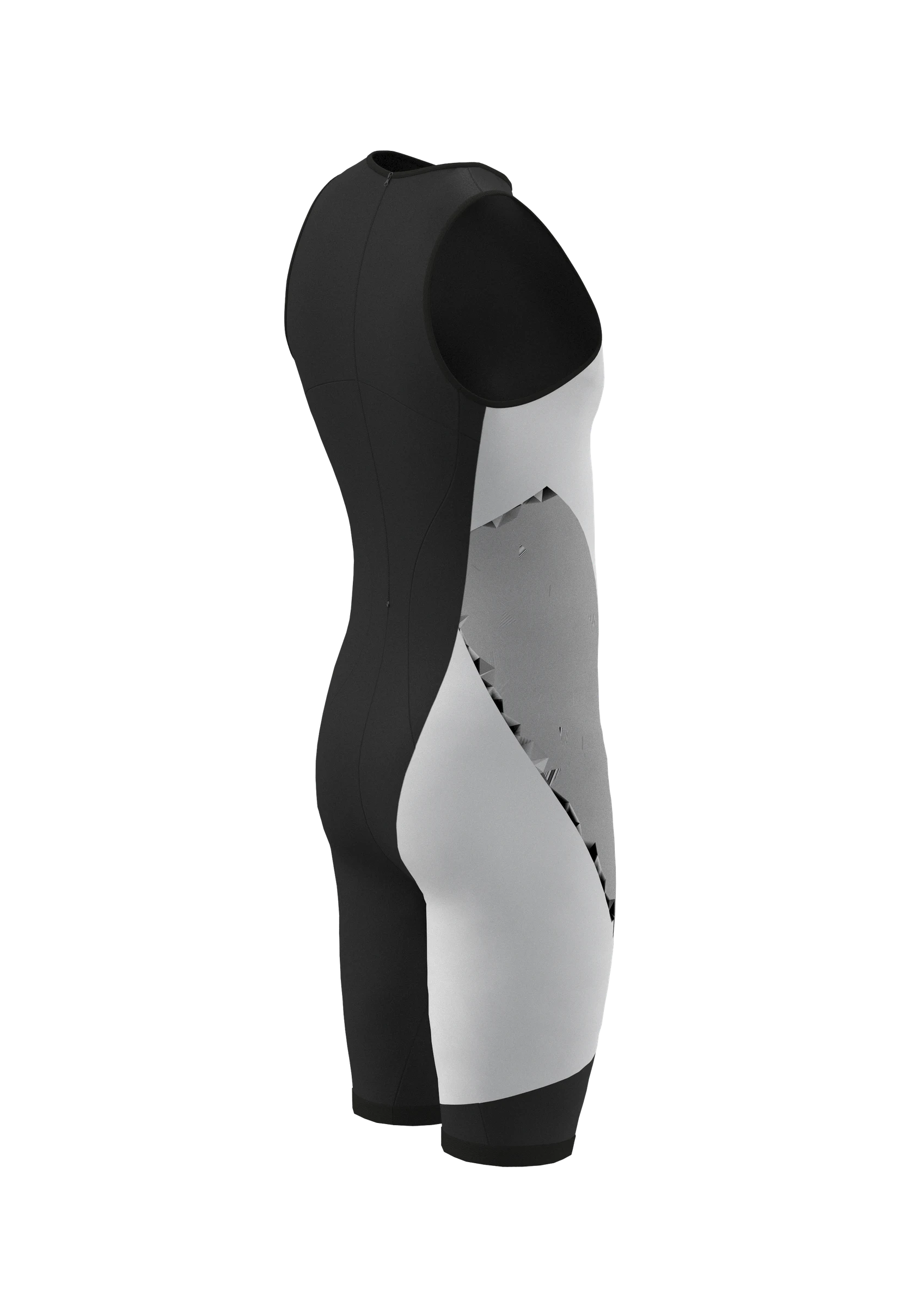

S HY 04 SWK
Swimskin
White Render
Coloured
Crotch gusset · Hydro angled seams
Running
Trail & Ultra · Road — R TR / R R

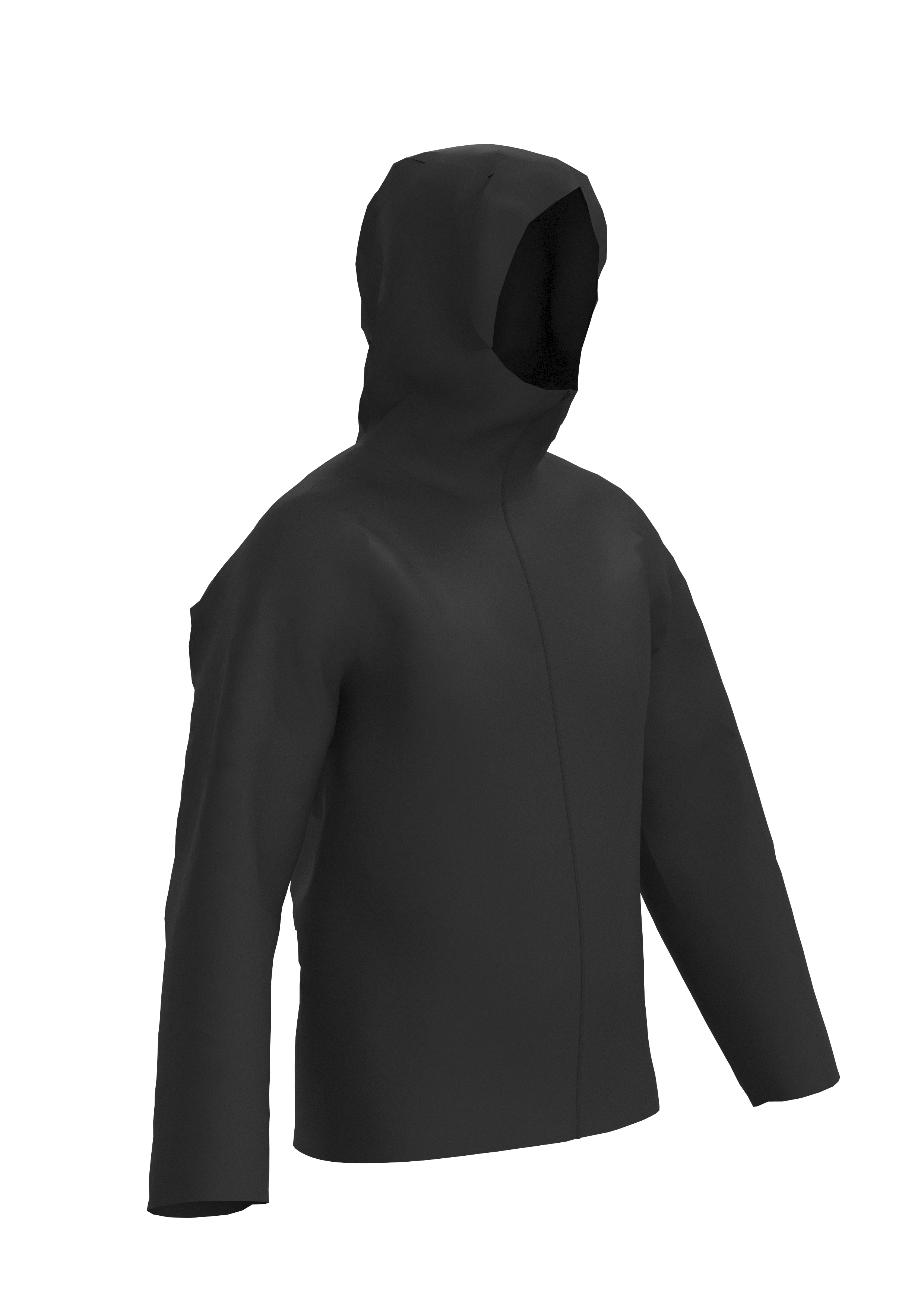

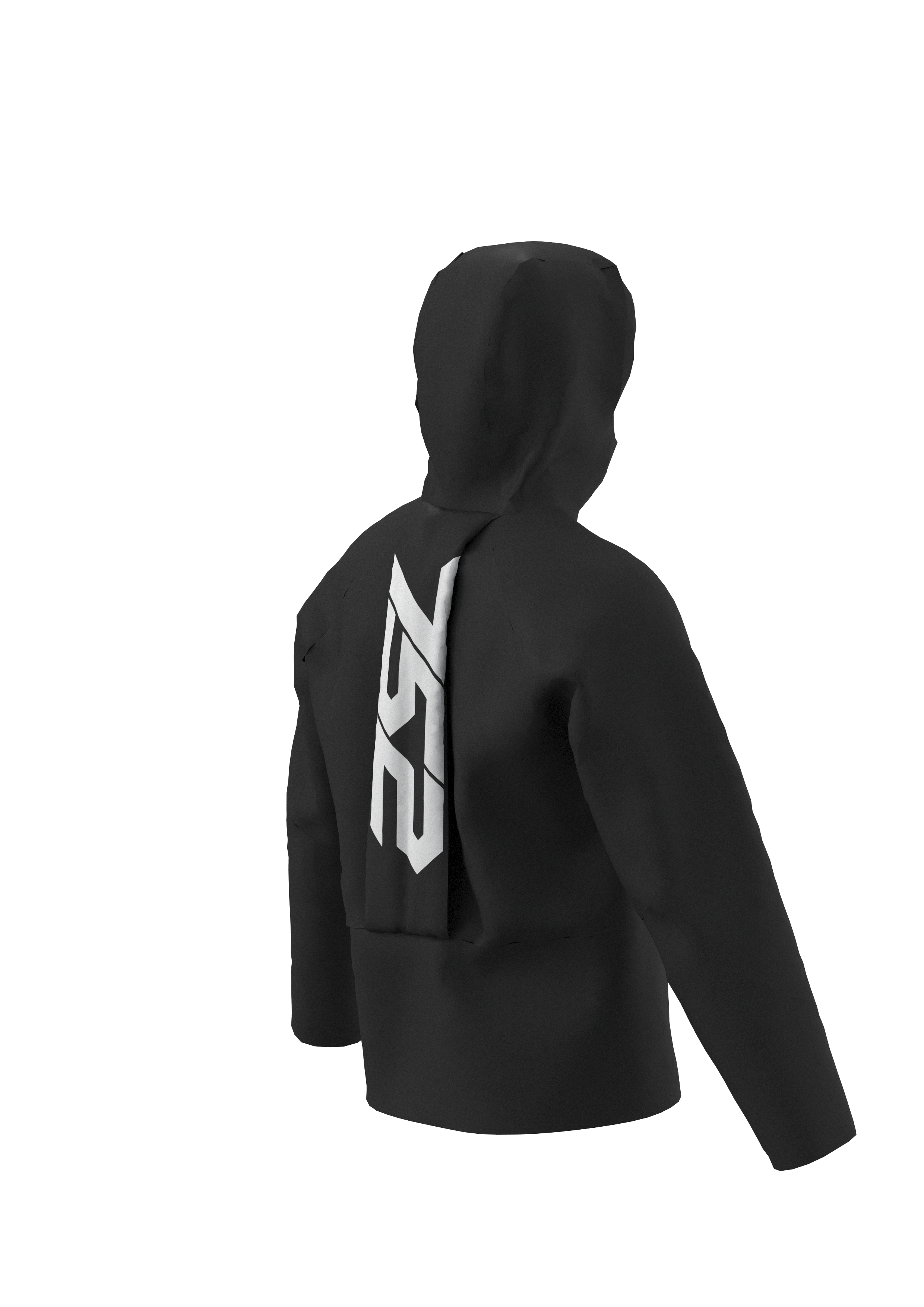

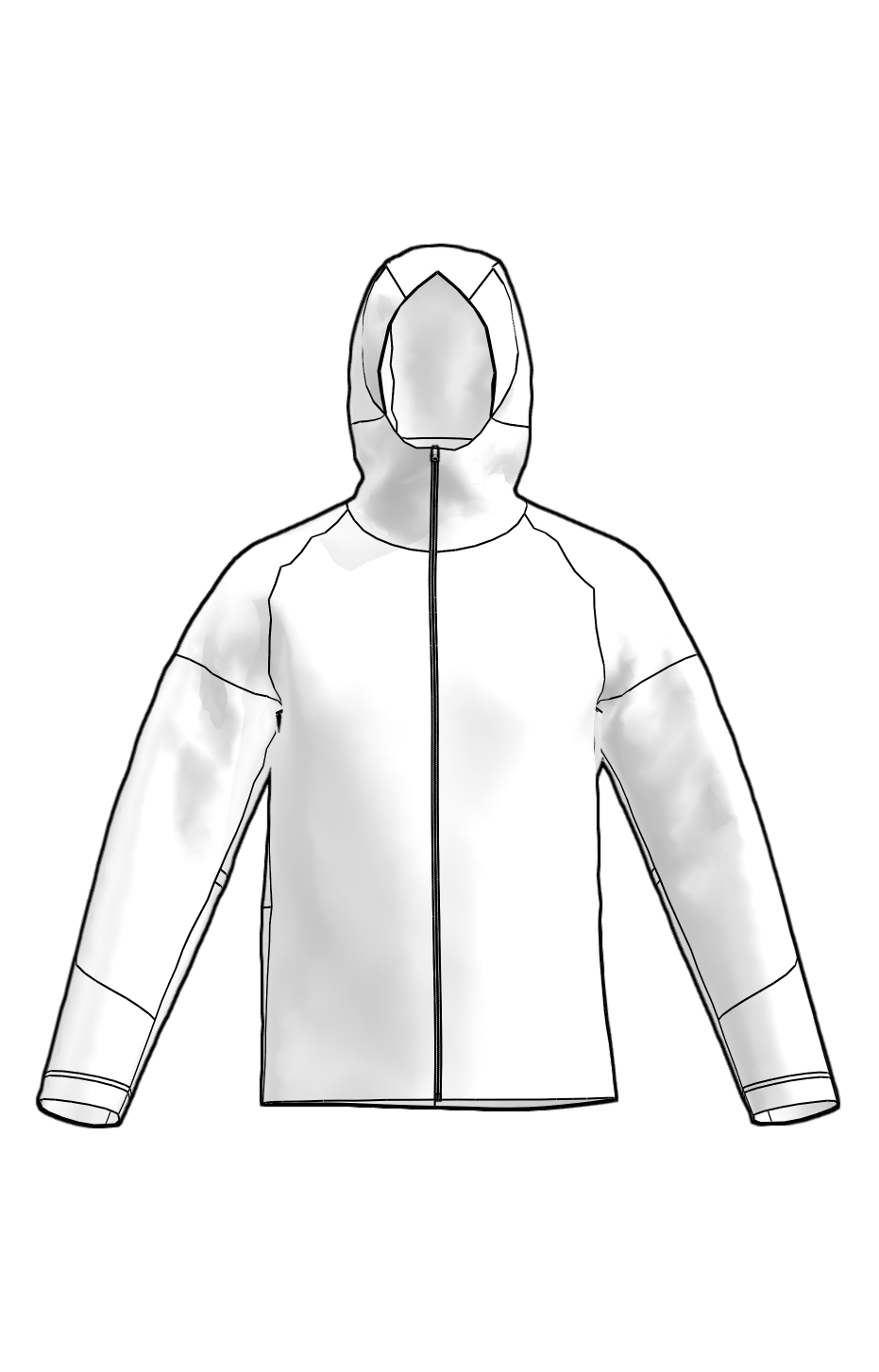

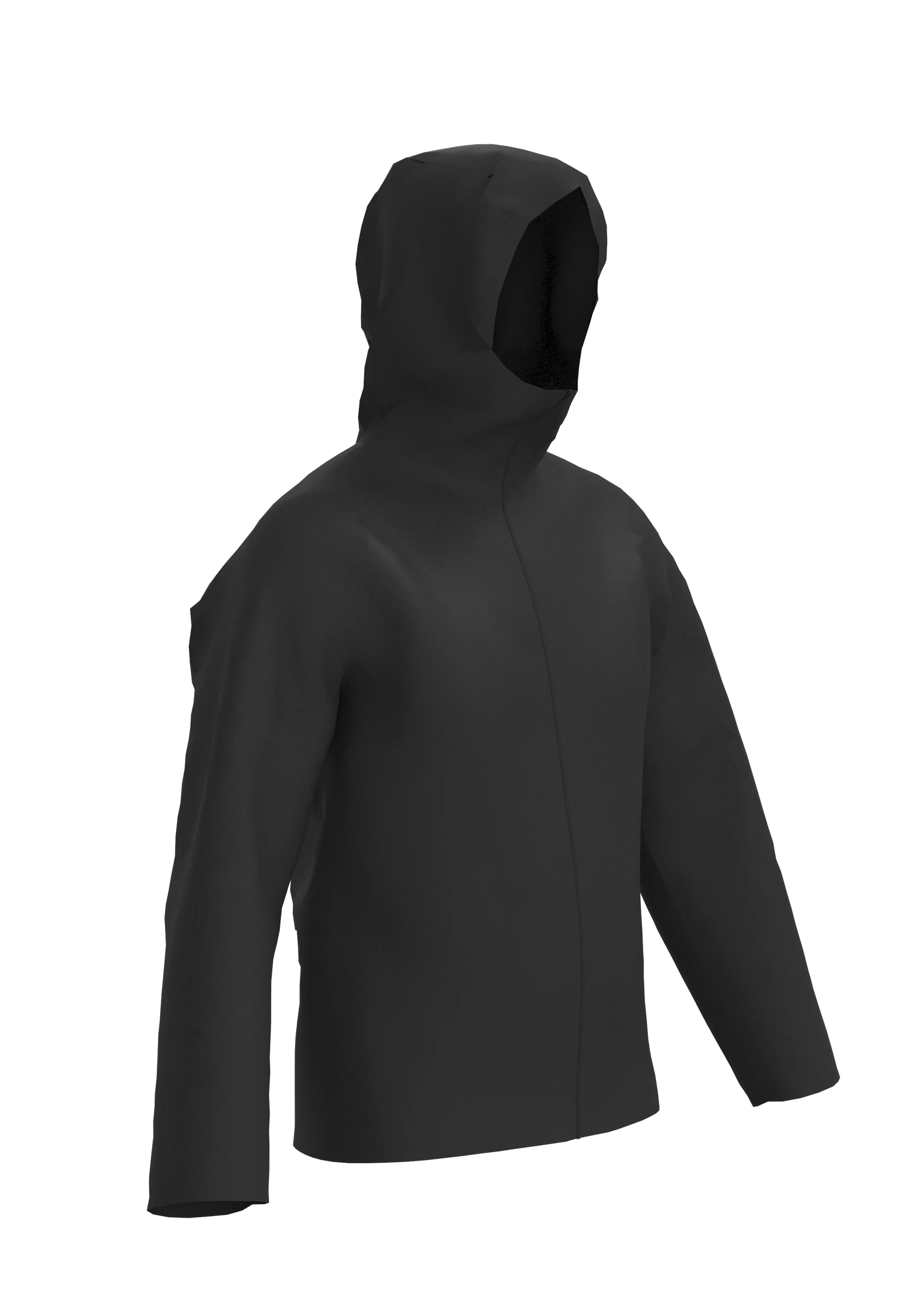

R TR 05 TJ
Trail Jacket
White Render
Coloured
Water/windproof · Seamtaped · Stretchy hood

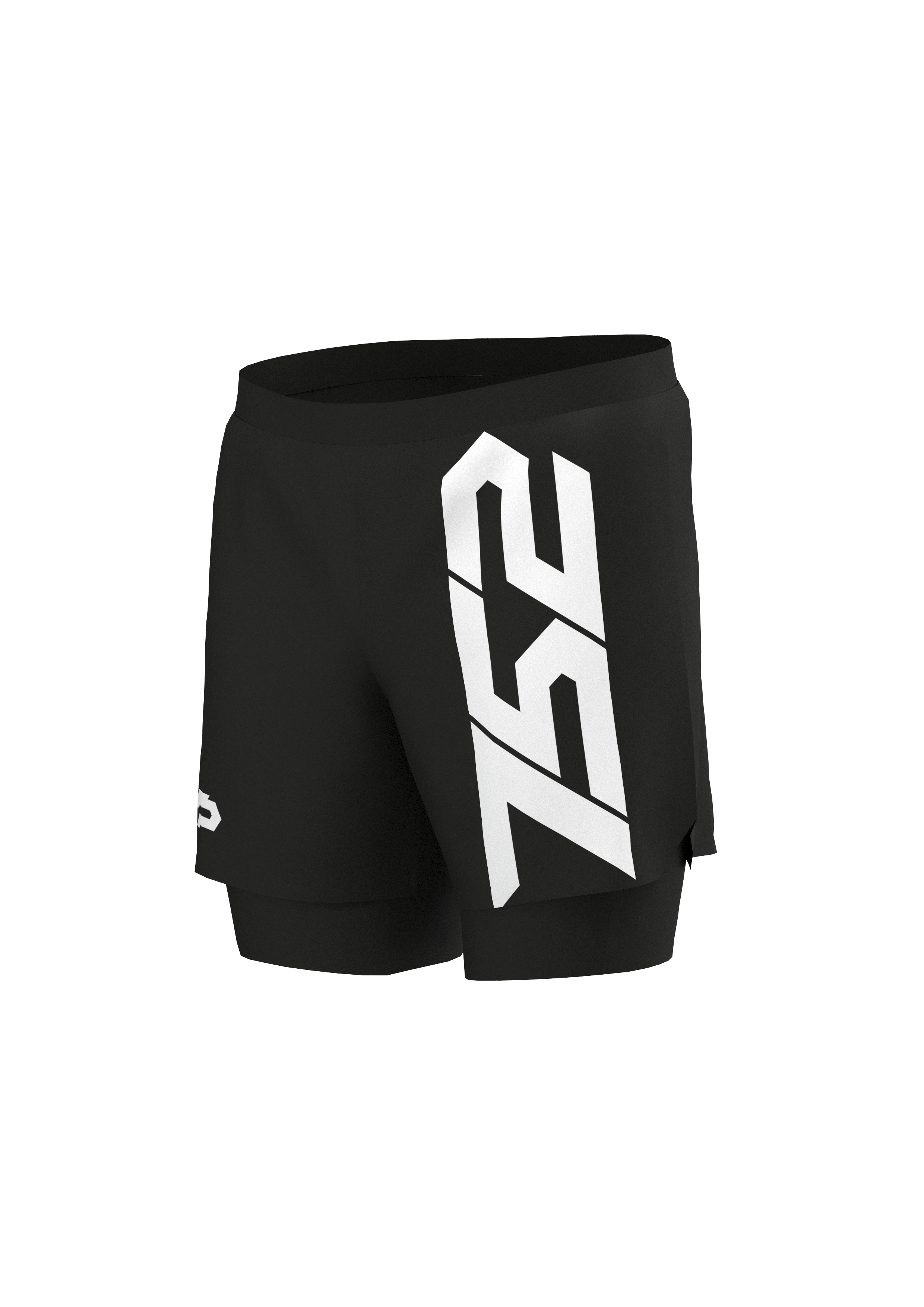

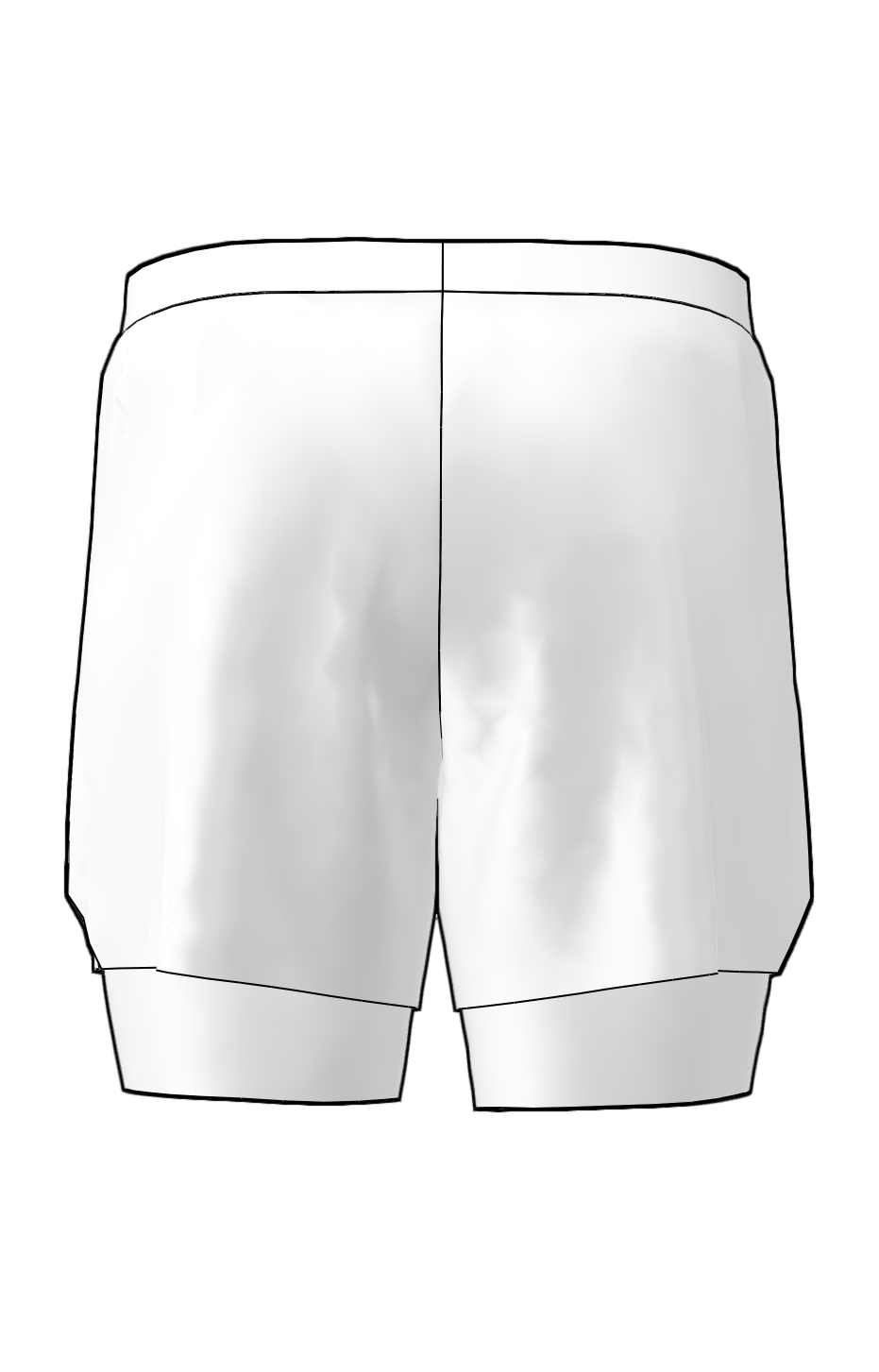

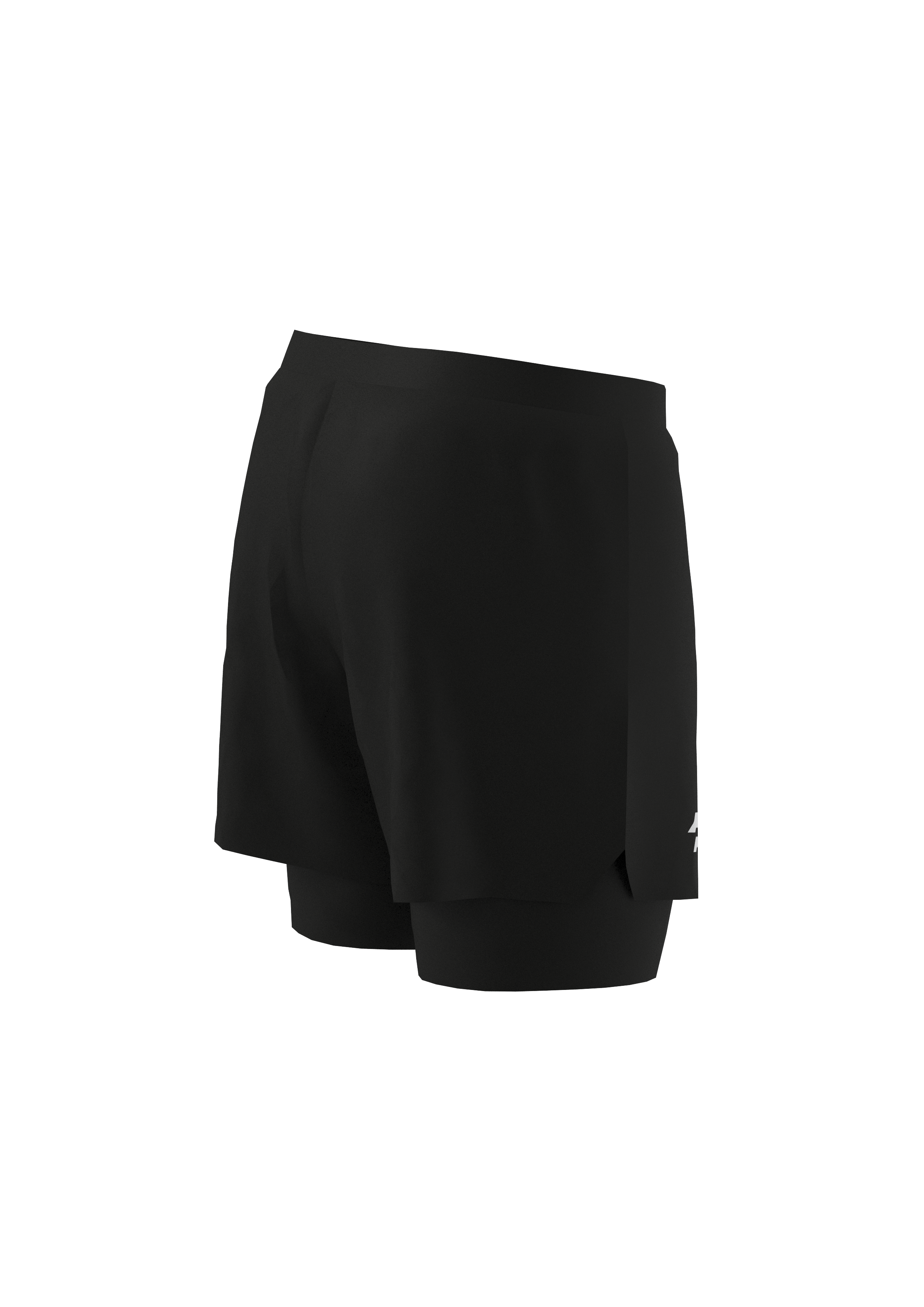

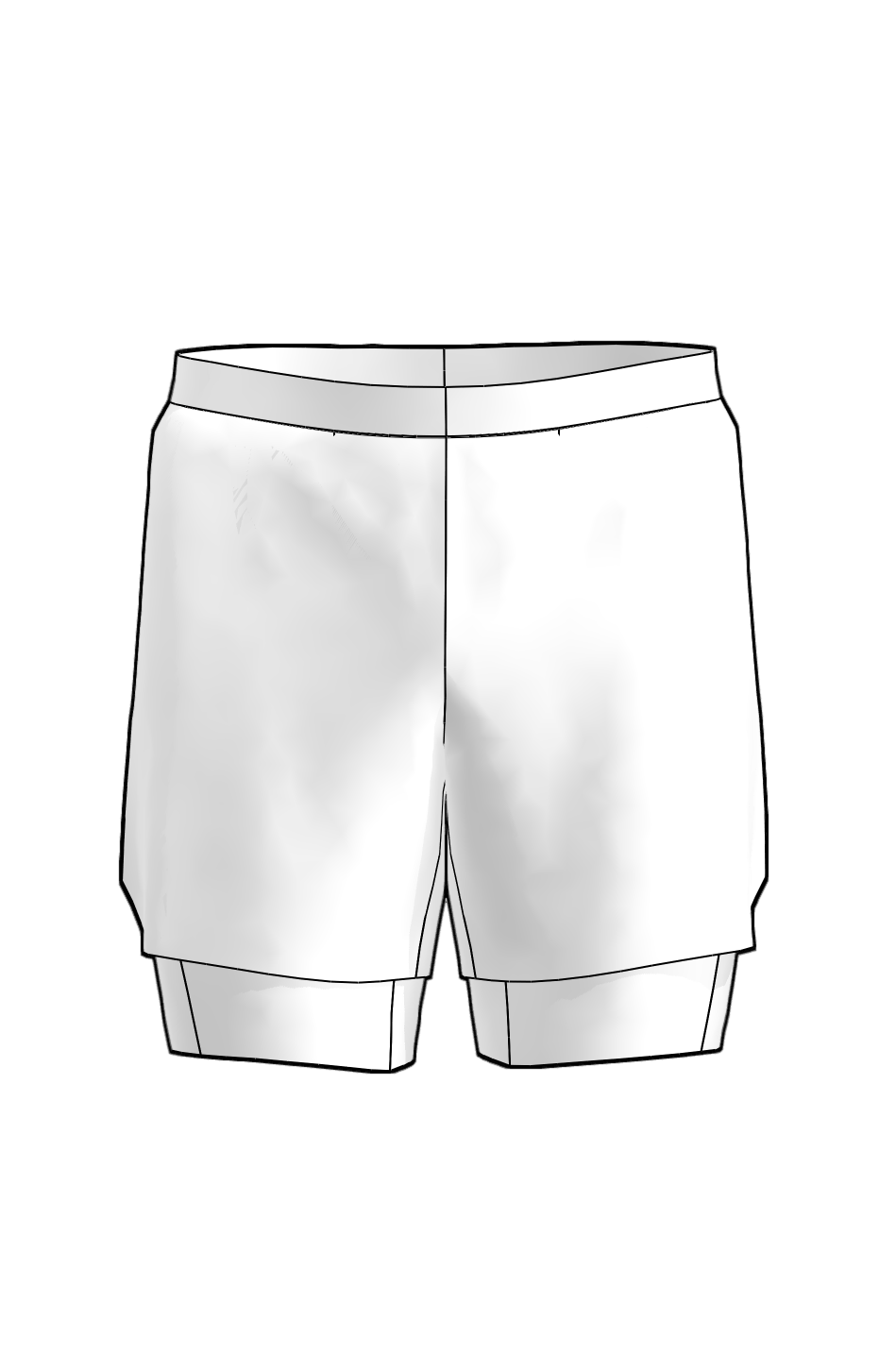

R TR 02 TS
Trail Shorts
White Render
Coloured
Compression underlayer · F10 Polyester

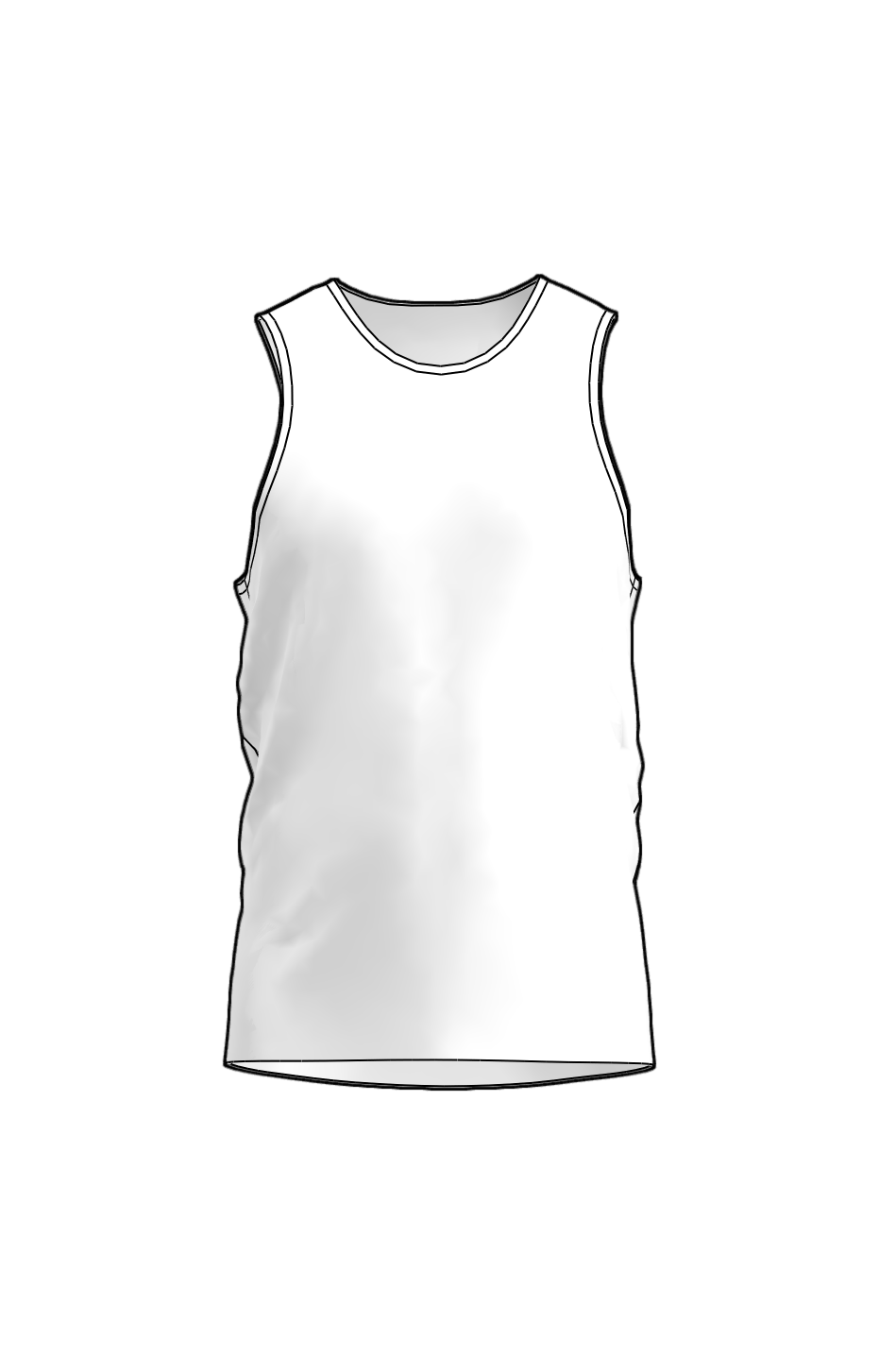

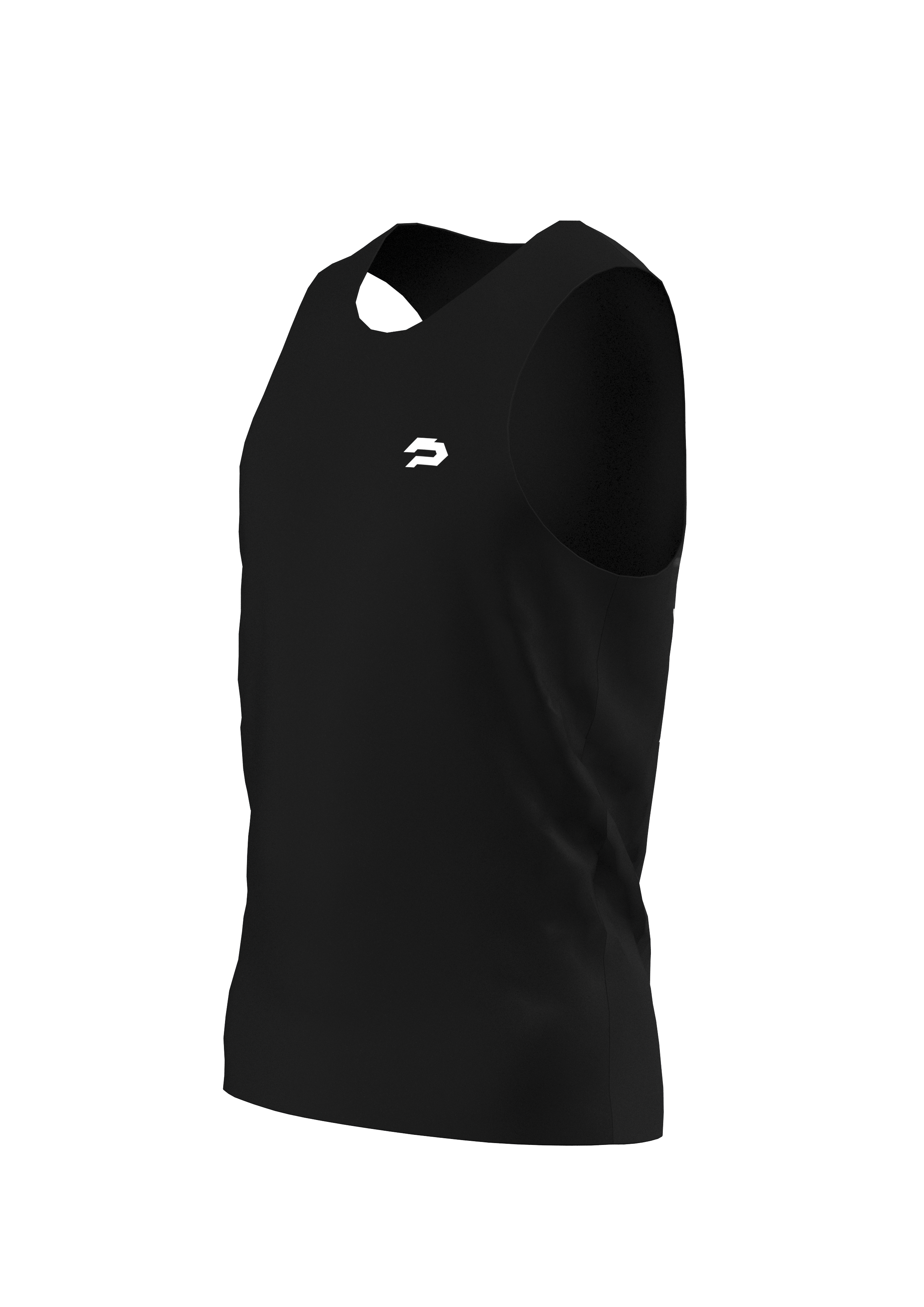

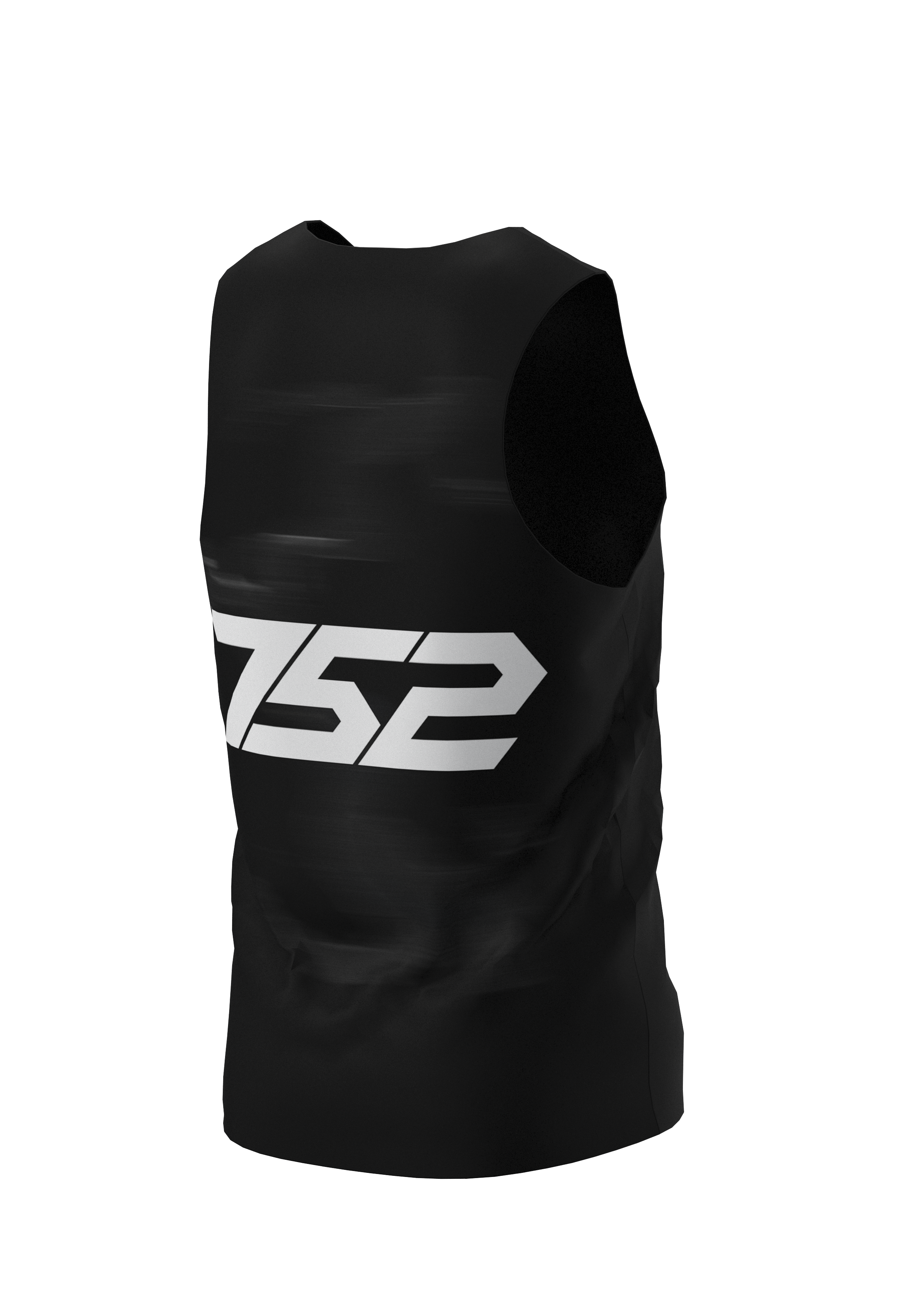

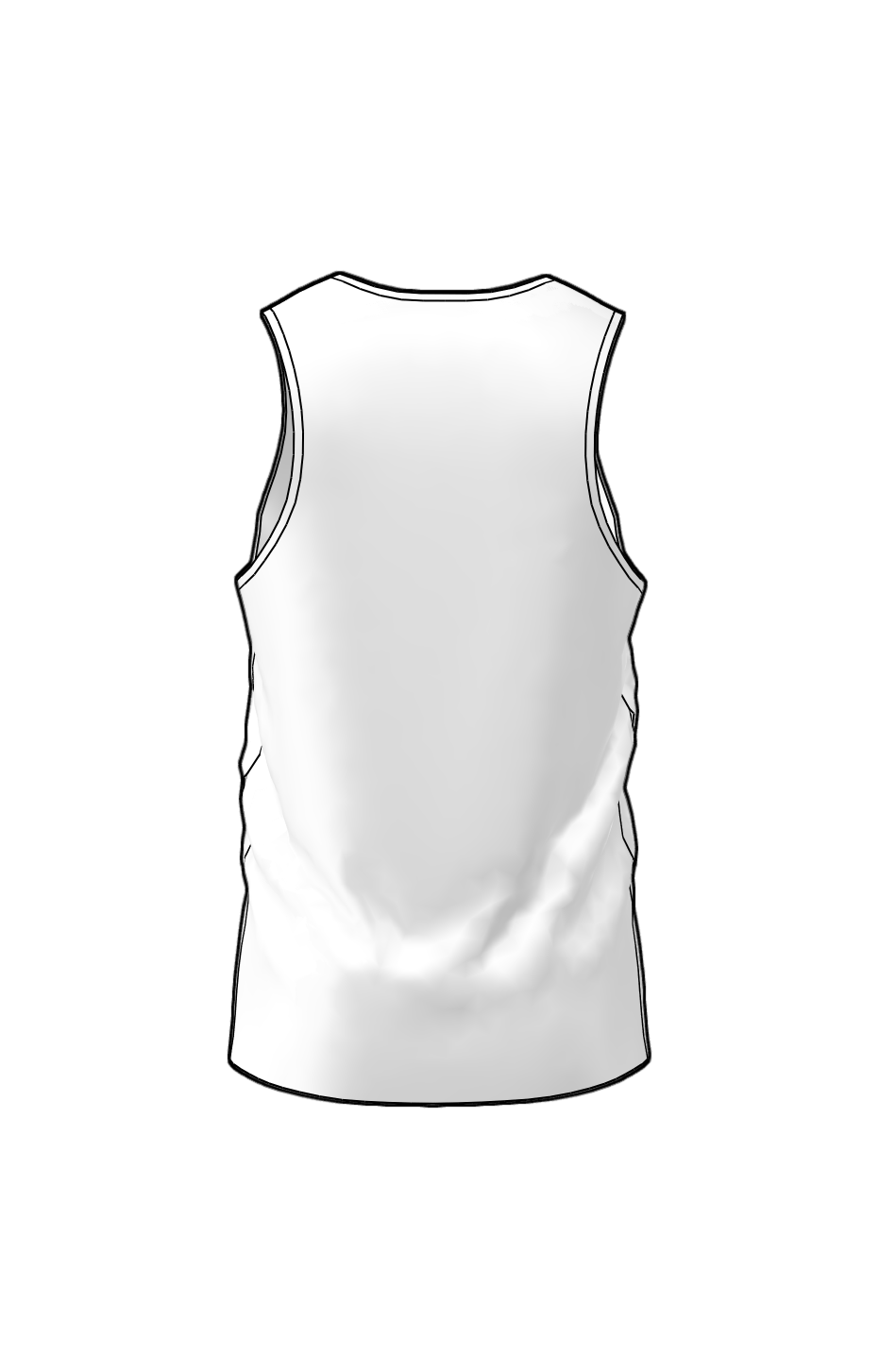

R R 01 RS
Singlet
White Render
Coloured
Breathable · Lightweight · 100% Polyester

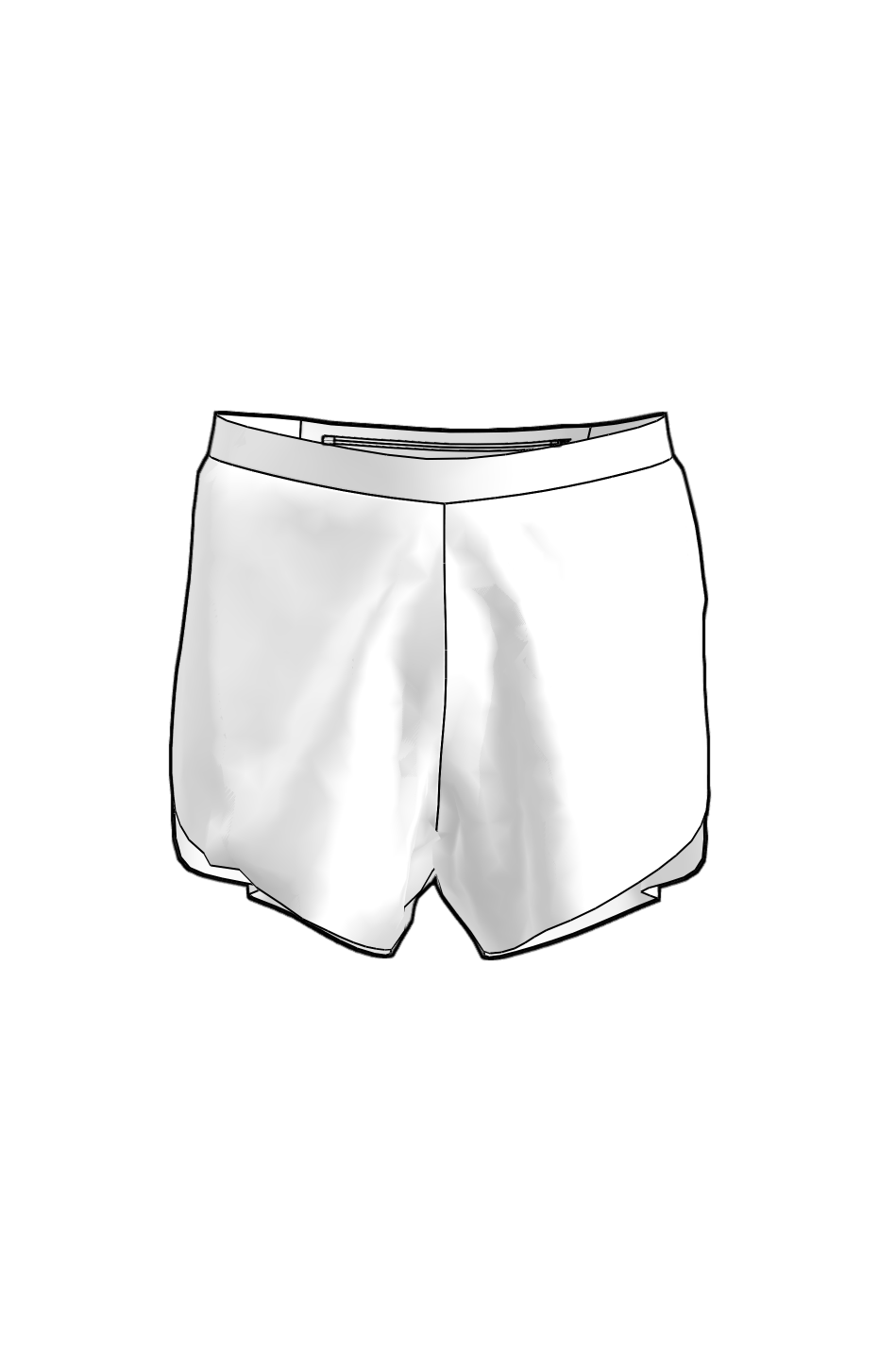

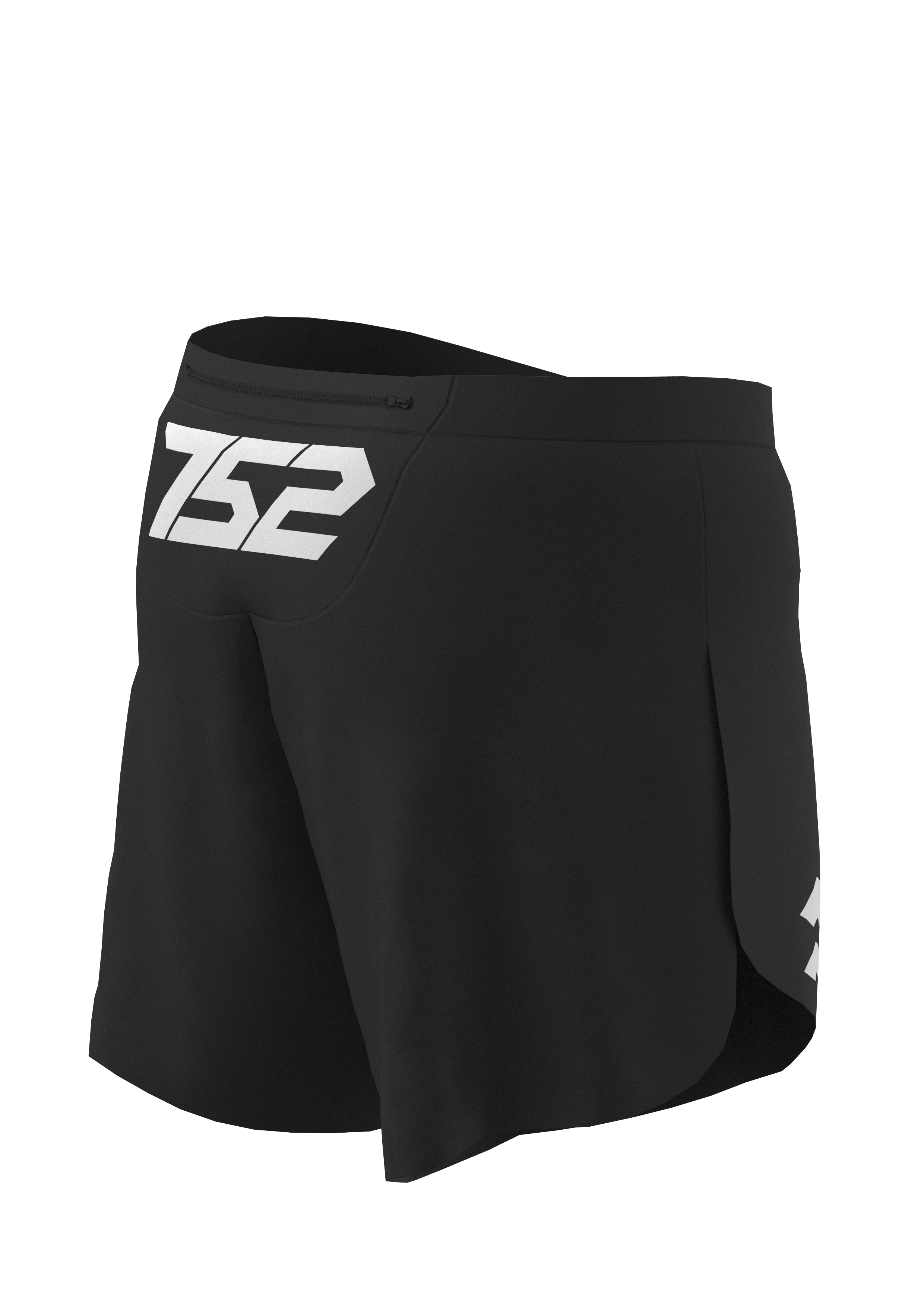

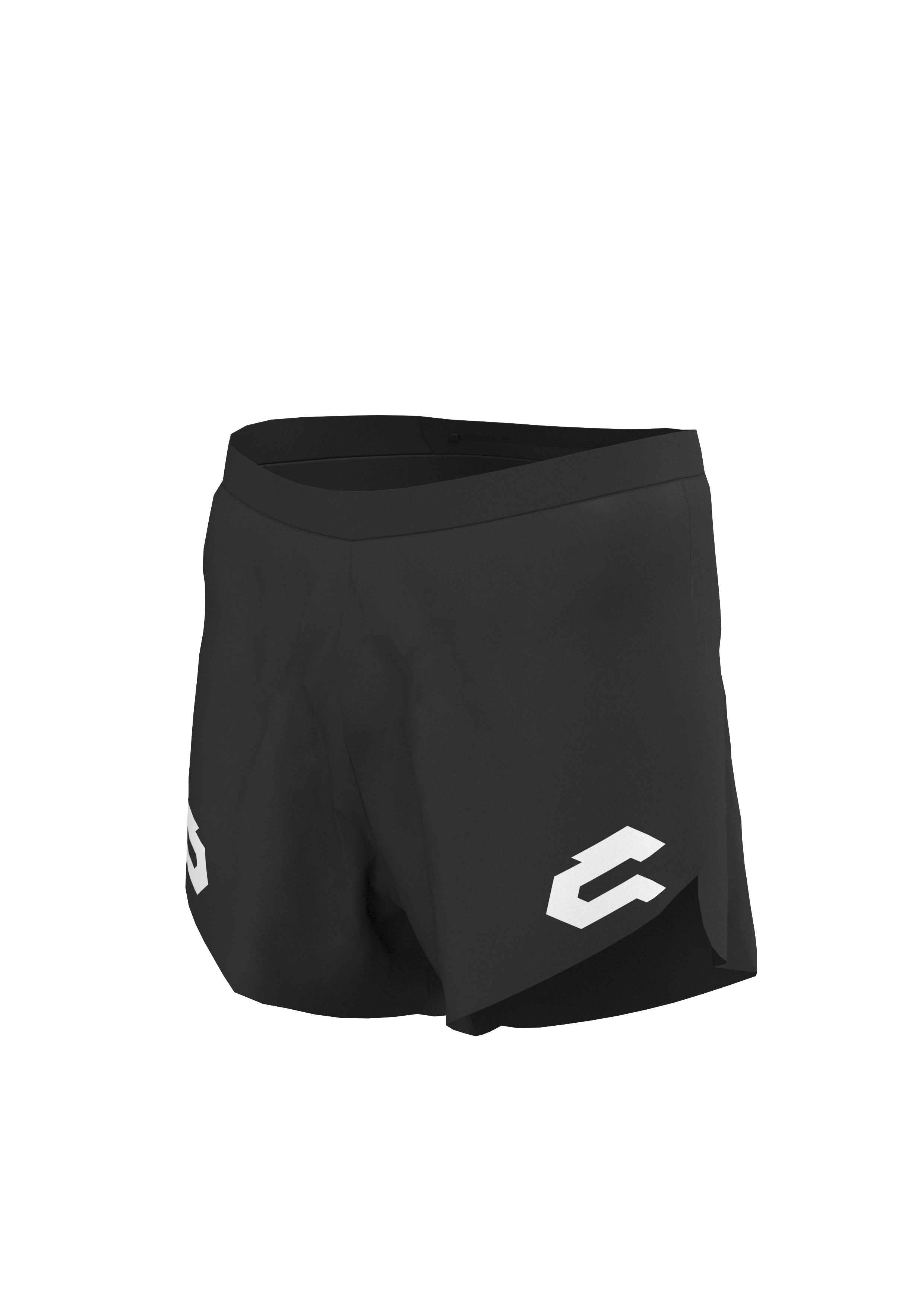

R R 01 SLS

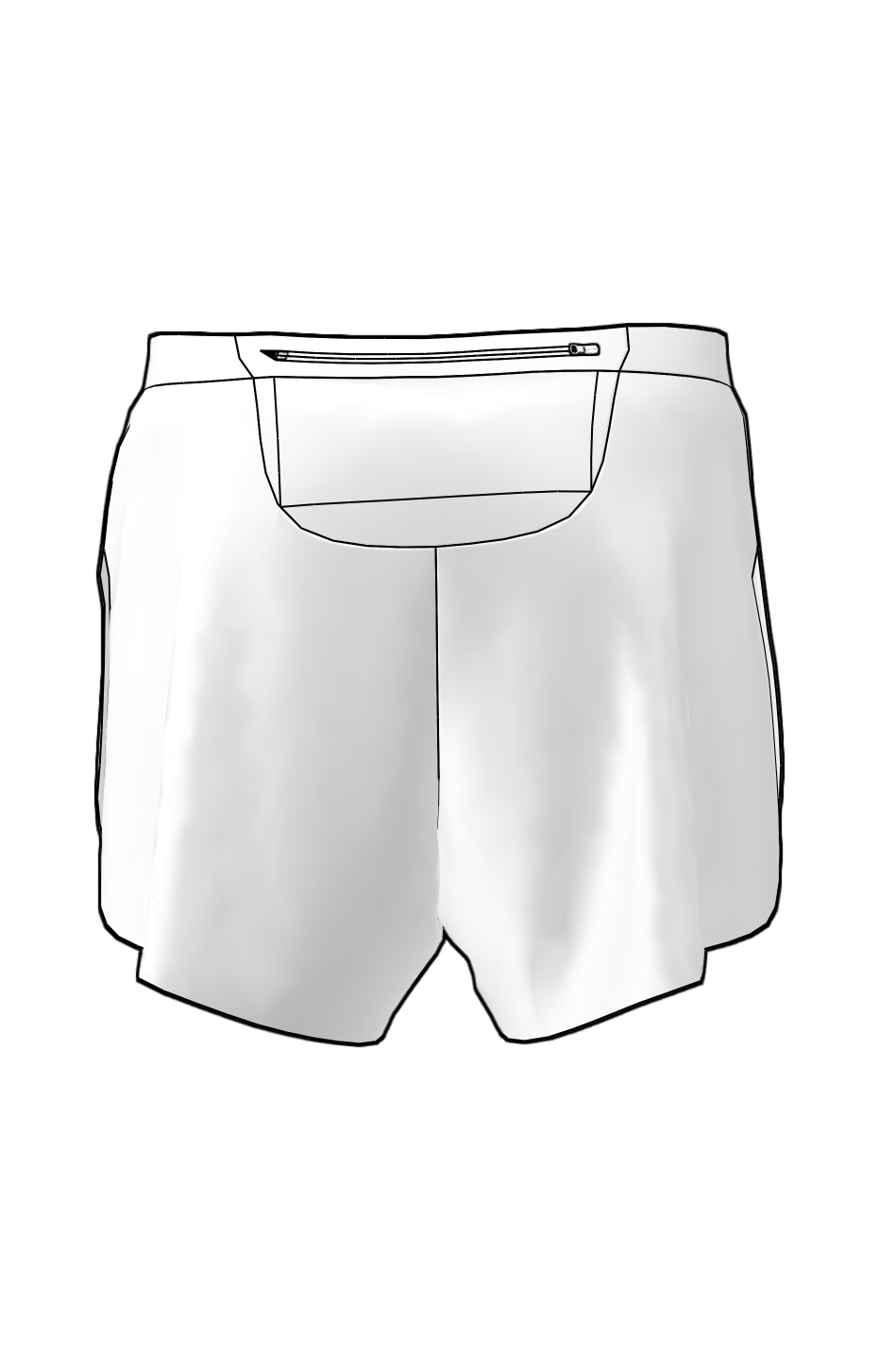

Split Shorts
White Render
Coloured
Lightweight · Gel pocket · Underlayer

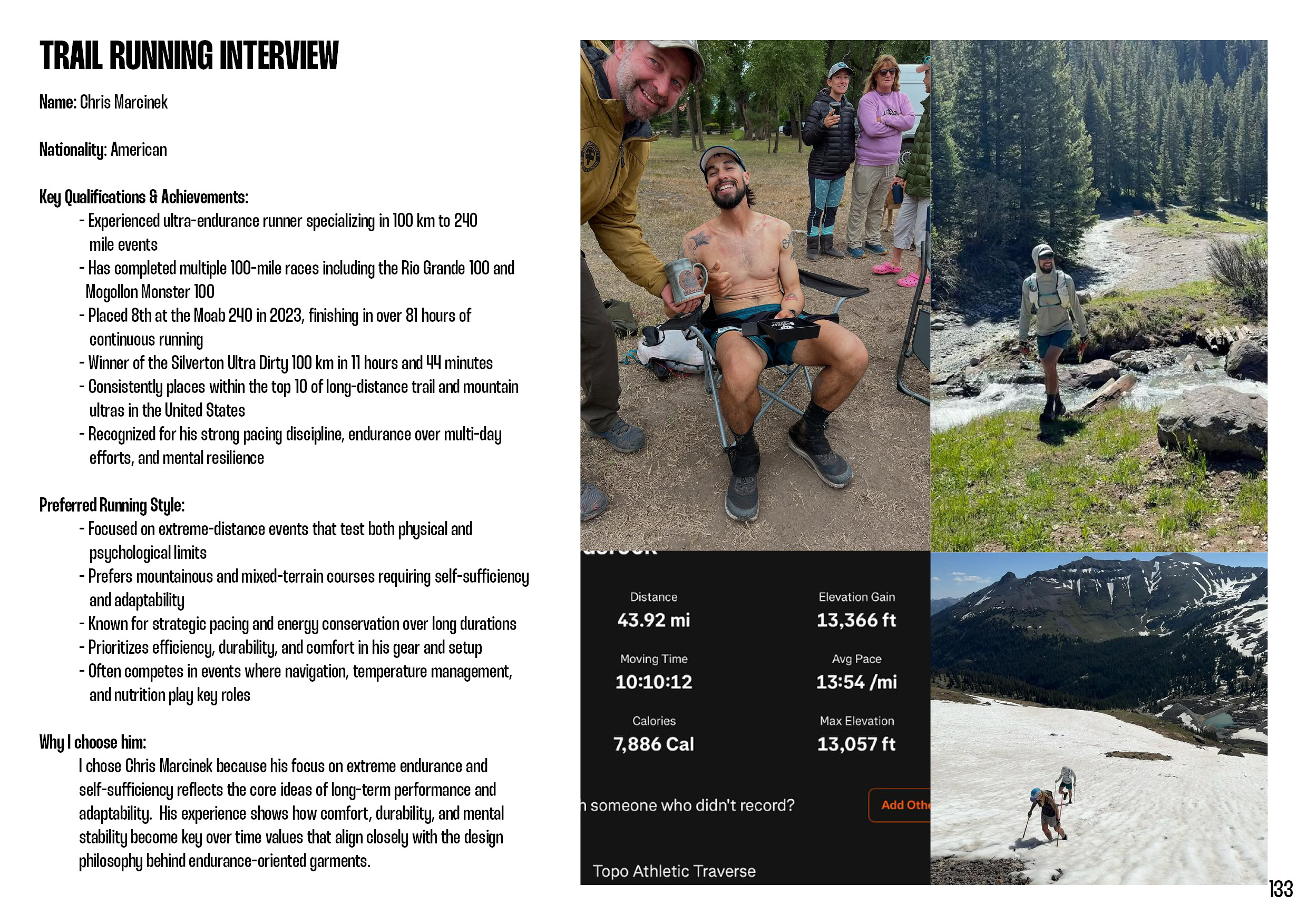

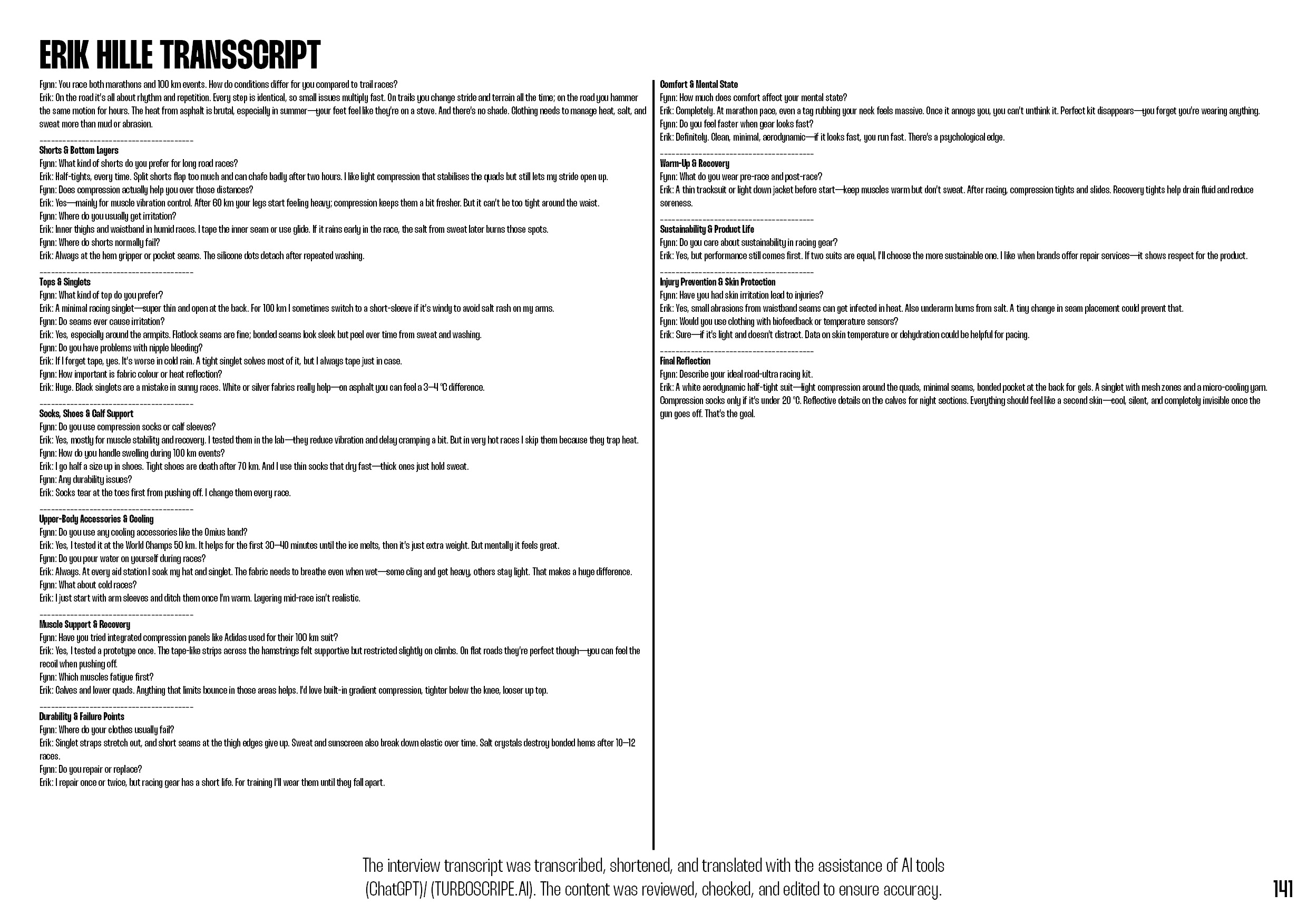

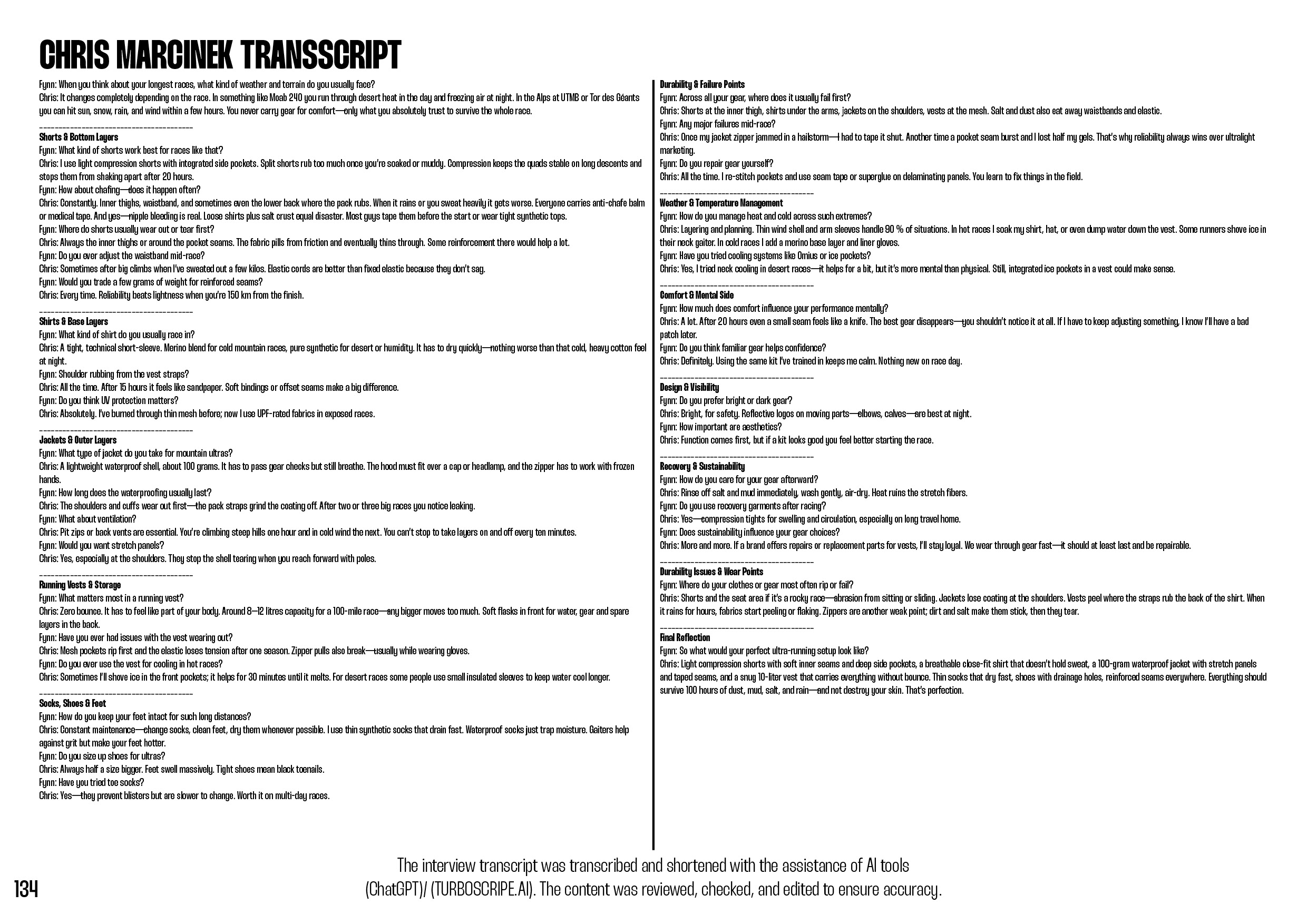

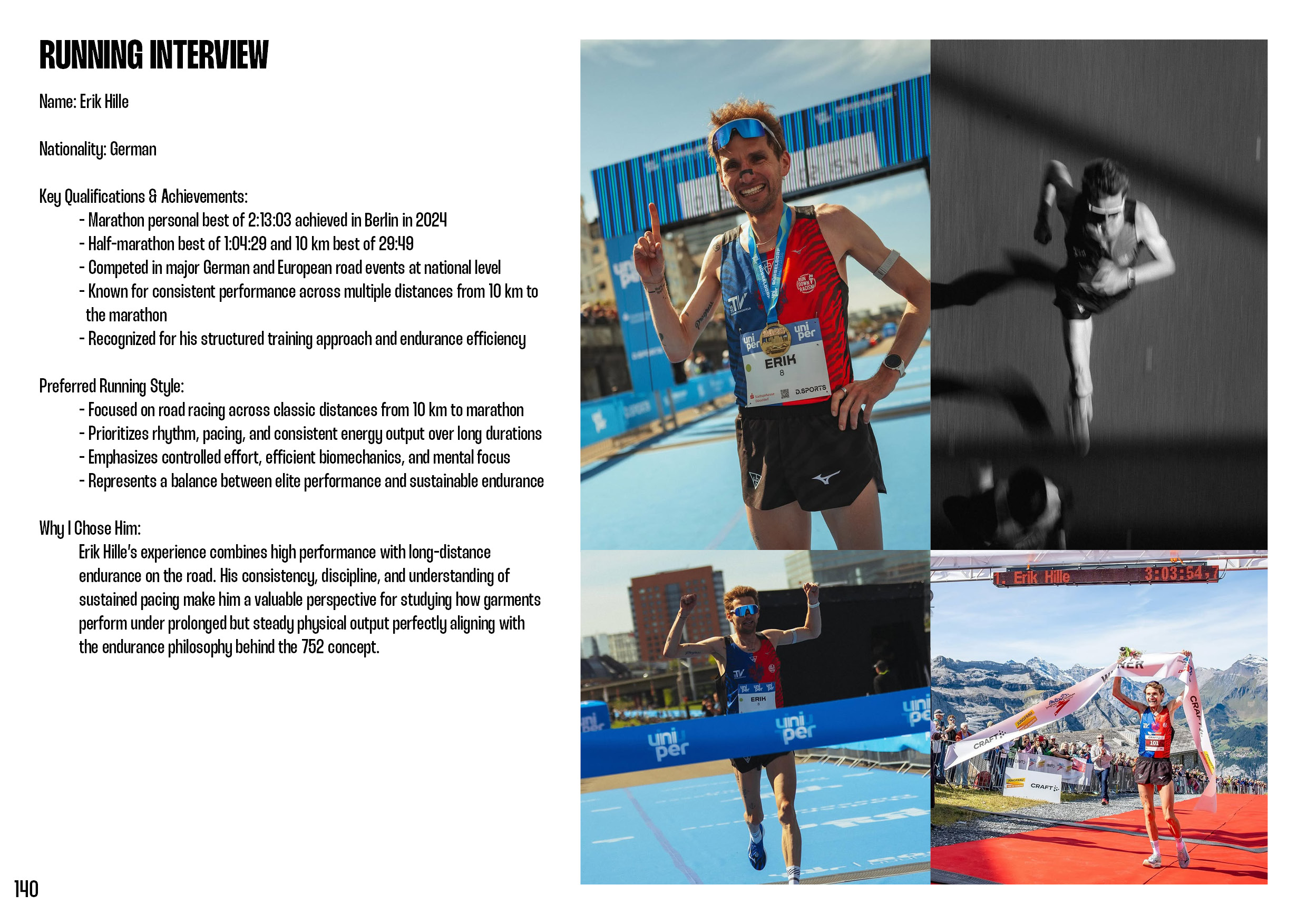

Running interview Running interview Running interview Running interview
Cycling
B AE Series — Aero Jersey & Bibs

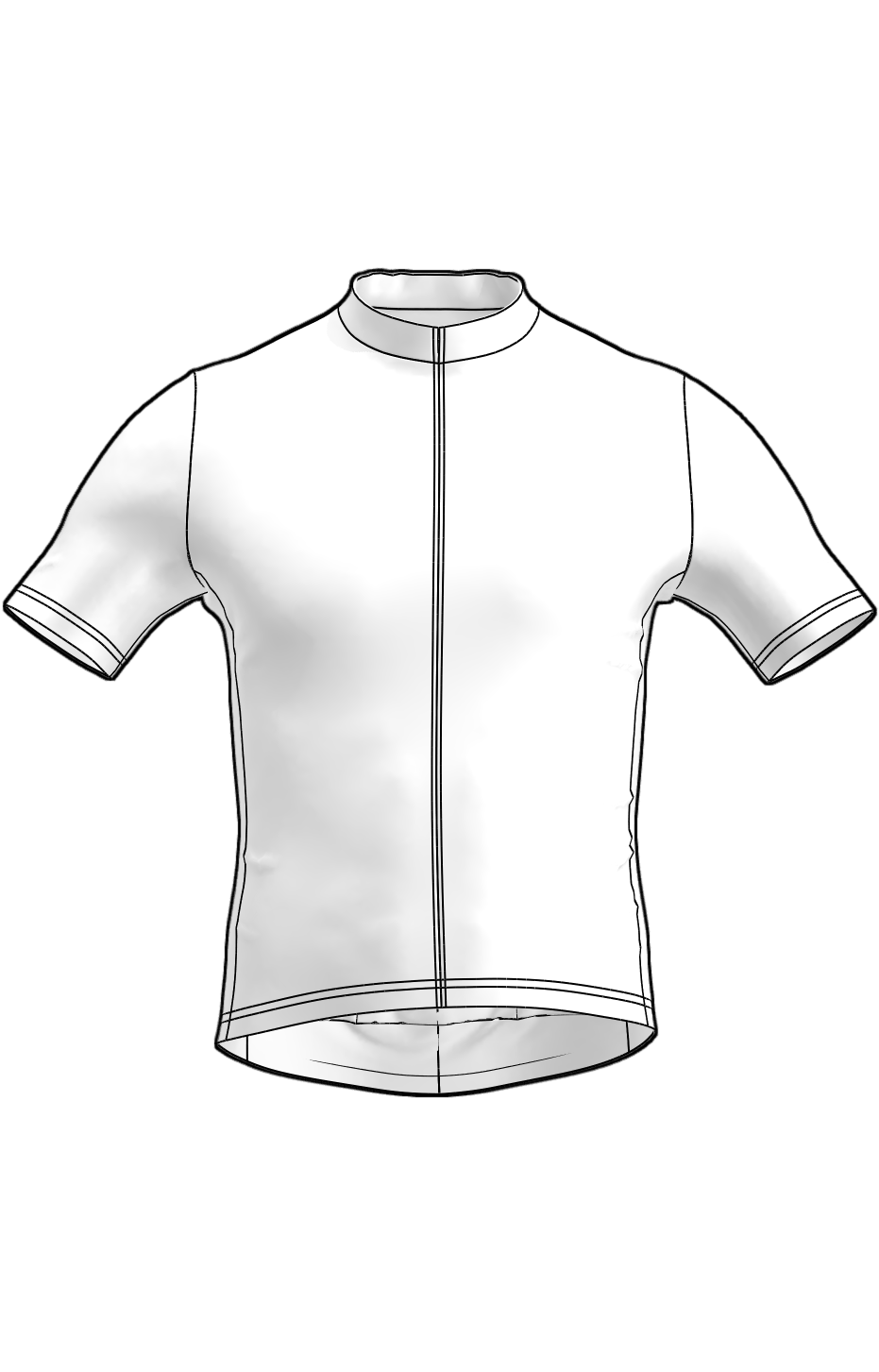

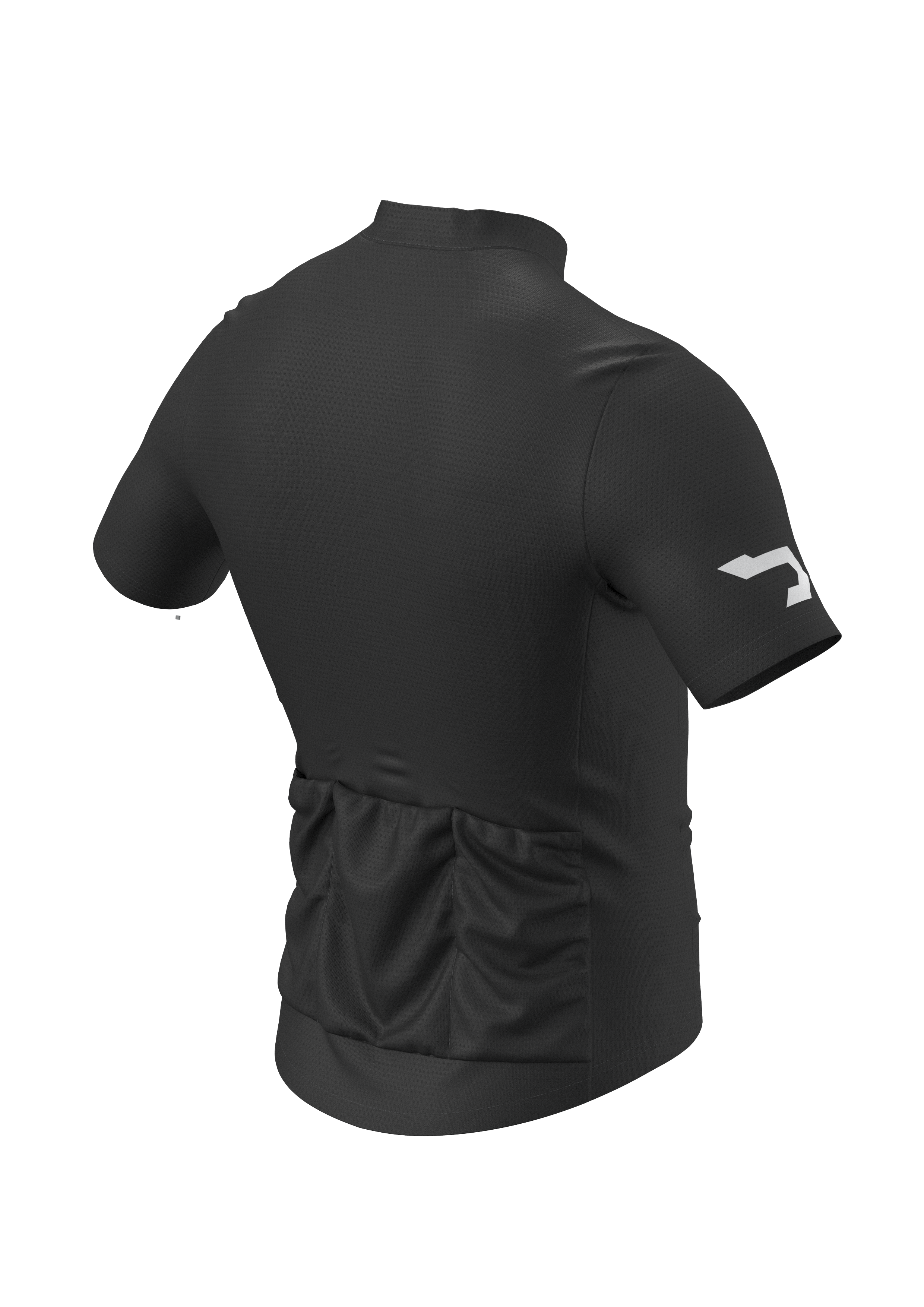

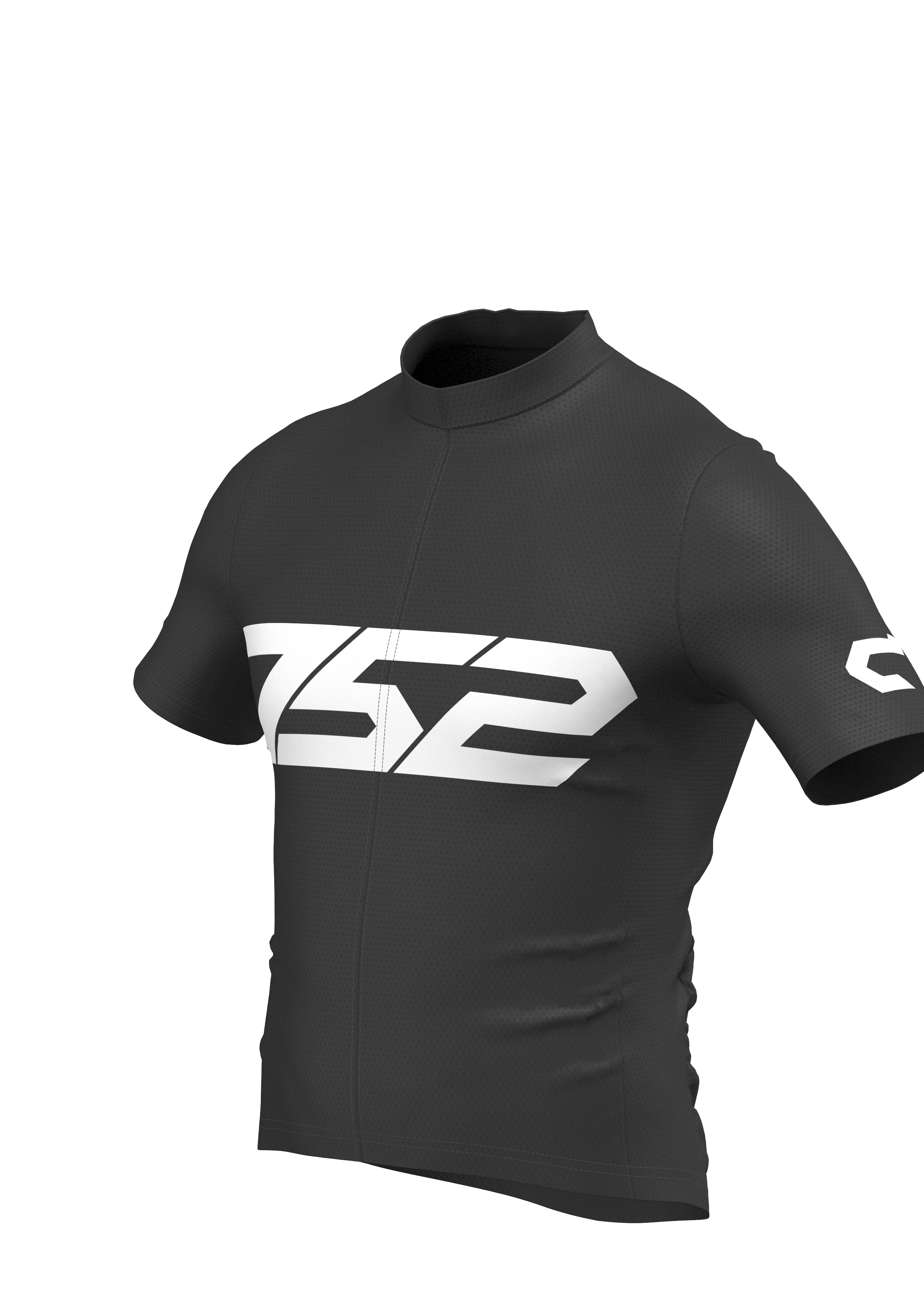

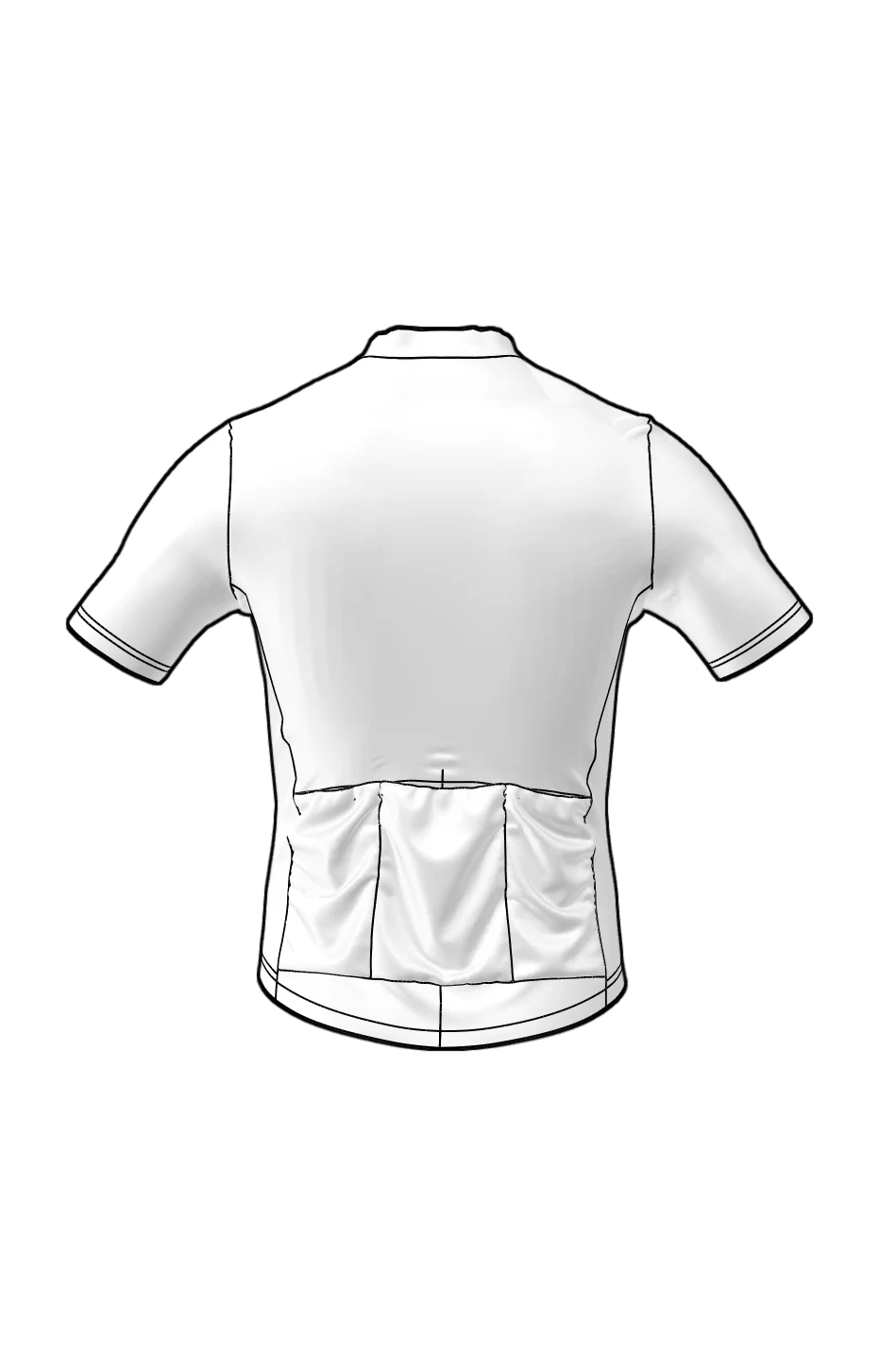

B AE 03 BJ
Bike Jersey
White Render
Coloured
Skintight aero cut · 3 back pockets

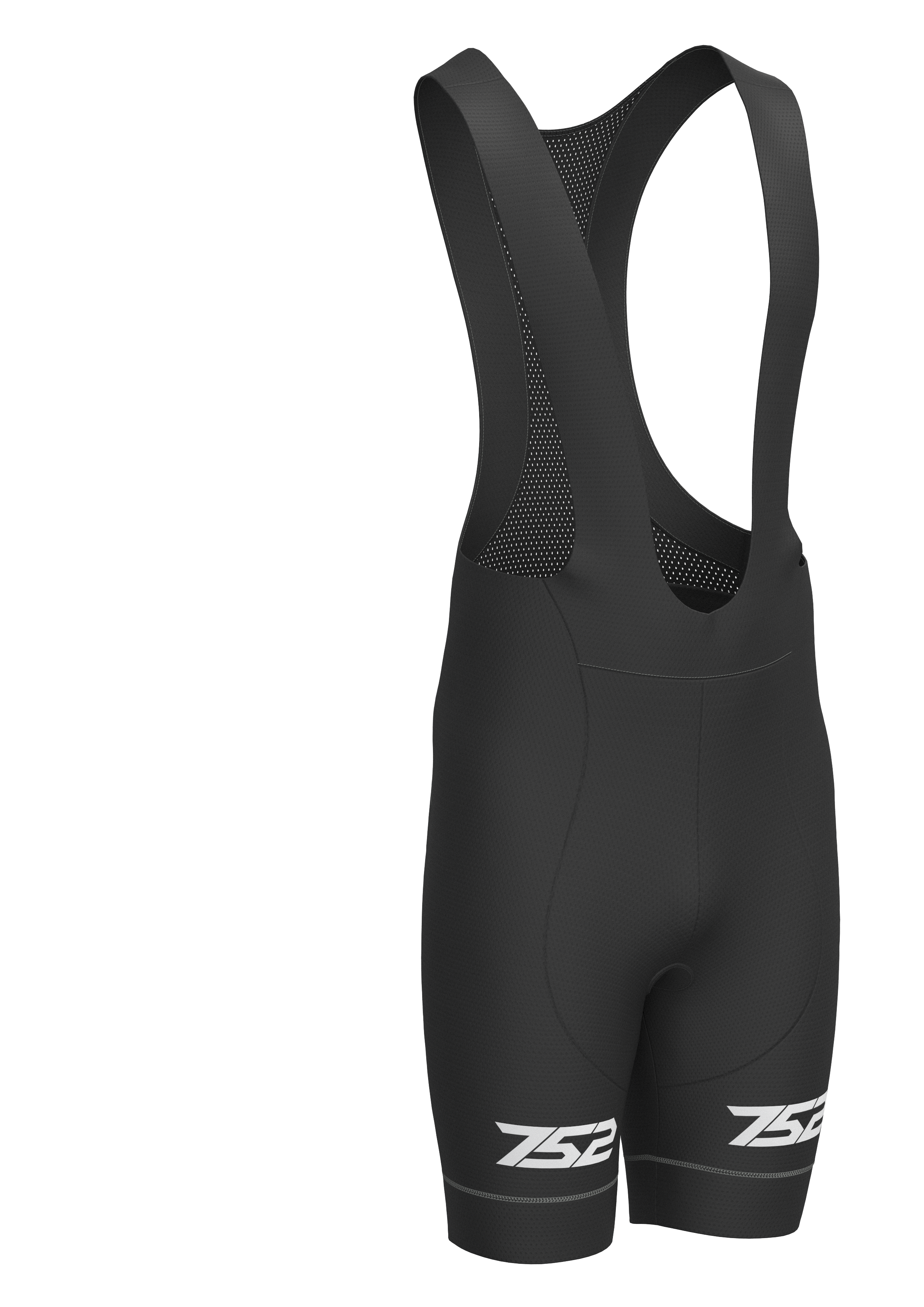

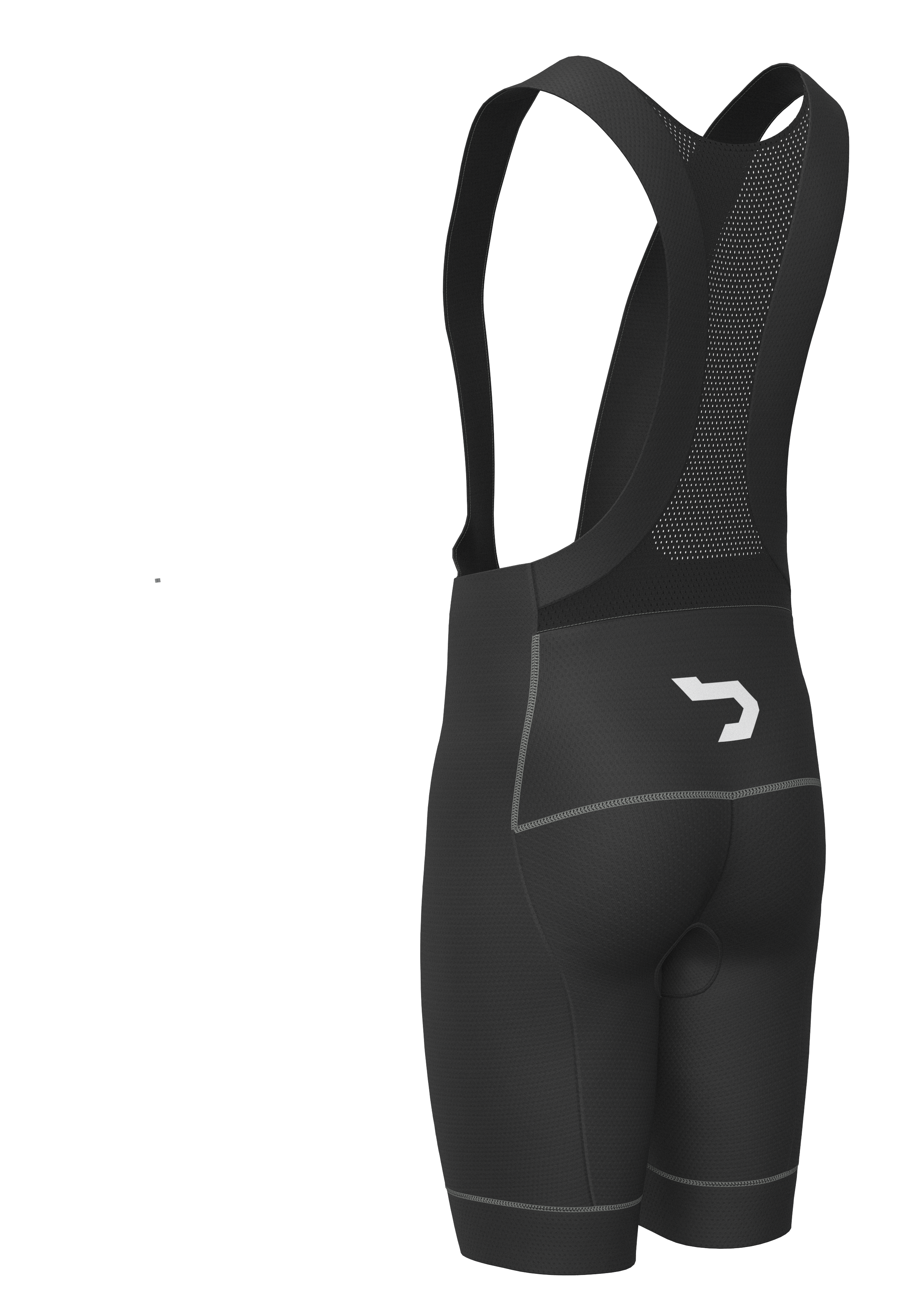

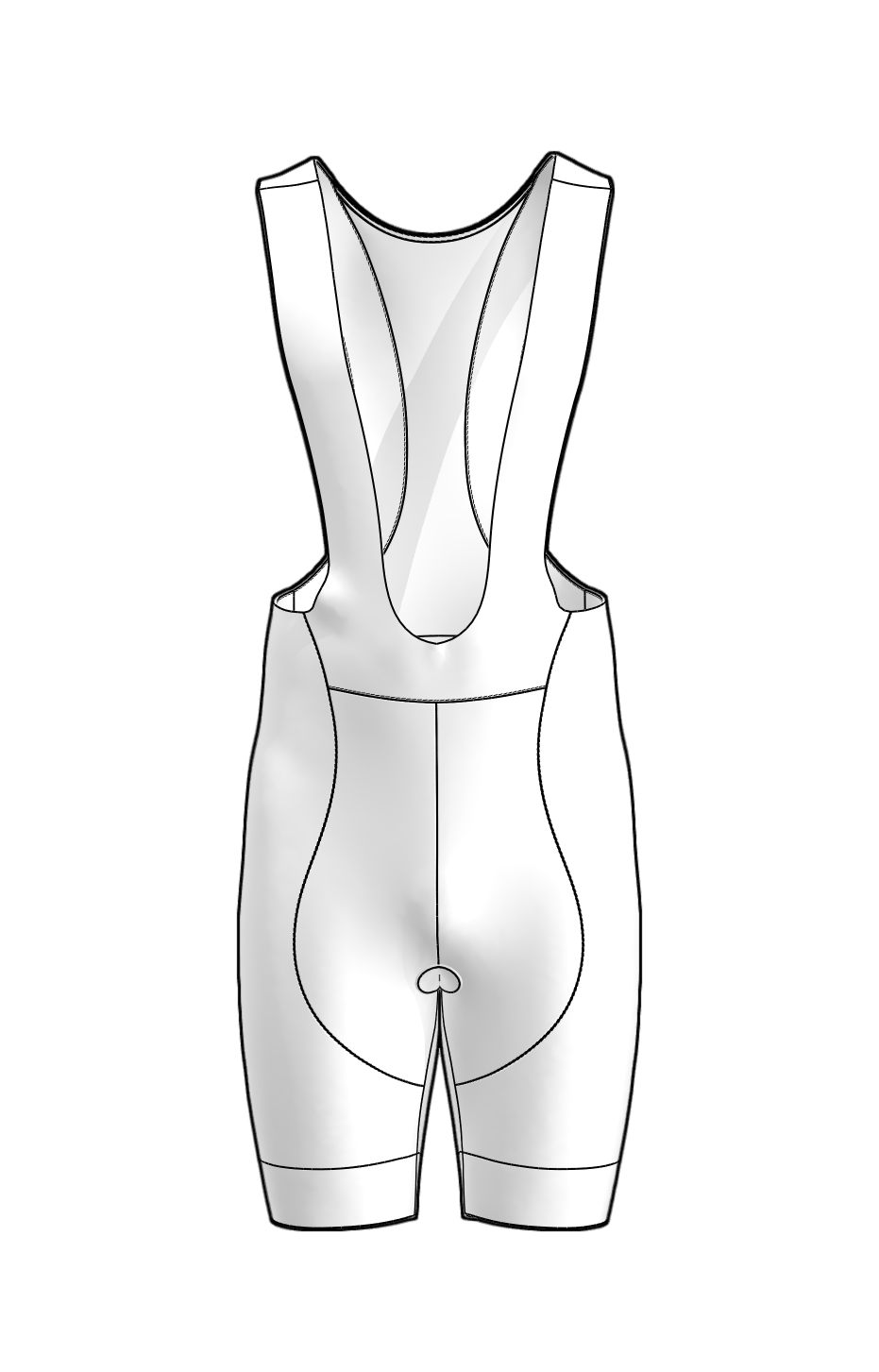

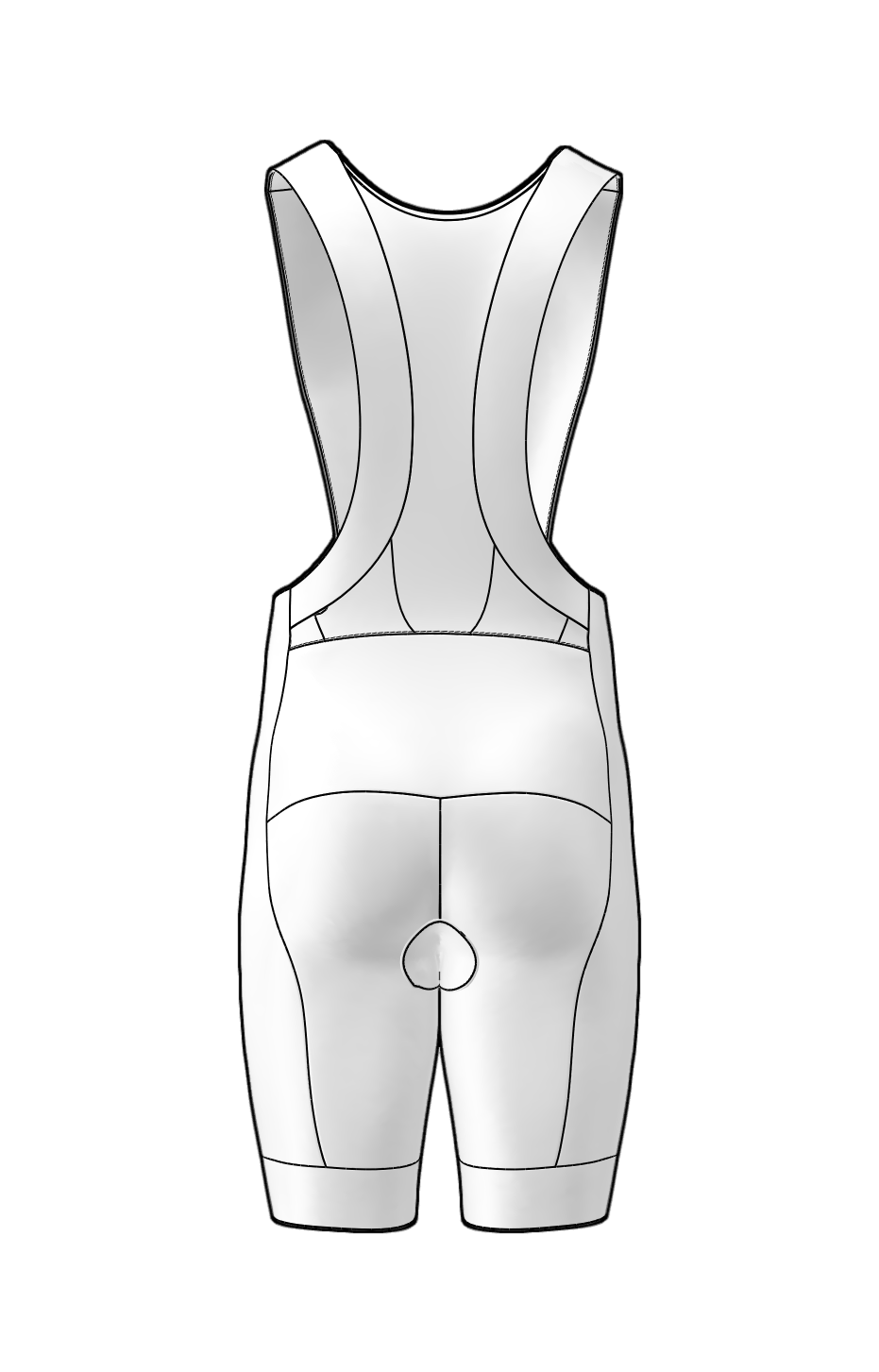

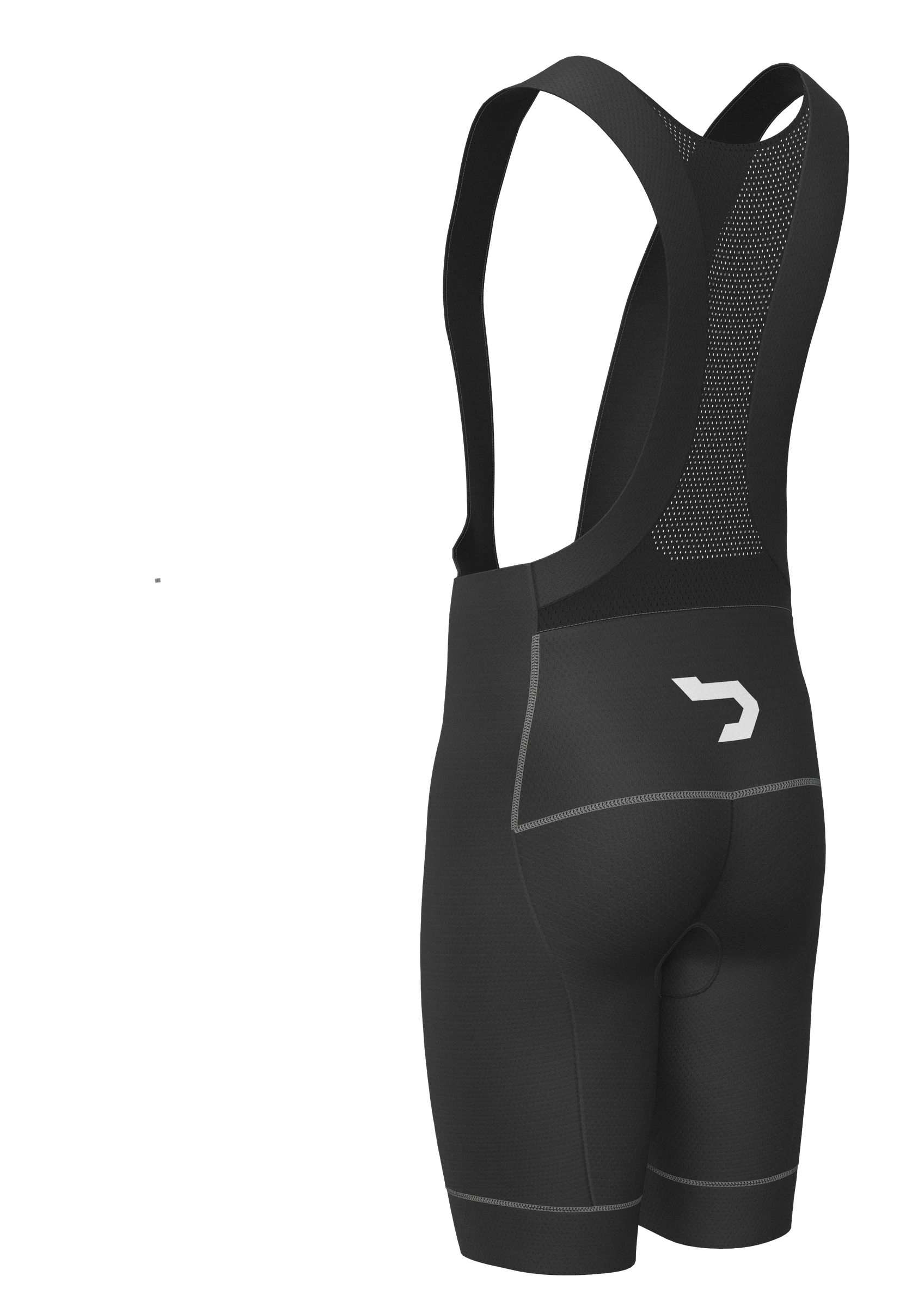

B AE 02 BB
Bike Bibs
White Render
Coloured
Crotch gusset · Thin pad · Aero seams

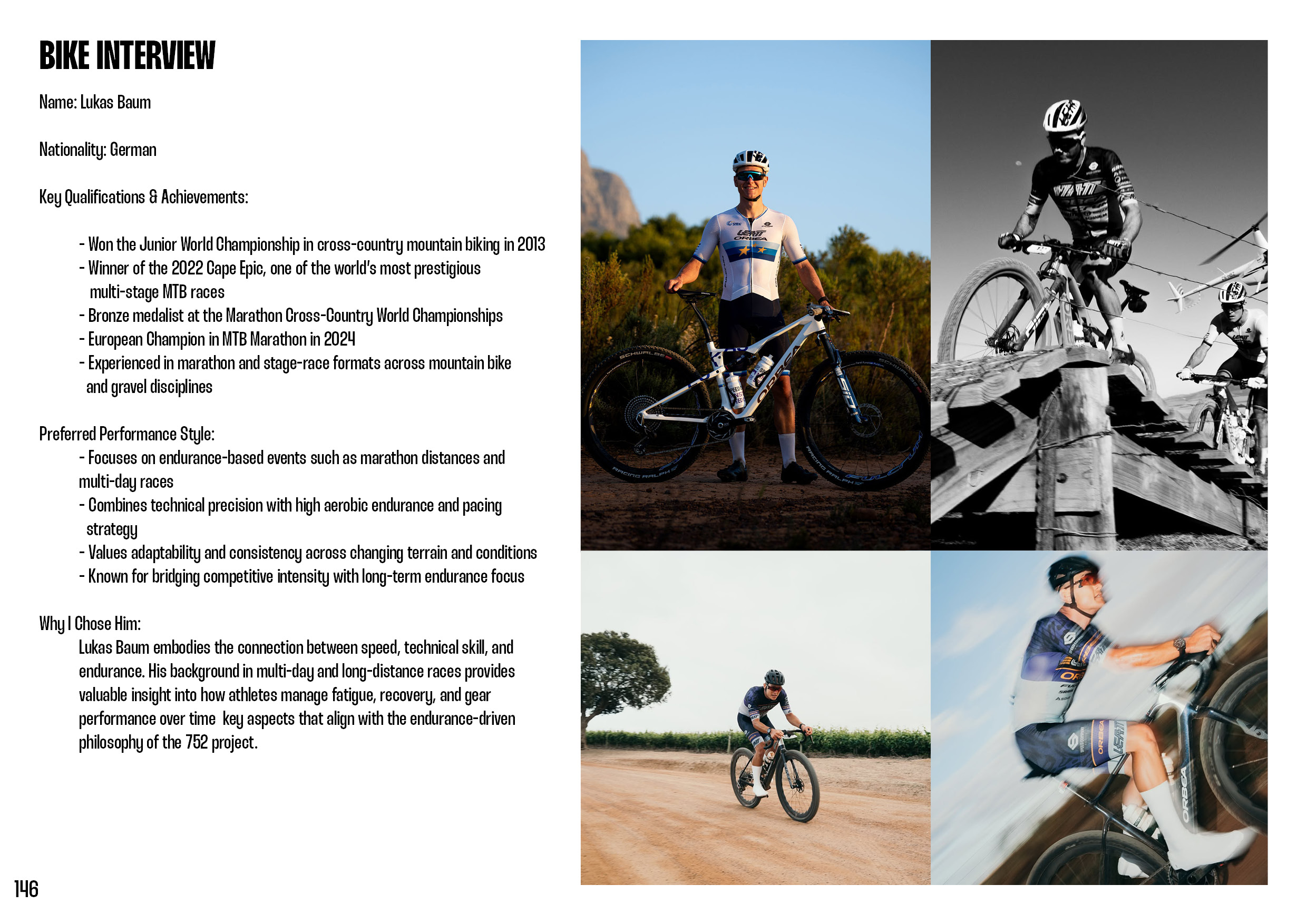

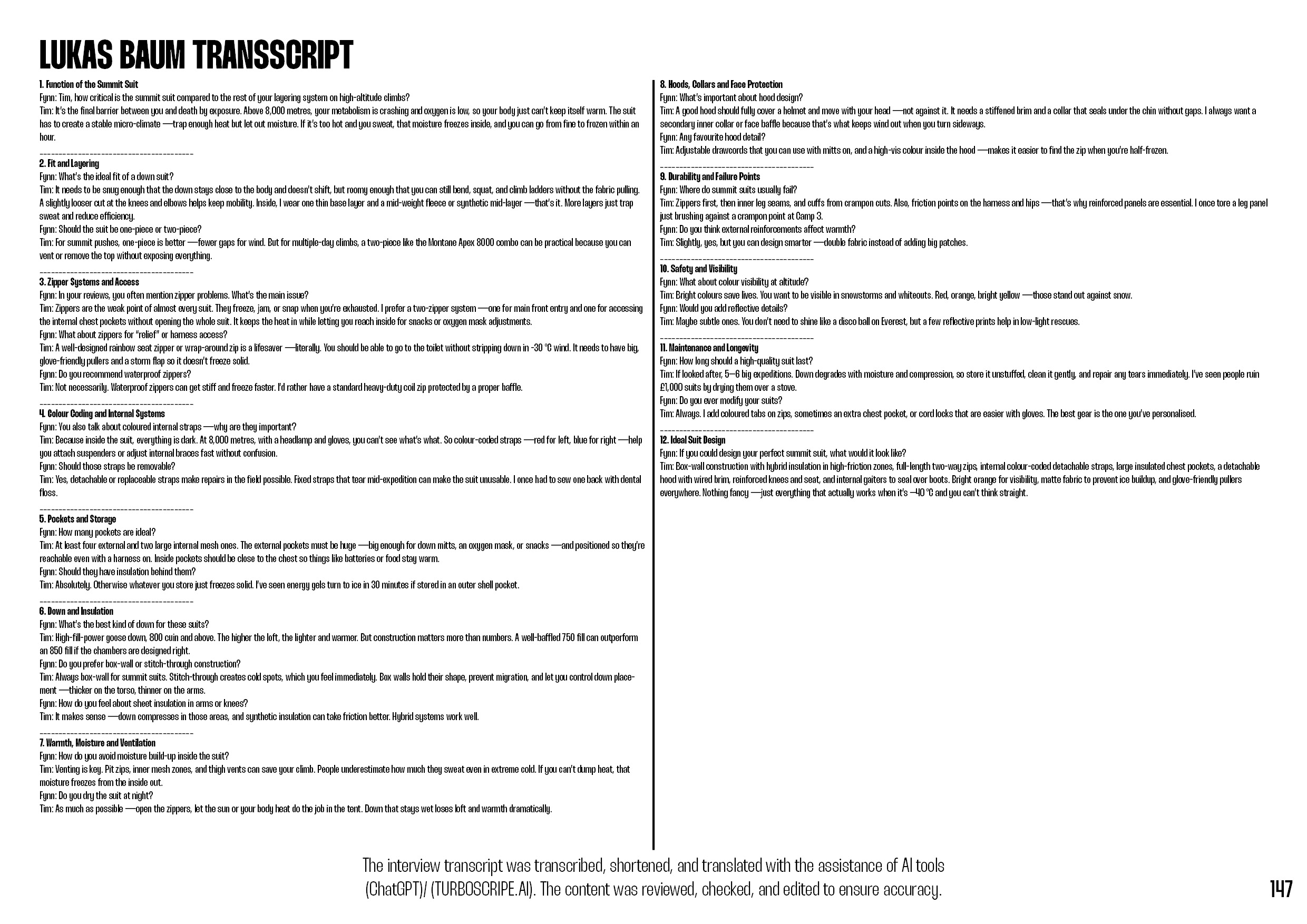

Cycling interview Cycling interview
